Mass Air Flow Meter: Inspection: Inspection

INSPECT MASS AIR FLOW METER

Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.

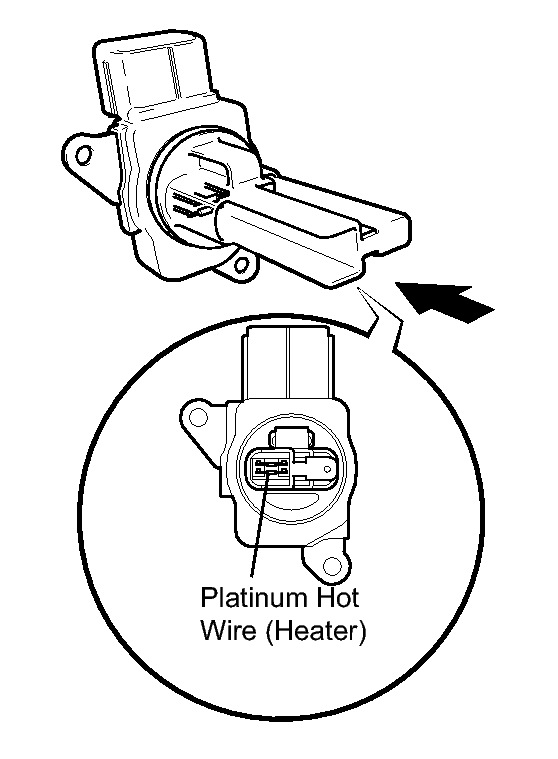

Fig 1: Identifying Platinum Hot Wire (Heater) Of Mass Airflow Meter
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK

There is no foreign material.

If the result is not as specified, replace the mass air flow meter.

Measure the resistance between the terminals.

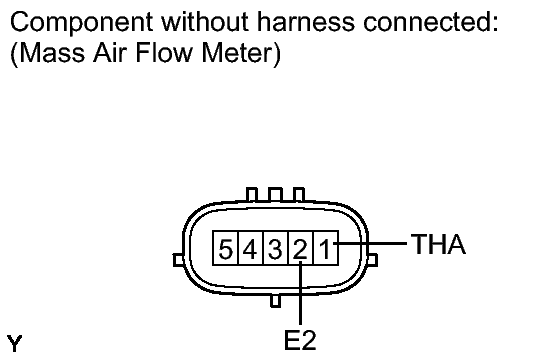

Fig 2: Identifying Terminals Of Mass Air Flow Meter Connector

GTY128227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Specified Resistance

Tester Connection	Condition	Condition
1 (THA) - 2 (E2)	-20°C (-4°F)	13.6 to 18.4 kΩ
	20°C (68°F)	2.21 to 2.69 kΩ
	60°C (140°F)	0.49 to 0.67 kΩ

If the result is not as specified, replace the mass air flow meter.
