Transmission Control Switch: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to REMOVAL - Step 4
  3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH  . Refer to REMOVAL - Step 5
  4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH  . Refer to REMOVAL - Step 6
  5. REMOVE CONSOLE PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 7
  6. REMOVE INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray)  . Refer to REMOVAL - Step 8
  7. REMOVE FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray)  . Refer to REMOVAL - Step 9
  8. REMOVE REAR ASH RECEPTACLE ASSEMBLY (w/ Ashtray)  . Refer to REMOVAL - Step 8
  9. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray)  . Refer to REMOVAL - Step 9
  10. REMOVE CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray)  . Refer to REMOVAL - Step 10
  11. REMOVE CONSOLE BOX  . Refer to REMOVAL - Step 11
  12. REMOVE NO. 2 CONSOLE BOX DUCT  . Refer to REMOVAL - Step 45
  13. REMOVE NO. 2 FLOOR UNDER COVER  . Refer to REMOVAL - Step 1
  14. REMOVE NO. 1 FLOOR UNDER COVER  . Refer to REMOVAL - Step 2
  15. REMOVE TAIL EXHAUST PIPE ASSEMBLY  . Refer to REMOVAL - Step 1
  16. REMOVE REAR NO. 1 FLOOR PANEL BRACE  . Refer to REMOVAL - Step 5
  17. REMOVE FRONT CENTER FLOOR BRACE  . Refer to REMOVAL - Step 6
  18. DISCONNECT HEATED OXYGEN SENSOR  . Refer to REMOVAL - Step 7
  19. REMOVE FRONT EXHAUST PIPE ASSEMBLY  . Refer to REMOVAL - Step 8
  20. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR  . Refer to REMOVAL - Step 8
  21. REMOVE FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY  See step  21
  22. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY  See step  22
  23. REMOVE TRANSMISSION CONTROL SWITCH
    1. Remove the transmission control switch connector from the floor shift assembly.

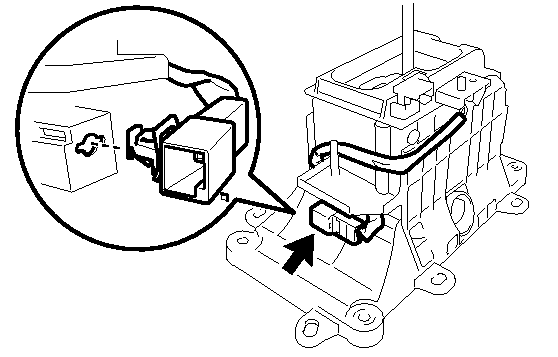

      Fig 1: Locating Transmission Control Switch Connector
      GTY123481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the shift lever support and lock pin from the floor shift assembly.

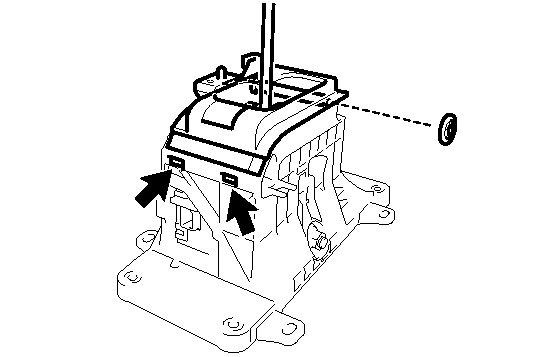

      Fig 2: Identifying Shift Lever Guide Housing And Floor Shift Assembly
      GTY141211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the shift lever guide housing from the floor shift assembly.
      NOTE:

      First remove the shift lever nut and lock pin, then disengage the 2 claws.

    4. Remove the transmission control switch from the shift lever guide housing.

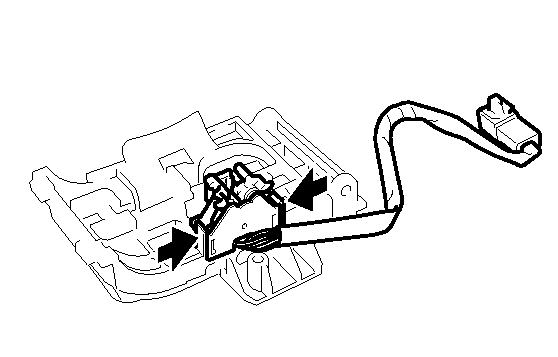

      Fig 3: Identifying Transmission Control Switch And Shift Lever Guide Housing
      GTY141359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
