Cruise Control Main Switch: Components: Illustration

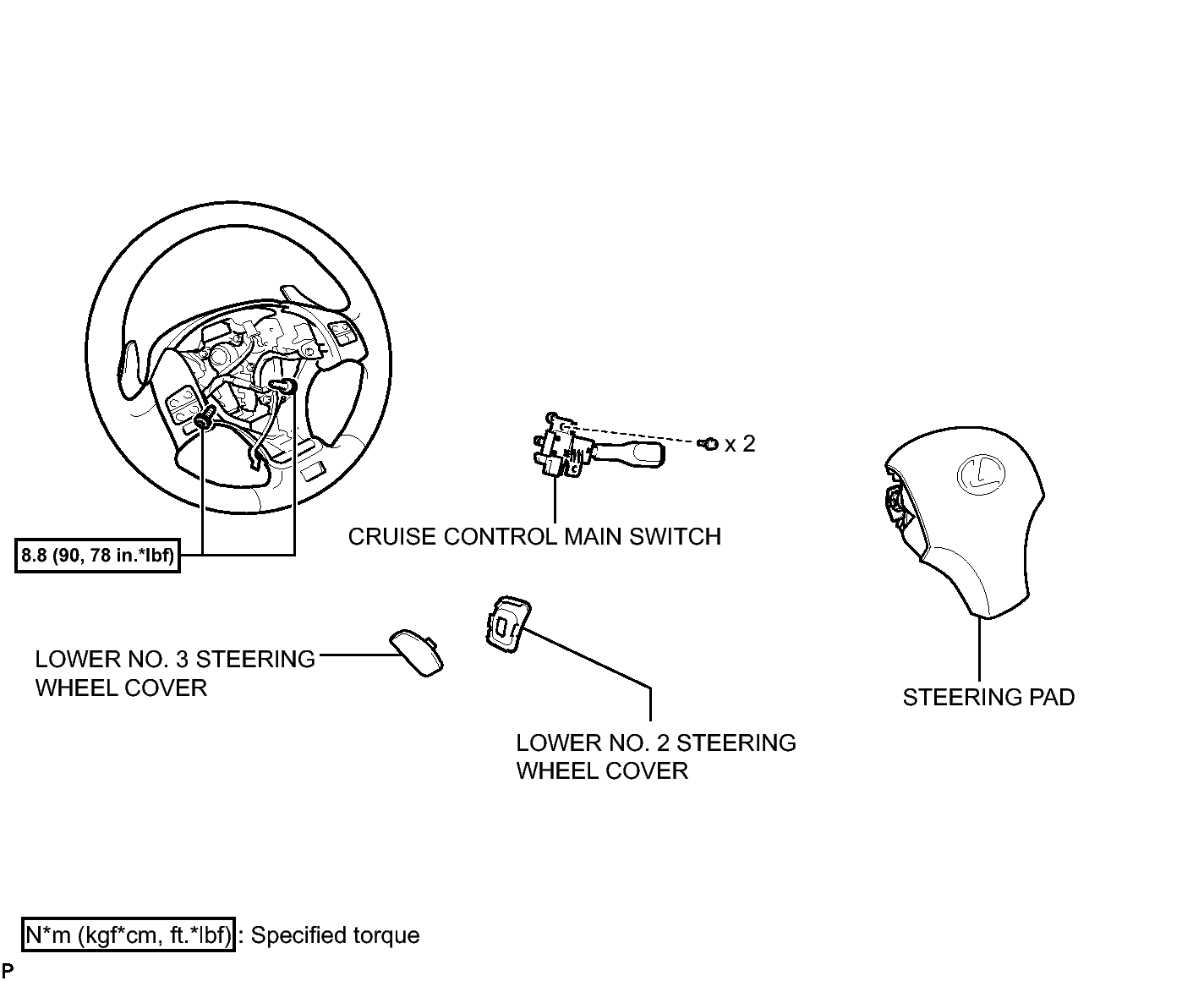

Fig 1: Identifying Cruise Control Main Switch Replacement Components With Torque Specifications
GTY154187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
