Cruise Control Main Switch: Installation: Installation

INSTALL CRUISE CONTROL MAIN SWITCH
1. Install the cruise control main switch with the 2 screws.

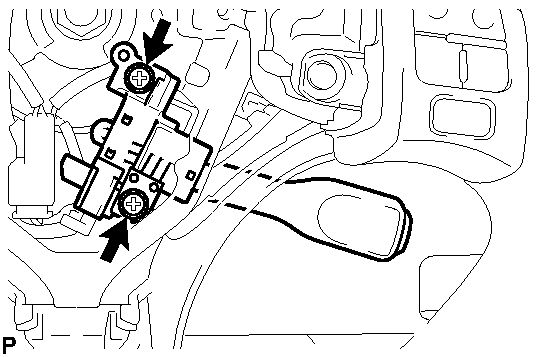

  Fig 1: Location of Cruise Control Main Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL LOWER NO. 3 STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
INSTALL LOWER NO. 2 STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT STEERING PAD . Refer to INSTALLATION - Step 5
INSPECT SRS WARNING LIGHT
Refer to INSTALLATION - Step 6
