Distance Control Ecu: Components: Illustration

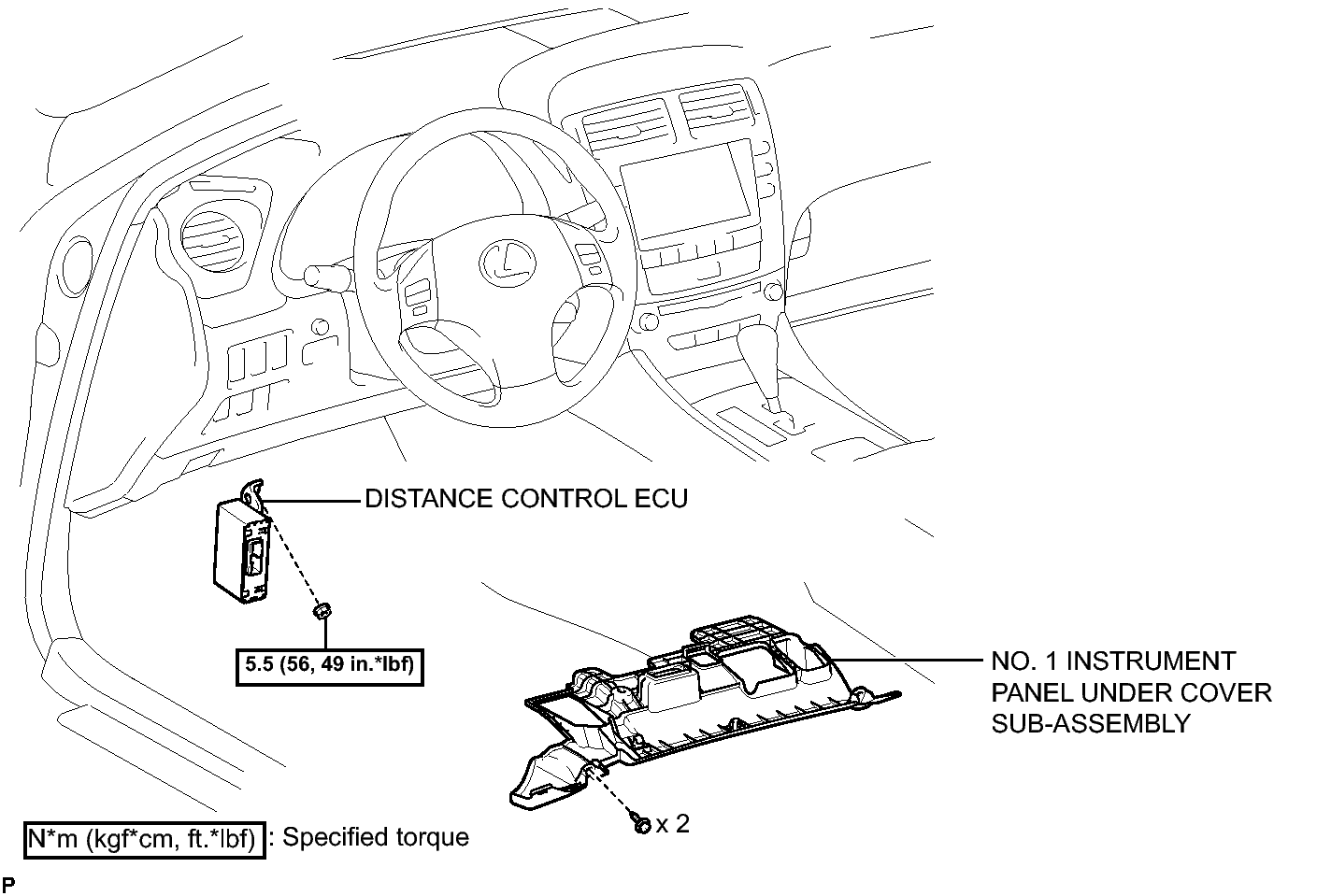

Fig 1: Identifying Distance Control ECU Replacement Components With Torque Specifications
GTY153878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
