Rear Power Window RH does not Operate with Rear Power Window Switch RH: Procedure

  1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH Side)
    1. Remove the power window regulator switch assembly (for rear RH side). Refer to REMOVAL .

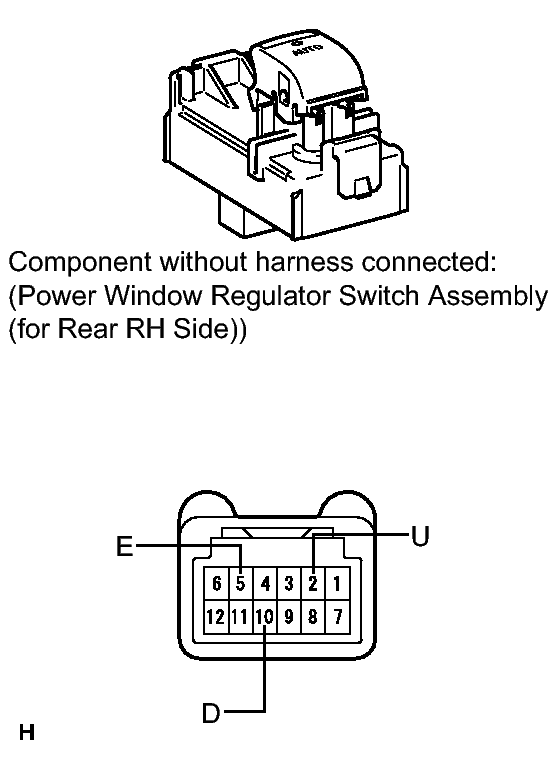

      Fig 1: Inspecting Power Window Regulator Switch Assembly (For Rear RH Side)
      GTY135748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Switch Condition Specified Condition
      2 (U) - 5 (E) Auto up or up position Below 1 Ω
      10 (D) - 5 (E) Auto down or down position Below 1 Ω

    NG → See step   6

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (REGULATOR MOTOR - BATTERY AND BODY GROUND)
    1. Measure the voltage according to the value(s) in the table below.

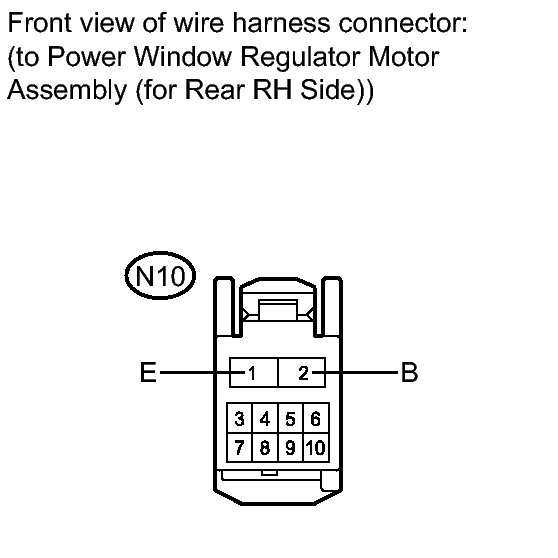

      Fig 2: Identifying Power Window Regulator Motor Assembly Connector Terminals
      GTY123074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard Voltage

      Tester Connection Condition Specified Condition
      N10-2 (B) - Body ground Always 11 to 14 V
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N10-1 (E) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (REAR RH SIDE SWITCH - REAR RH SIDE MOTOR AND BODY GROUND)
    1. Disconnect the power window regulator motor assembly (for rear RH side) connector.

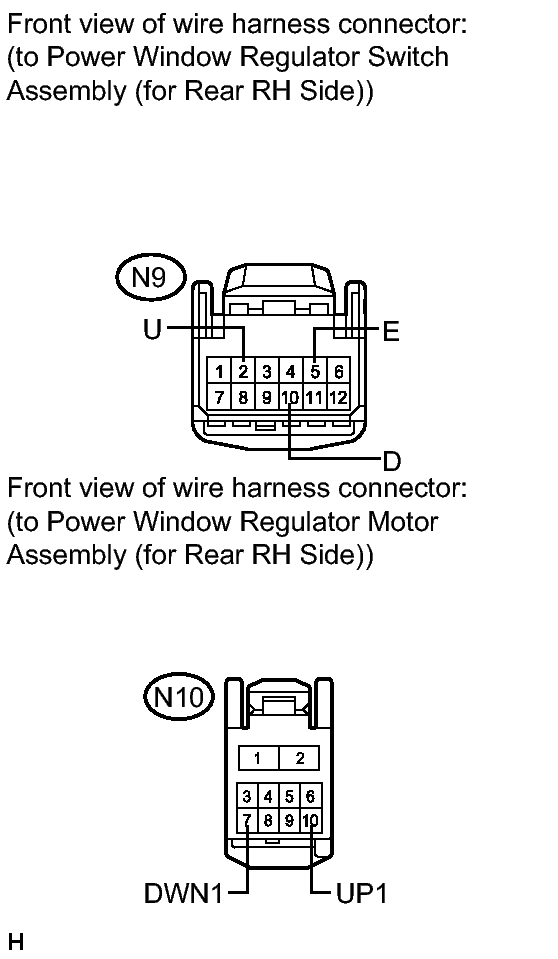

      Fig 3: Identifying Power Window Regulator Switch And Motor Connector Terminals
      GTY141122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      N9-2 (U) - N10-10 (UP1) Always Below 1 Ω
      N9-10 (D) - N10-7 (DWN1) Always Below 1 Ω
      N9-5 (E) - Body ground Always Below 1 Ω
      N9-2 (U) - Body ground Always 10 kΩ or higher
      N9-10 (D) - Body ground Always 10 kΩ or higher
      N10-10 (UP1) - Body ground Always 10 kΩ or higher
      N10-7 (DWN1) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  4. REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (for Rear RH Side)
    1. Replace the power window regulator motor assembly (for rear RH side). Refer to REMOVAL .

    NEXT: Go to next step

  5. CHECK MANUAL UP / DOWN FUNCTION
    1. Check that the rear RH side door power window moves when the manual up/down function of the power window regulator assembly (for rear RH side) is operated. Refer to OPERATION CHECK .

      OK

      Rear RH side manual up/down function is normal.

    NG → See step   7

    OK → END (POWER WINDOW REGULATOR MOTOR ASSEMBLY IS DEFECTIVE)

  6. REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH side). Refer to  REMOVAL
  7. REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY. Refer to  REMOVAL
