Remote Up / Down Function does not Operate: Wiring Diagram

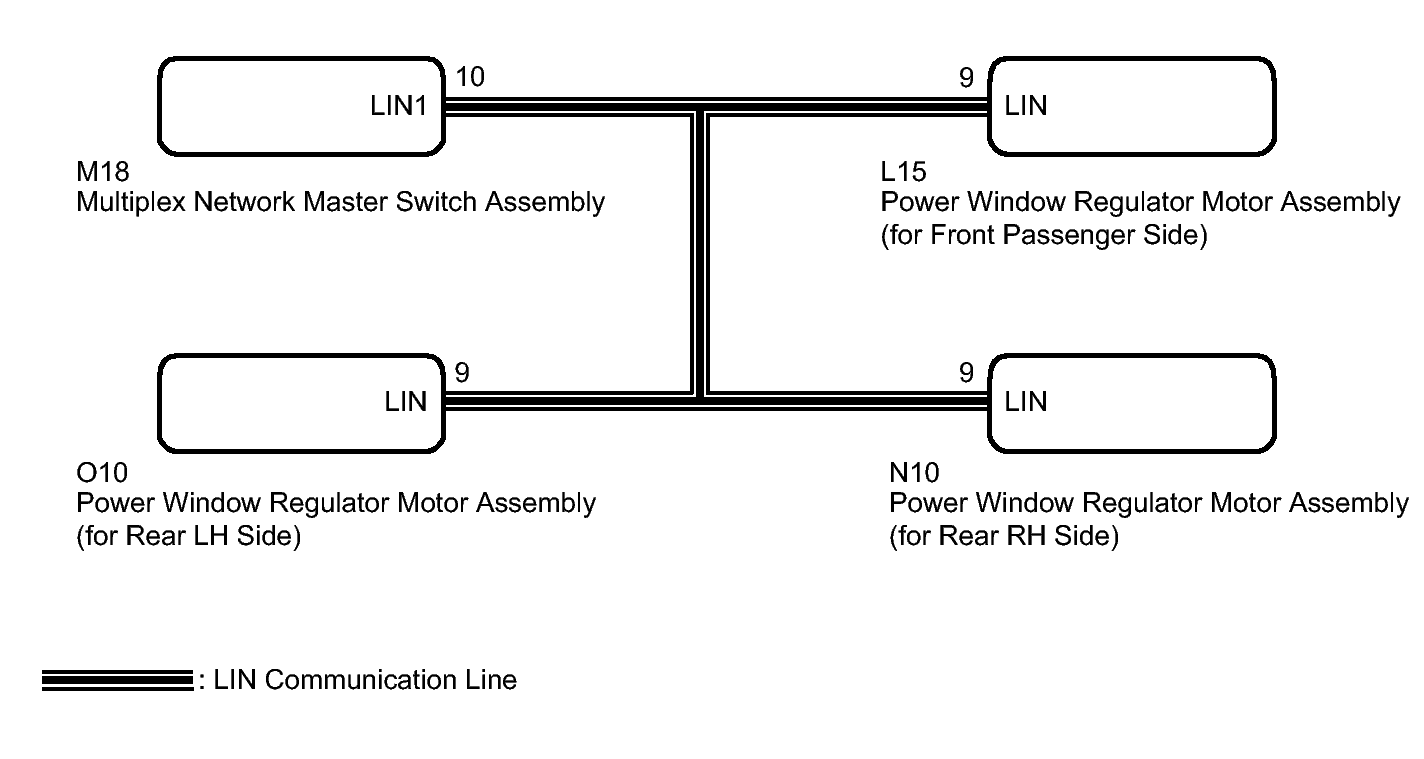

Fig 1: Multiplex Network Master Switch & Power Window Regulator Motors -- Wiring Diagram
GTY125030Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
