Brake Actuator: Components: Illustration

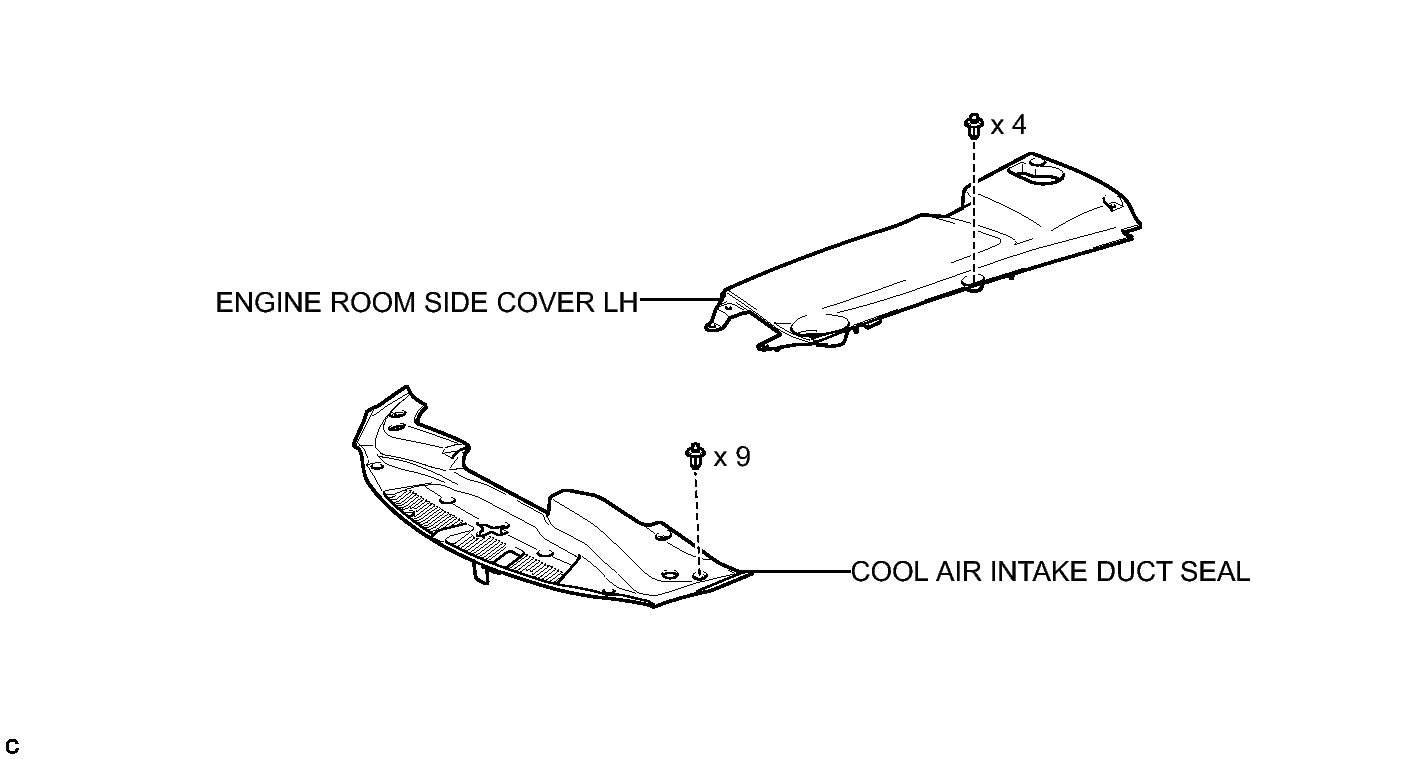

Fig 1: Identifying Brake Actuator Replacement Components (1 Of 4)
GTY279476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

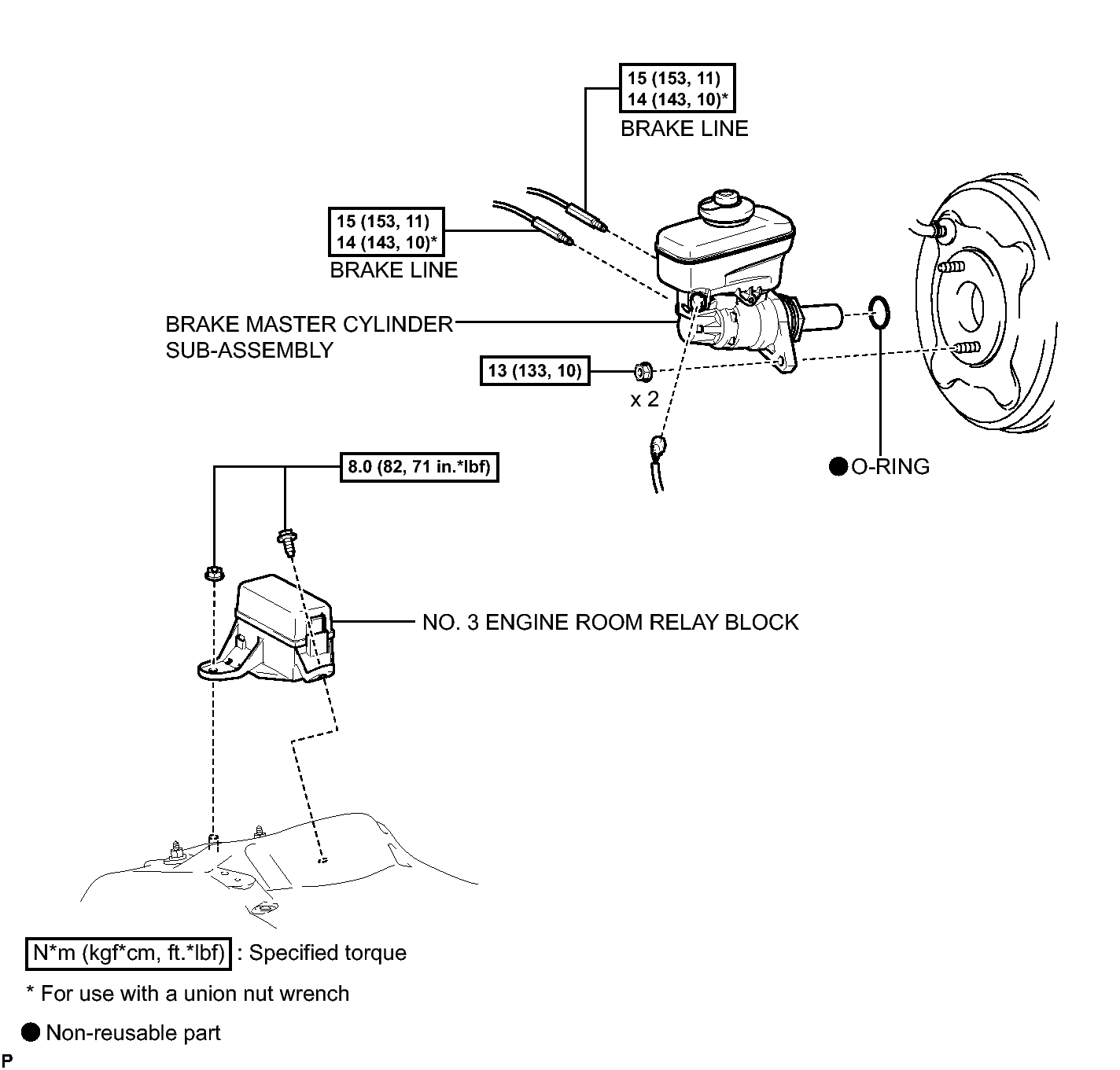

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2 Of 4)
GTY257644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

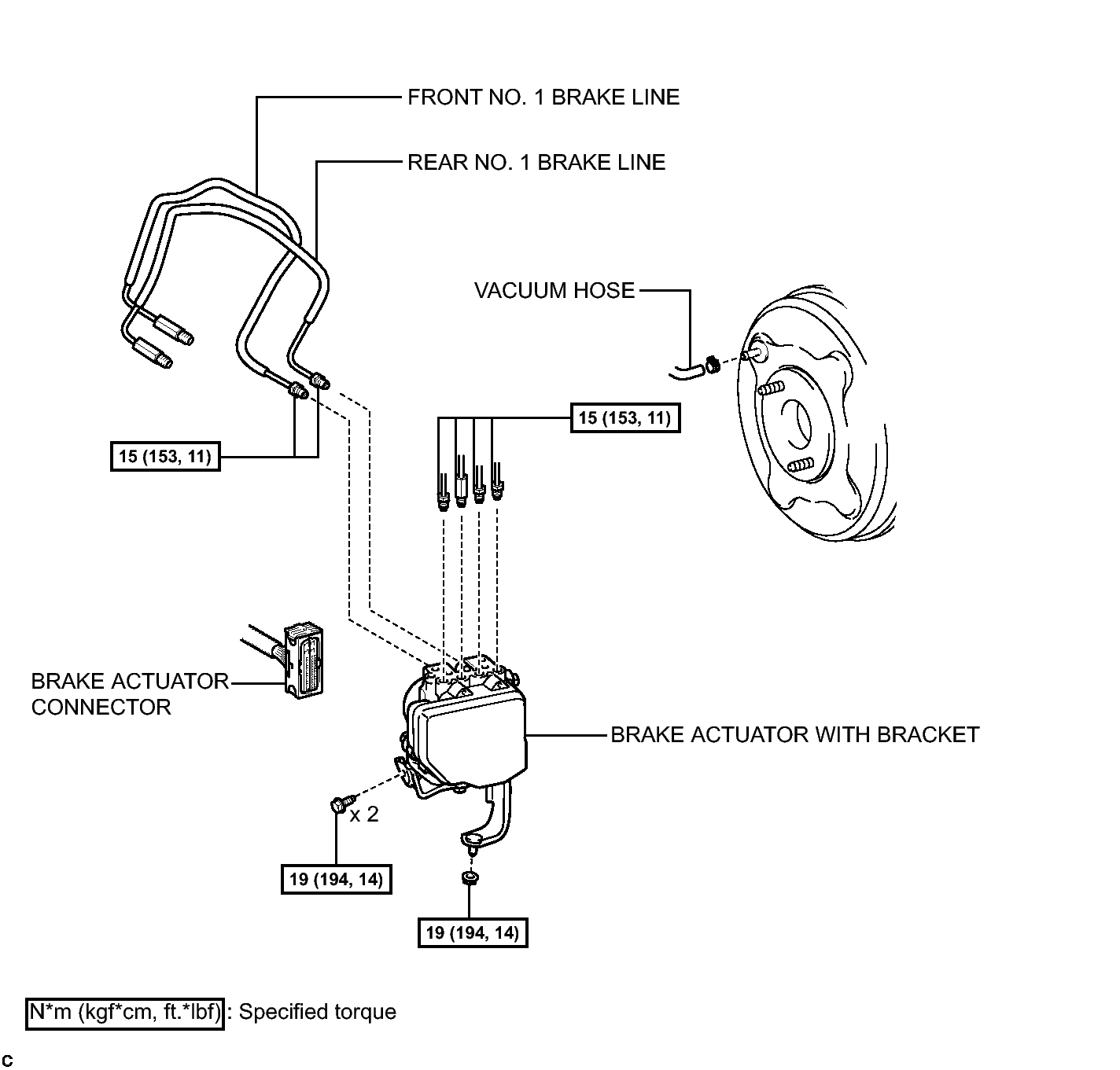

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (3 Of 4)
GTY285139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

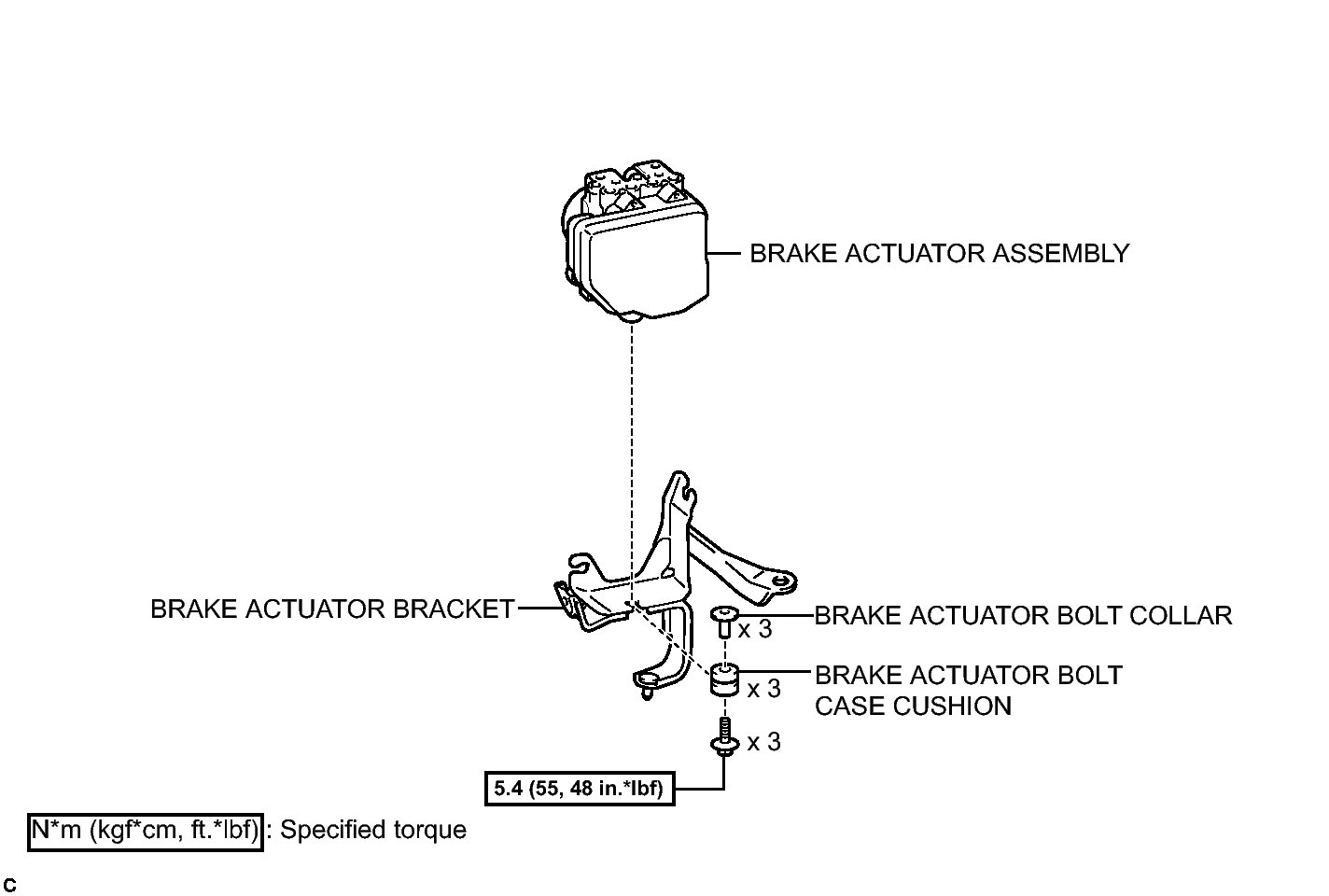

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (4 Of 4)
GTY260000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
