Engine Immobiliser System, Smart Access System with Push-Button Start, Starting, Steering Lock, Theft Deterrent and Wireless Door Lock Control: Notes

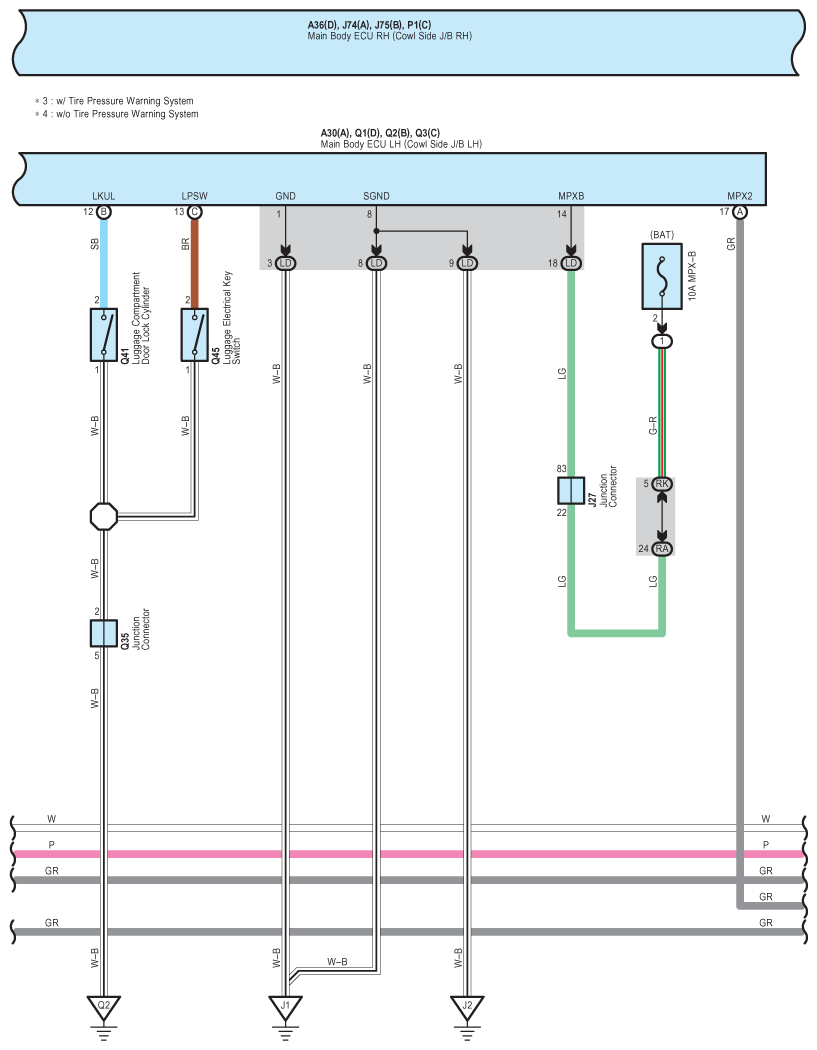

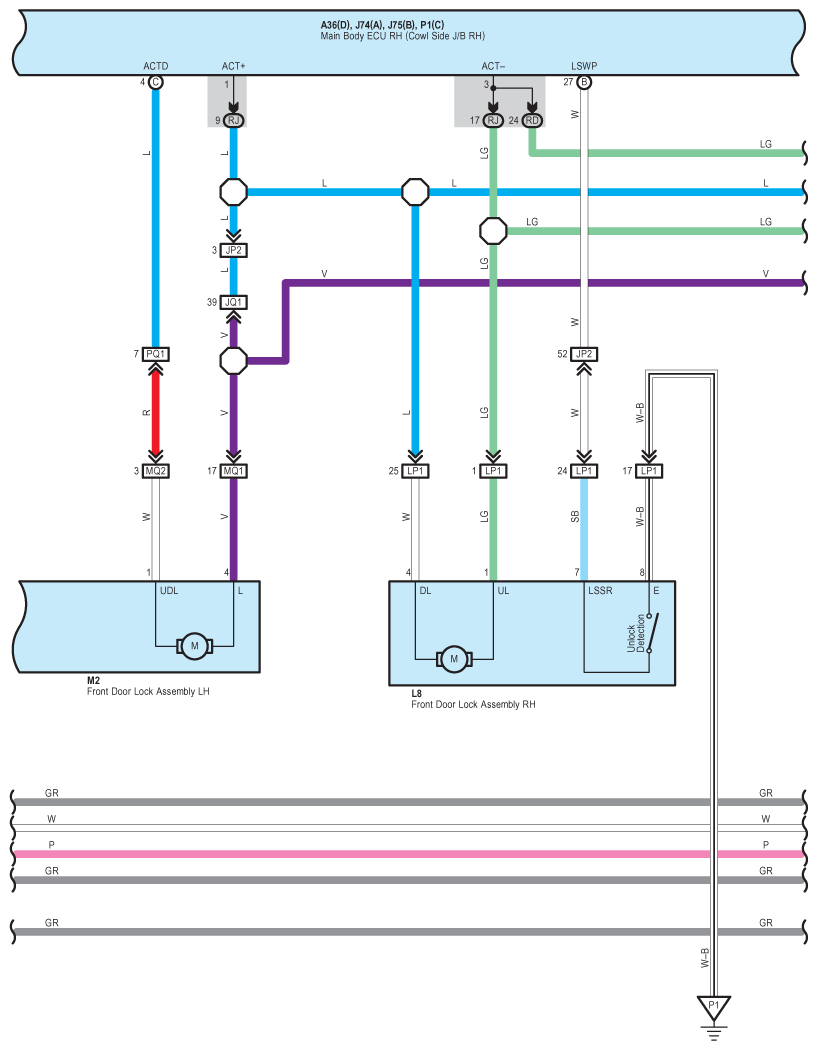

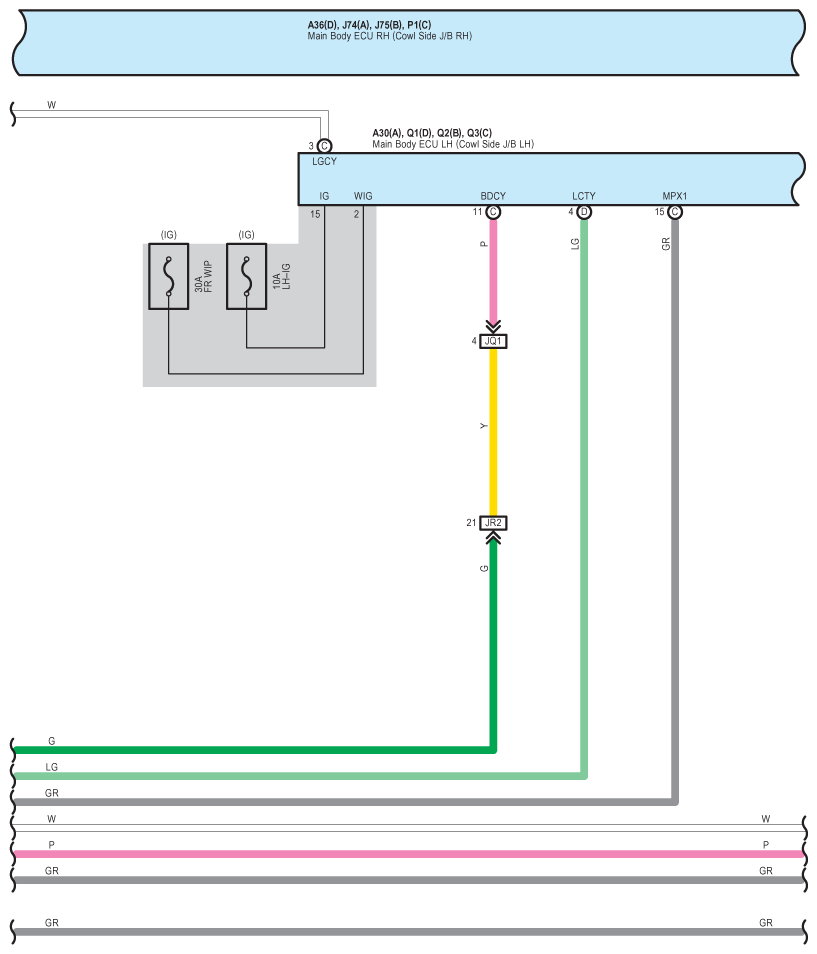

Fig 1: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (1 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

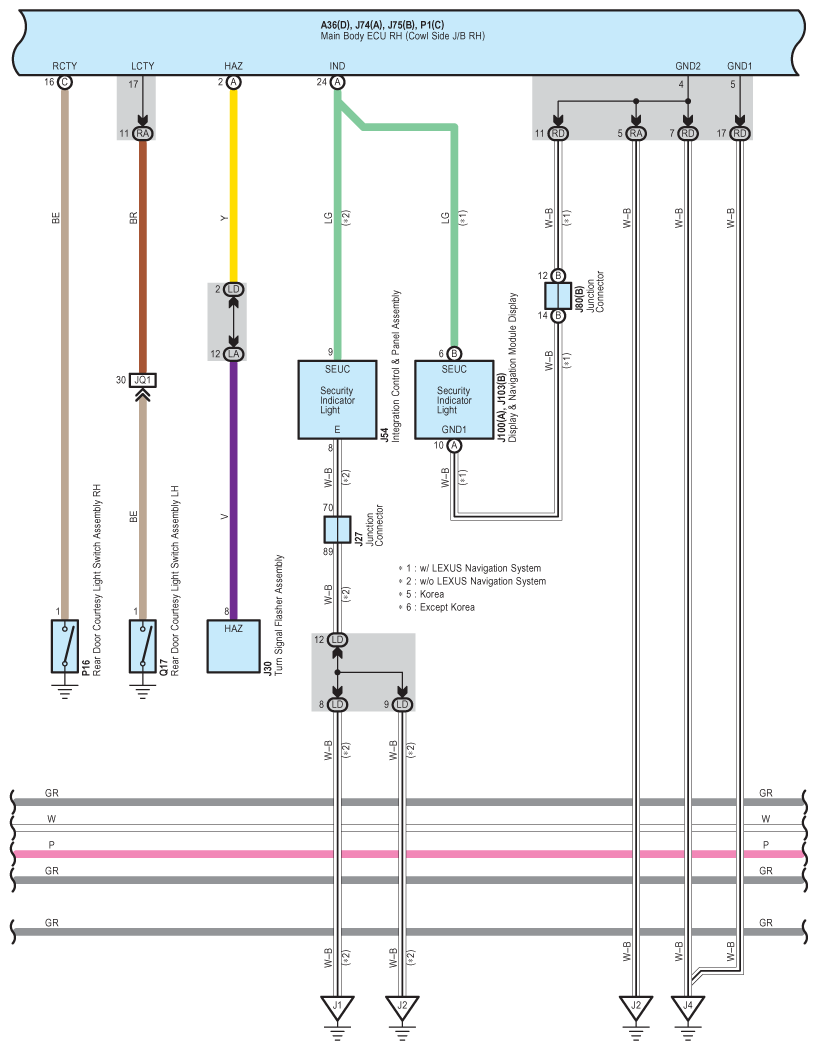

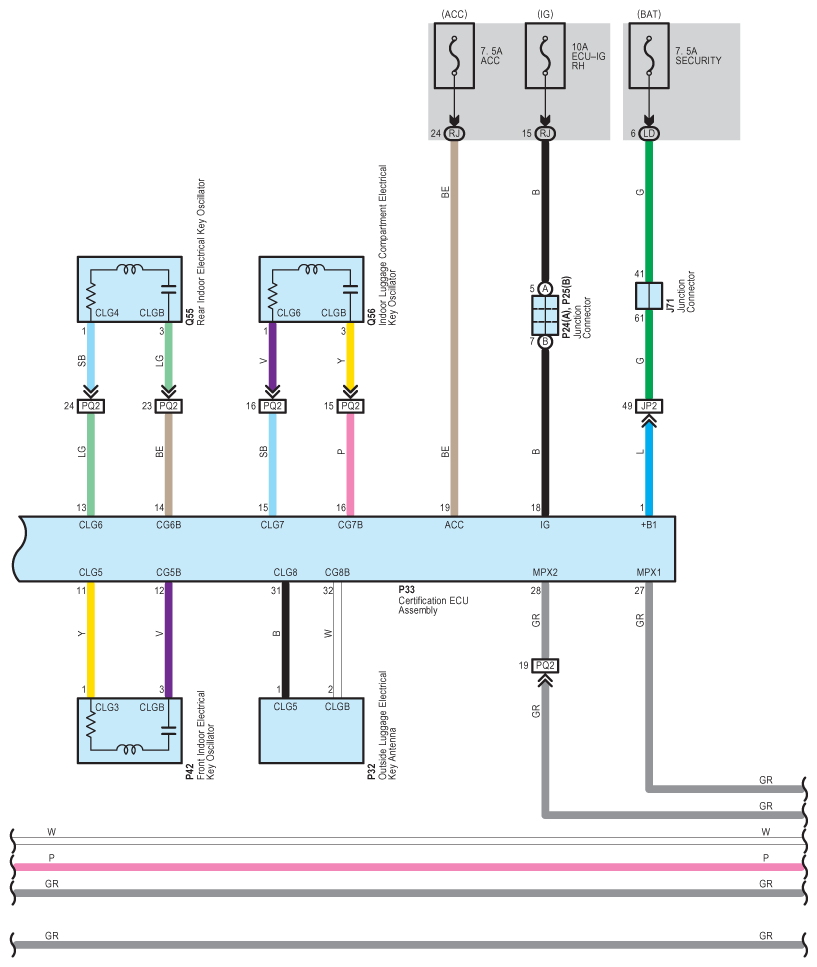

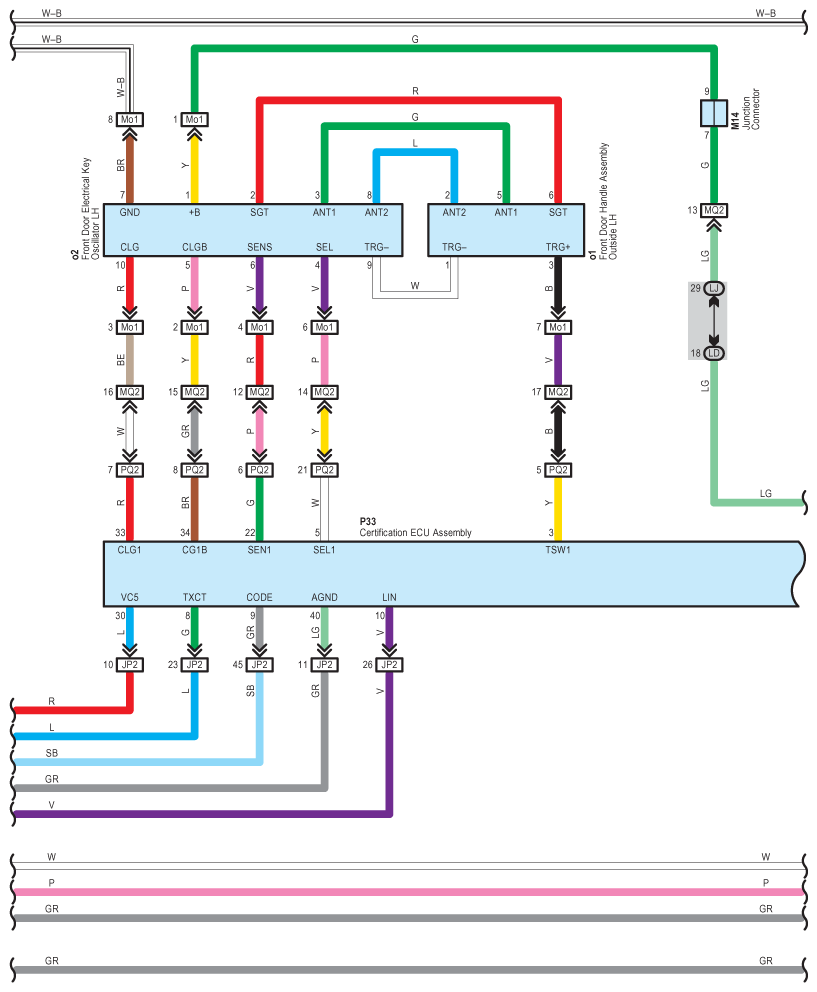

Fig 2: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (2 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

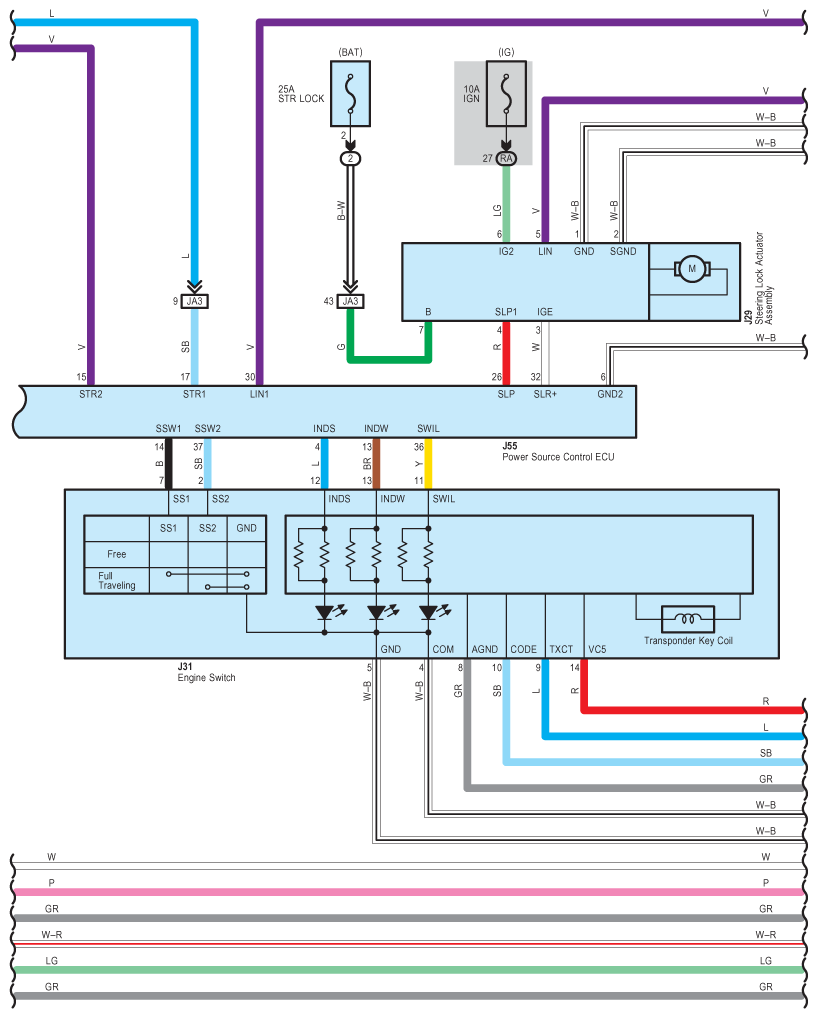

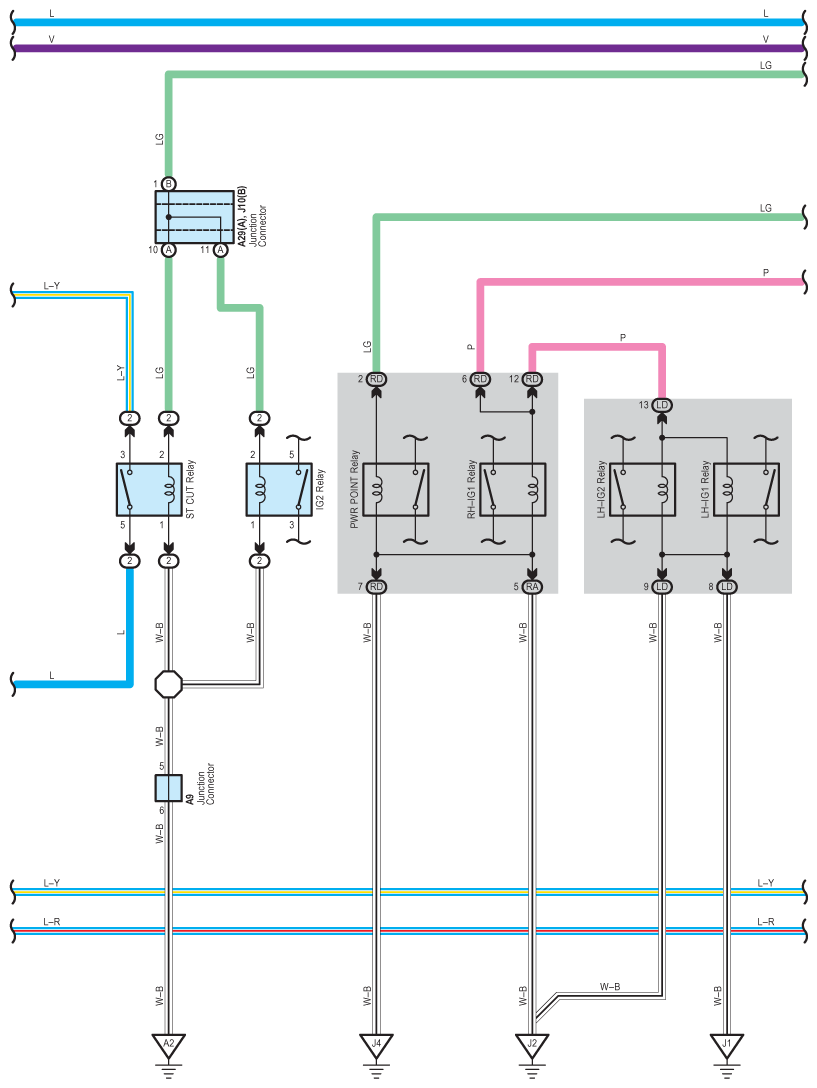

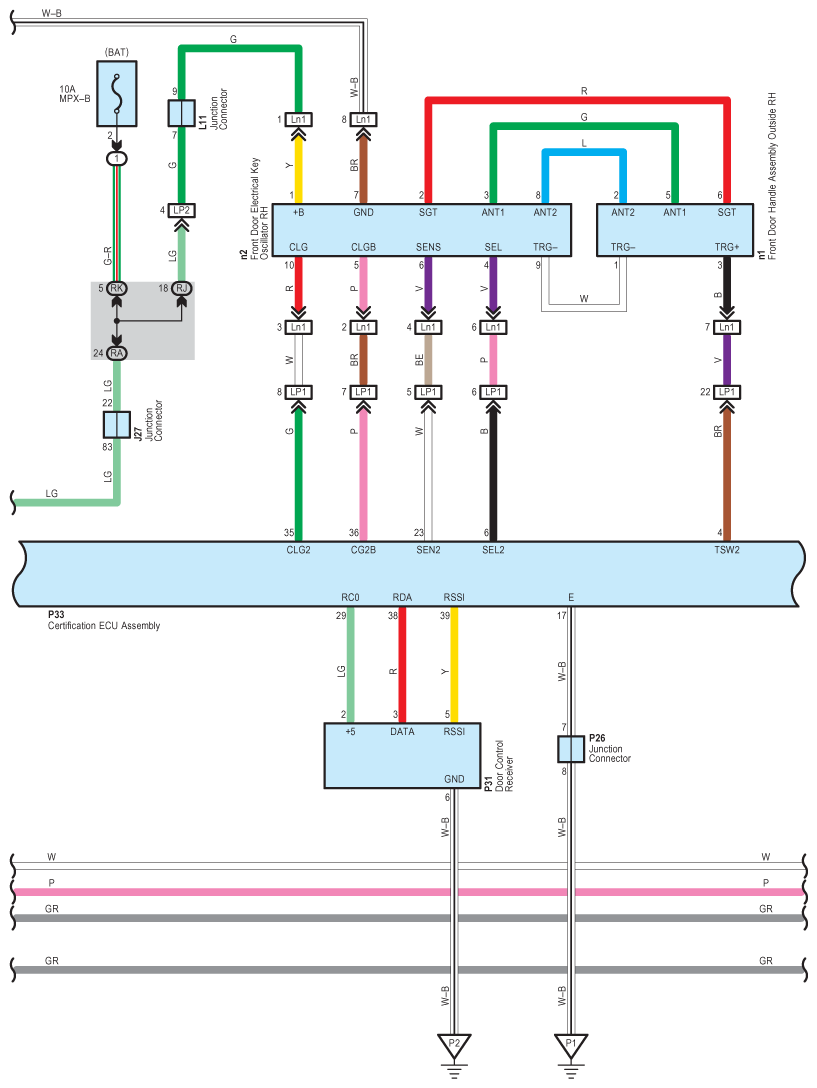

Fig 3: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (3 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

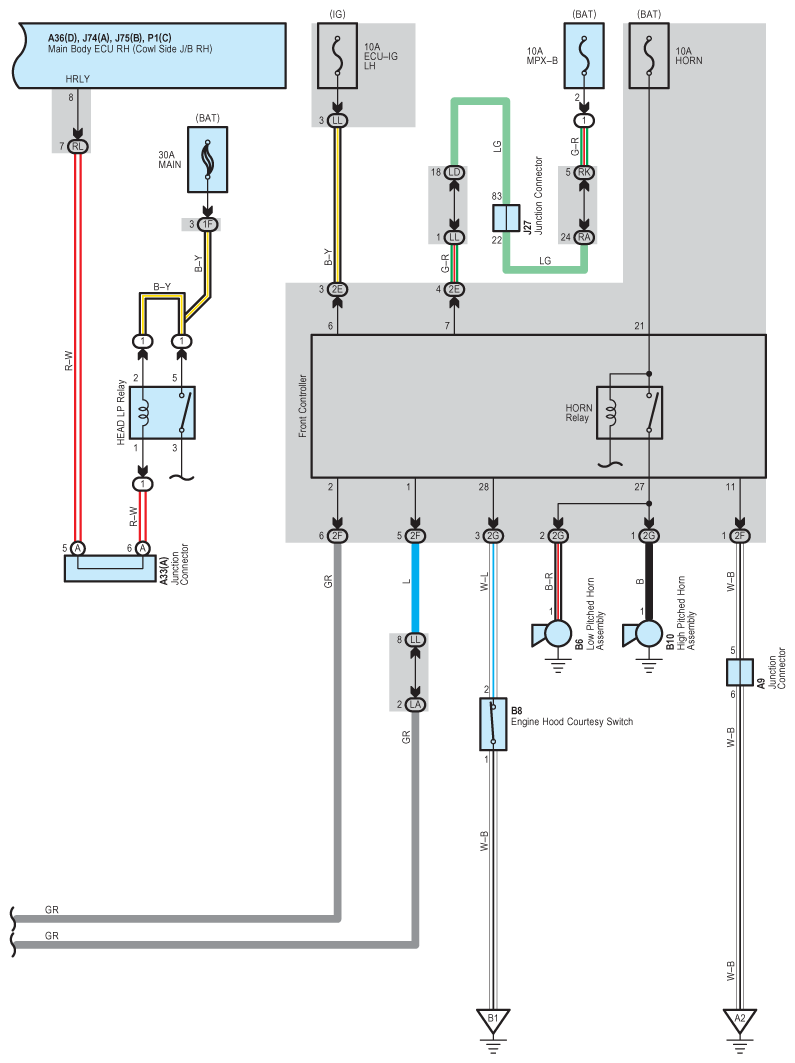

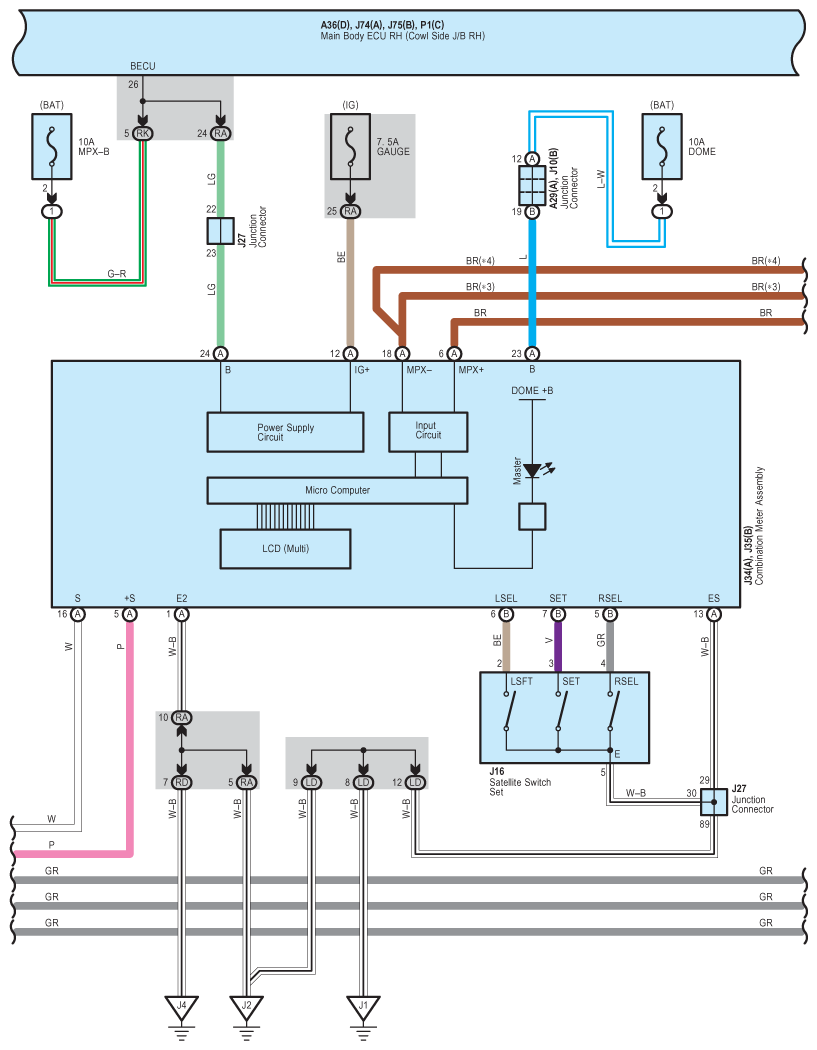

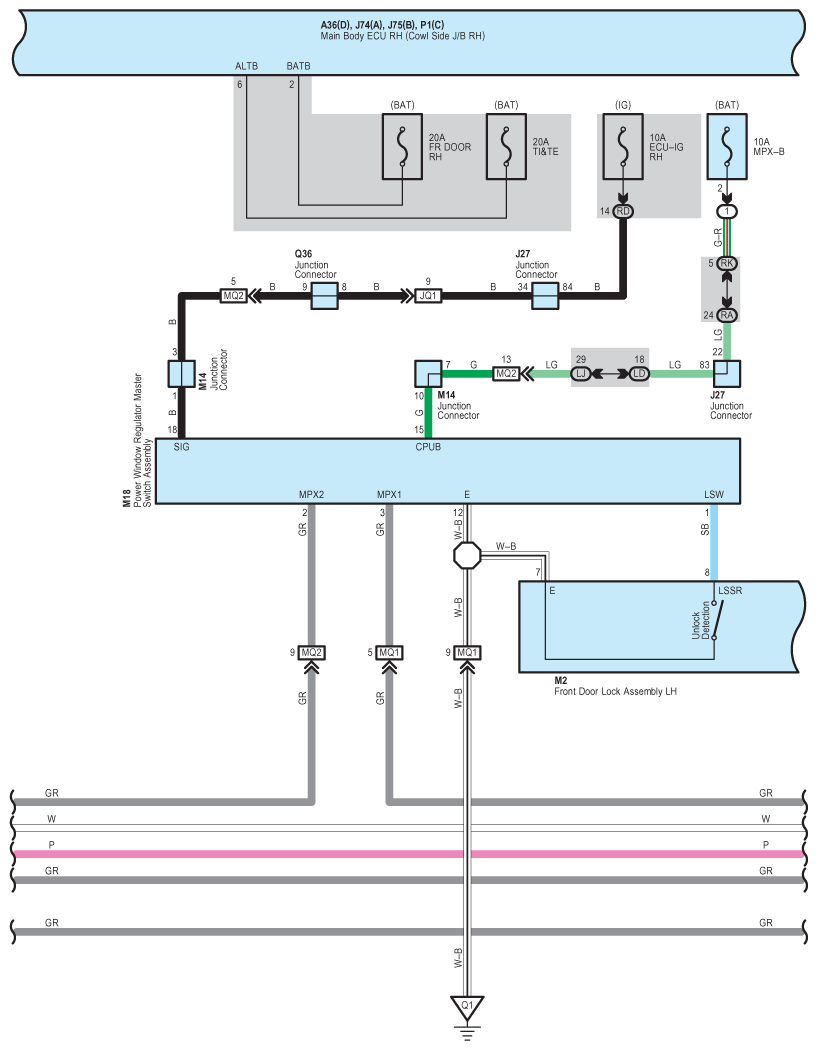

Fig 4: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (4 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

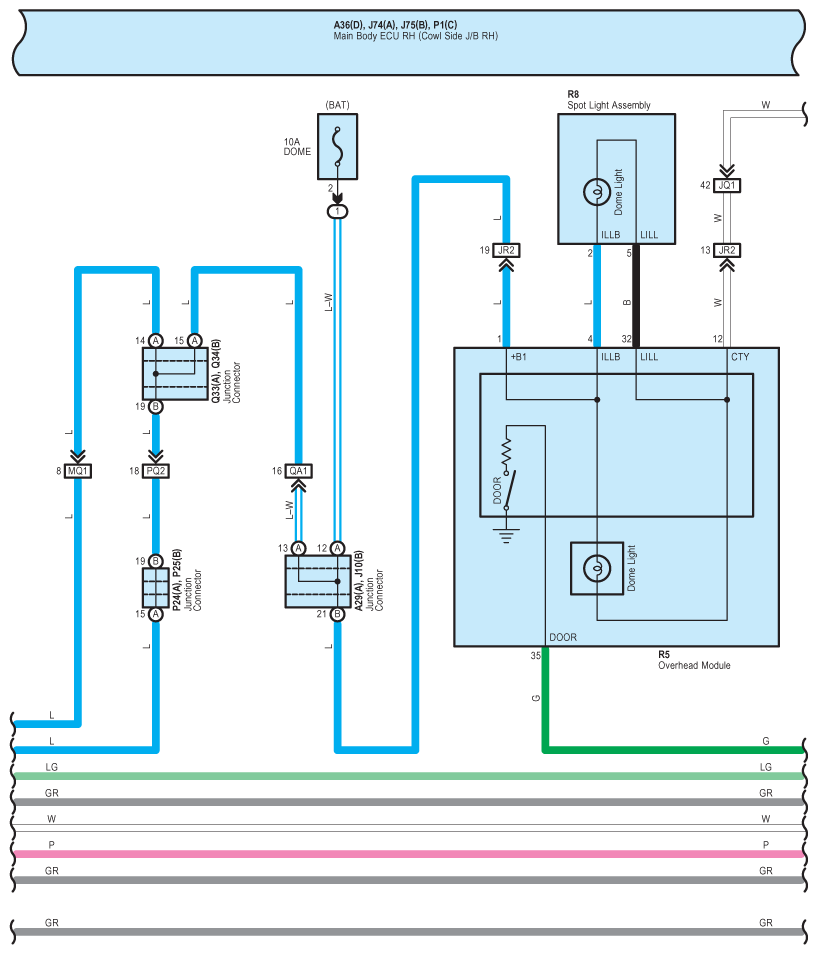

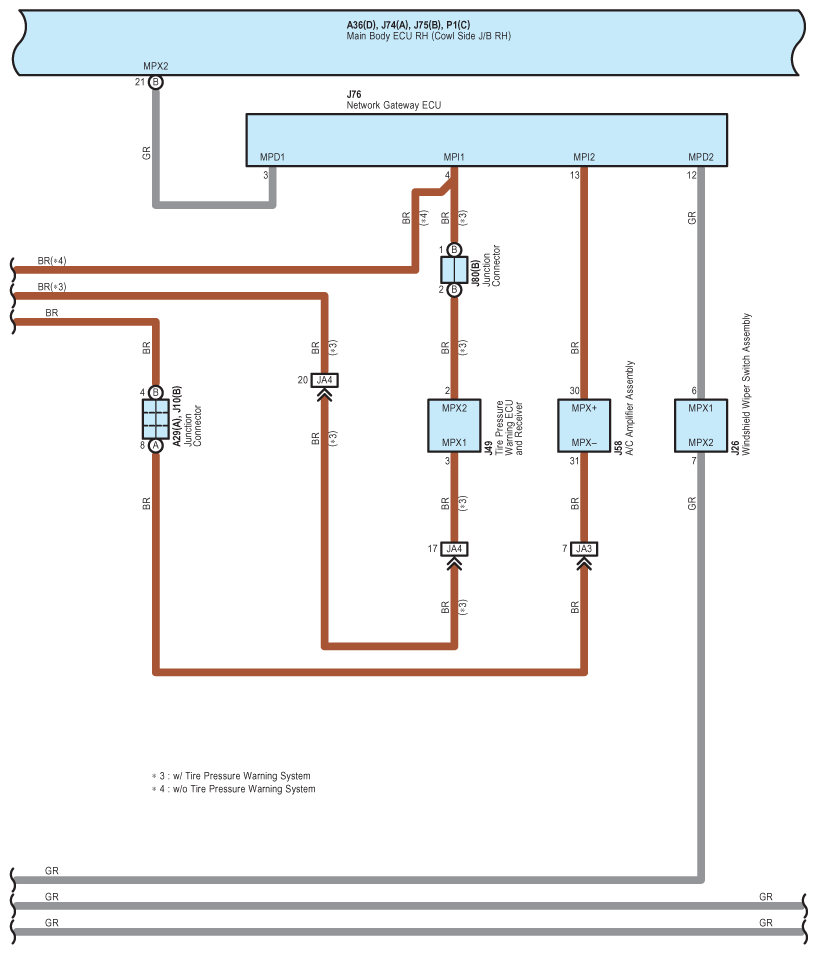

Fig 5: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (5 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

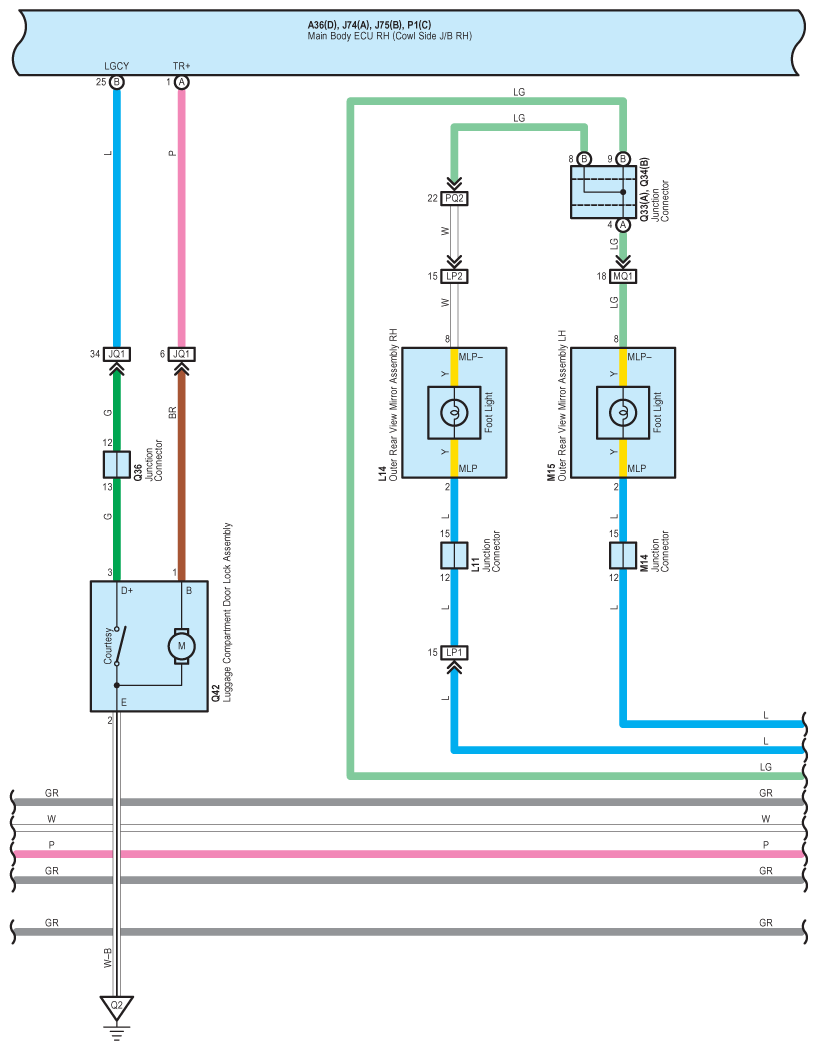

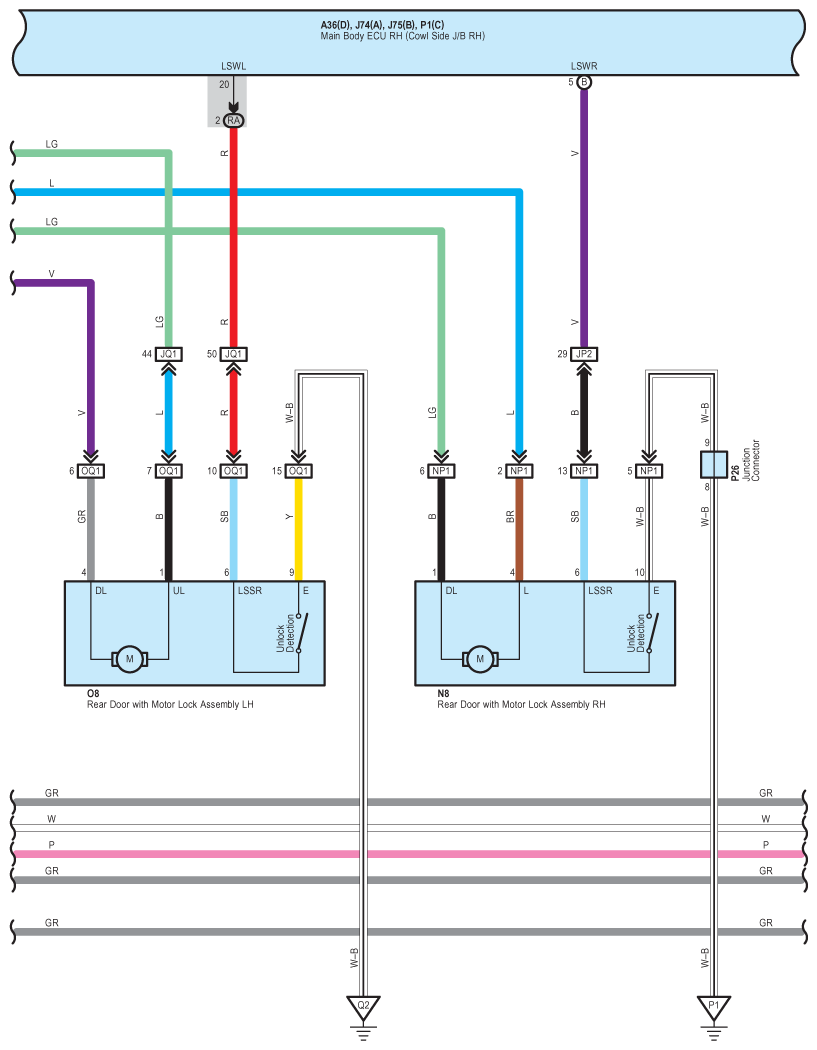

Fig 6: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (6 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

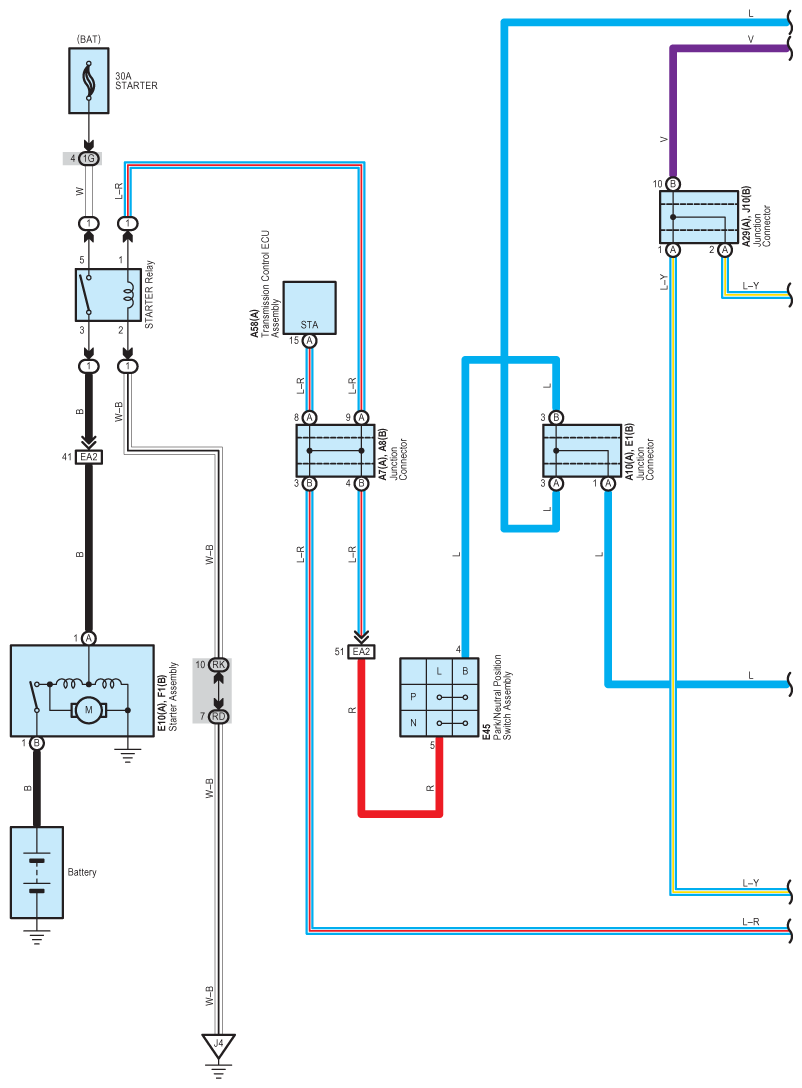

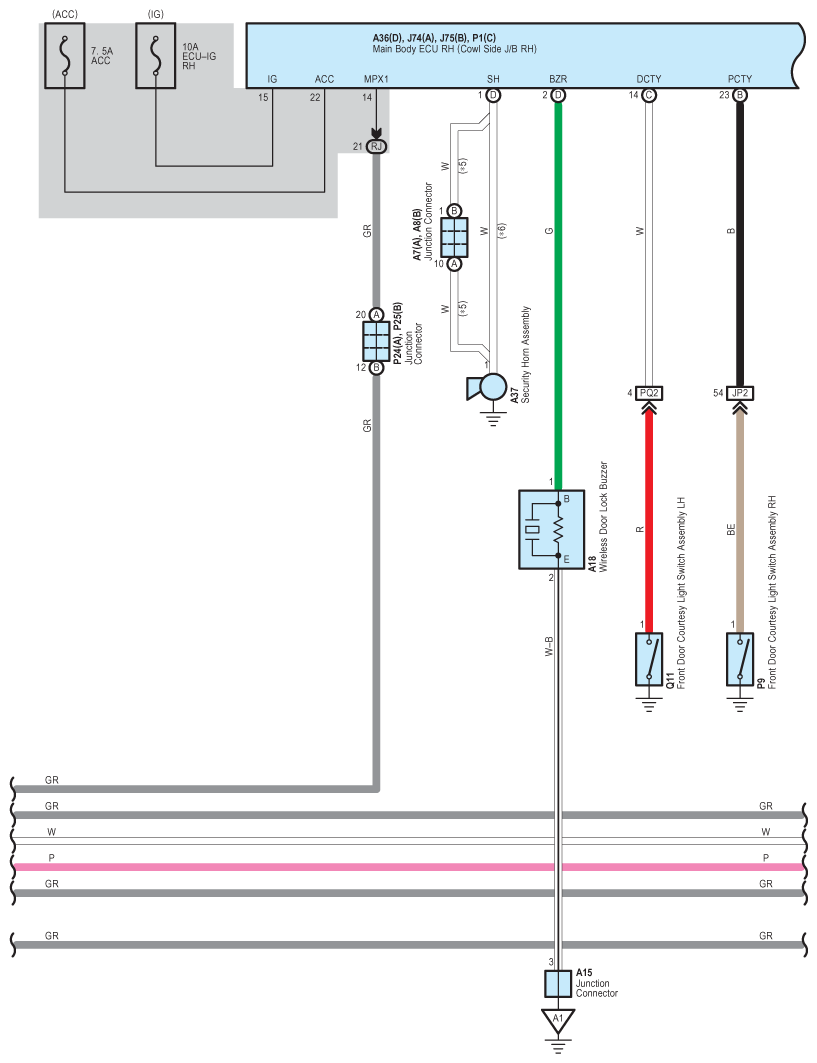

Fig 7: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (7 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

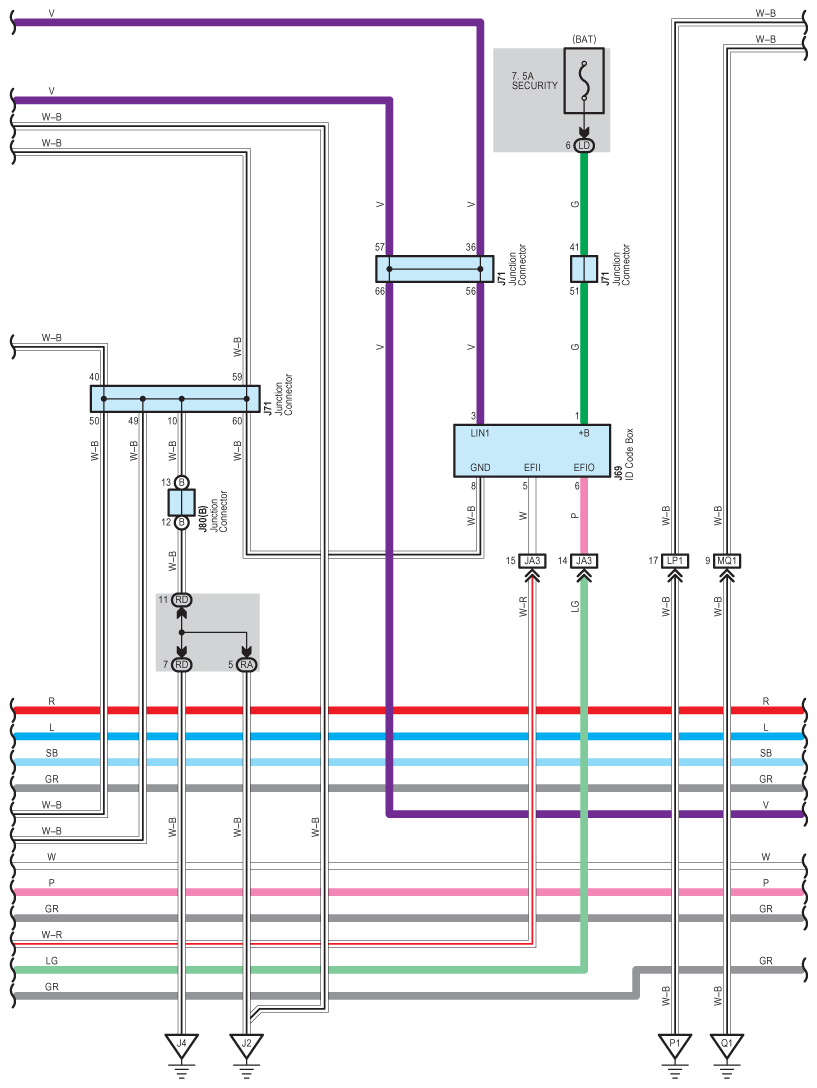

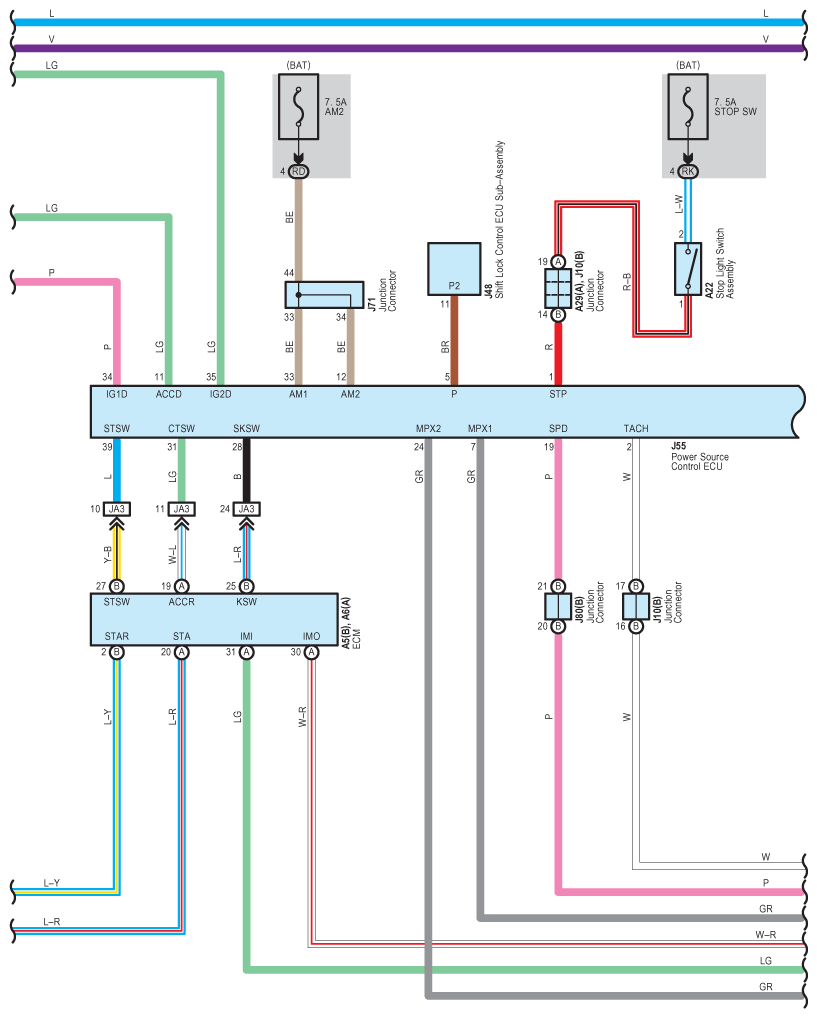

Fig 8: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (8 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (9 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (10 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (11 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (12 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (13 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (14 Of 20)

Fig 15: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (15 Of 20)

Fig 16: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (16 Of 20)

Fig 17: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (17 Of 20)

Fig 18: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (18 Of 20)

Fig 19: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (19 Of 20)

Fig 20: Engine Immobiliser System, Smart Access System With Push-Button Start, Starting, Steering Lock, Theft Deterrent And Wireless Door Lock Control - Wiring Diagram (20 Of 20)
