Power Seat (Driver's Seat): Notes

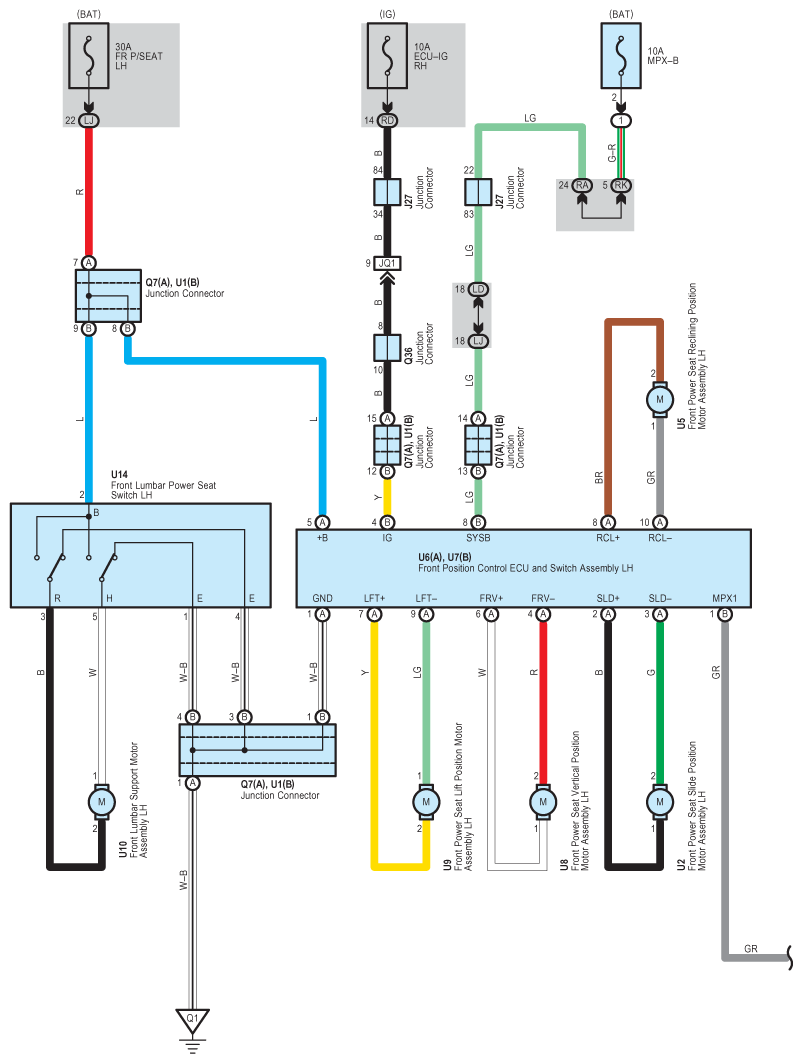

Fig 1: Power Seat (Driver'S Seat) - Wiring Diagram (1 Of 5)
G08939815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

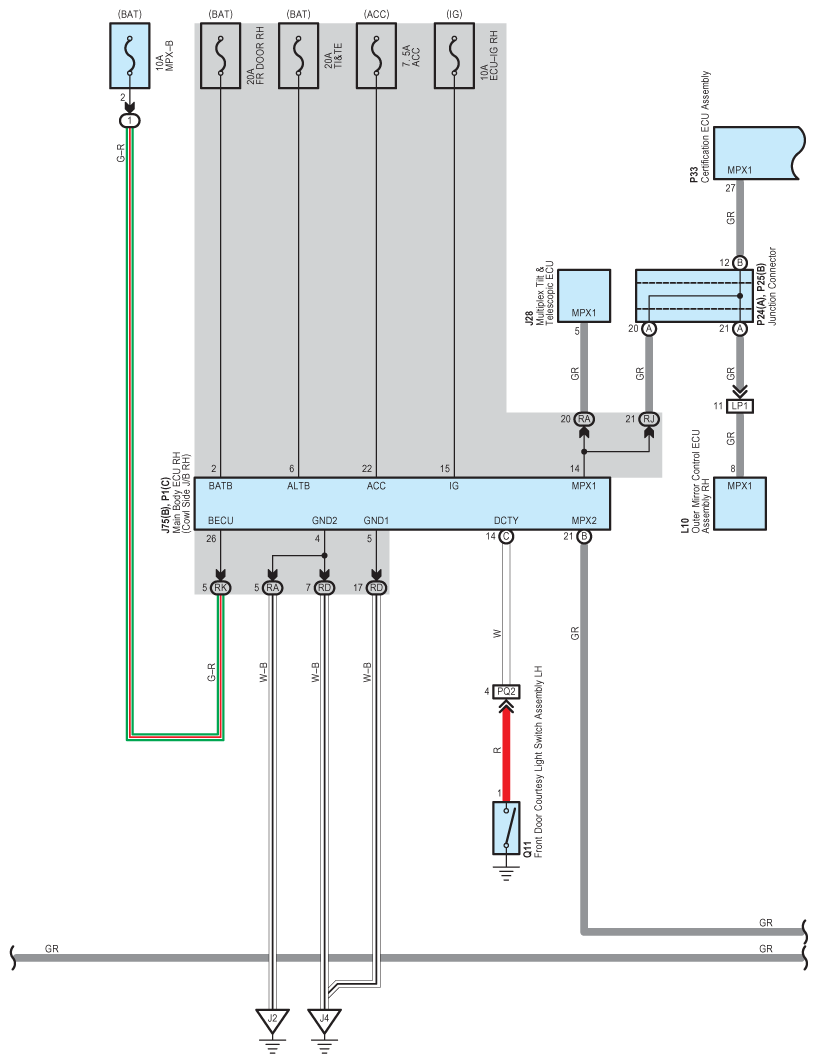

Fig 2: Power Seat (Driver'S Seat) - Wiring Diagram (2 Of 5)
G08939816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

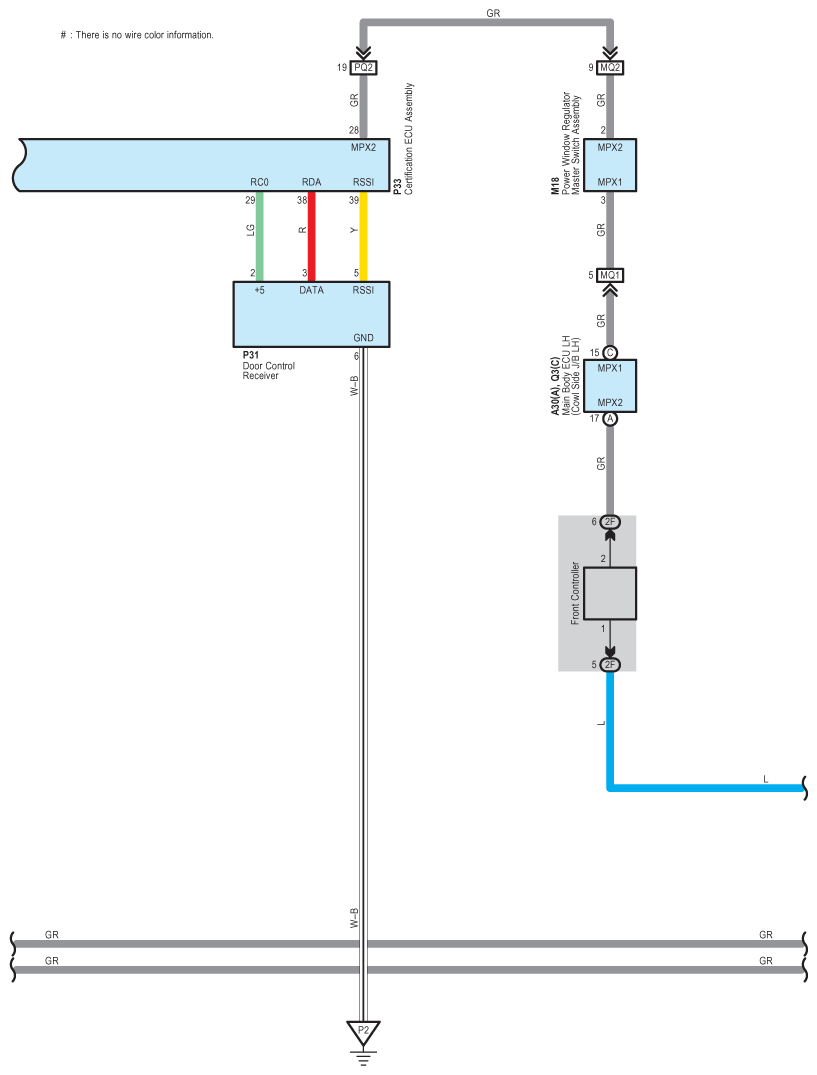

Fig 3: Power Seat (Driver'S Seat) - Wiring Diagram (3 Of 5)
G08939817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

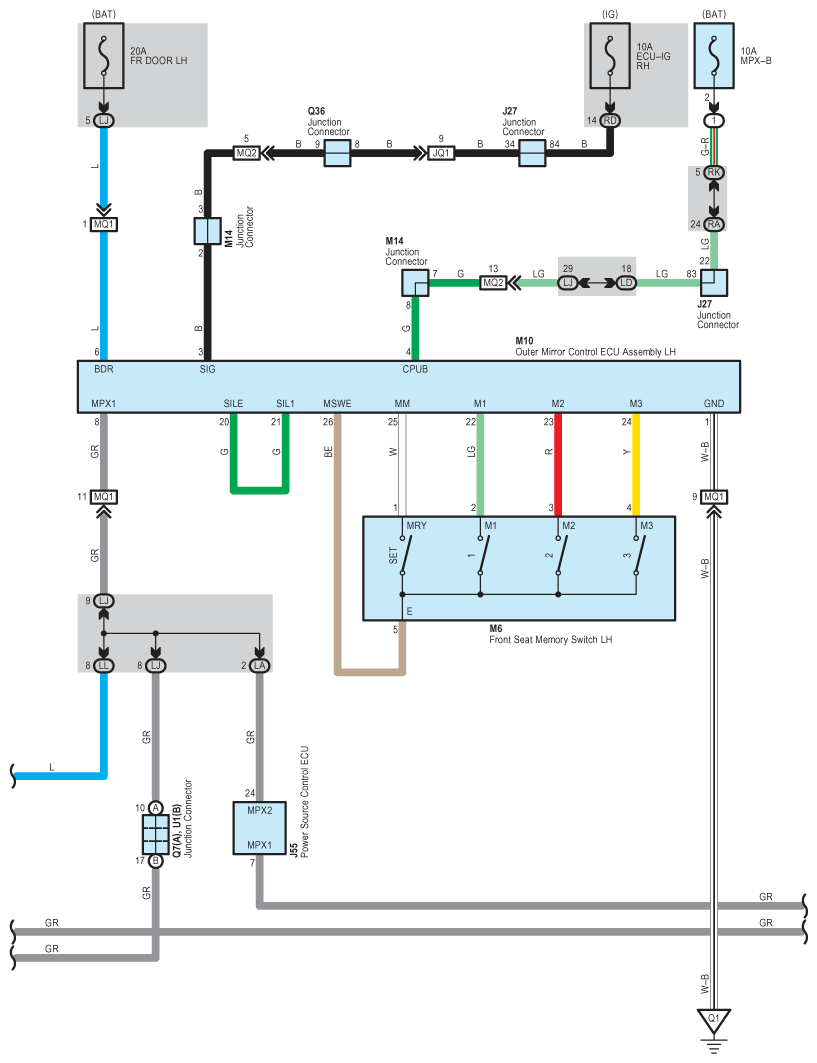

Fig 4: Power Seat (Driver'S Seat) - Wiring Diagram (4 Of 5)
G08939818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

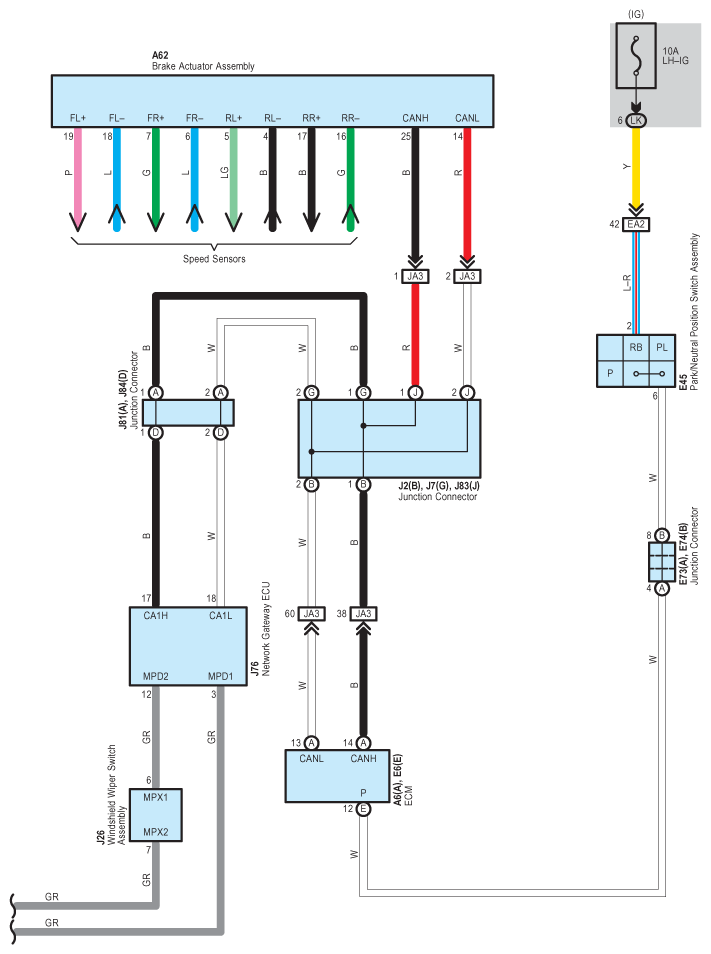

Fig 5: Power Seat (Driver'S Seat) - Wiring Diagram (5 Of 5)
G08939819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
