Power Seat (Front Passenger's Seat): Notes

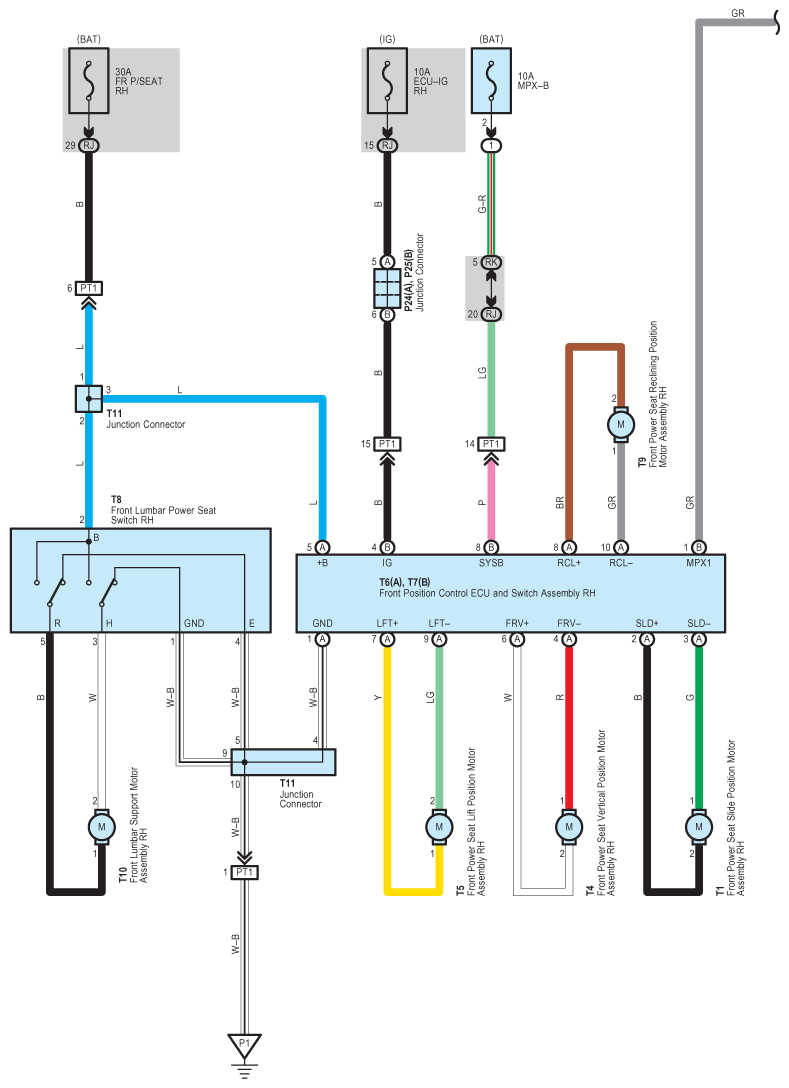

Fig 1: Power Seat (Front Passenger's Seat) - Wiring Diagram (1 Of 4)
G08939820Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

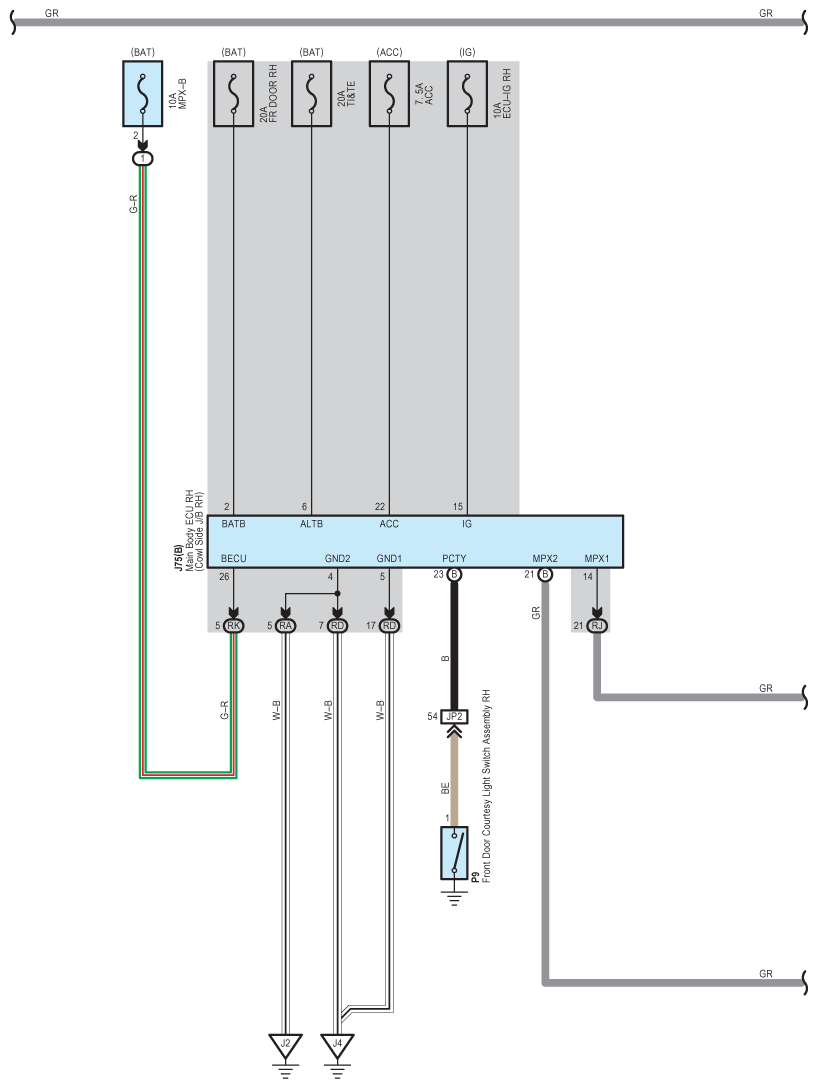

Fig 2: Power Seat (Front Passenger's Seat) - Wiring Diagram (2 Of 4)
G08939821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

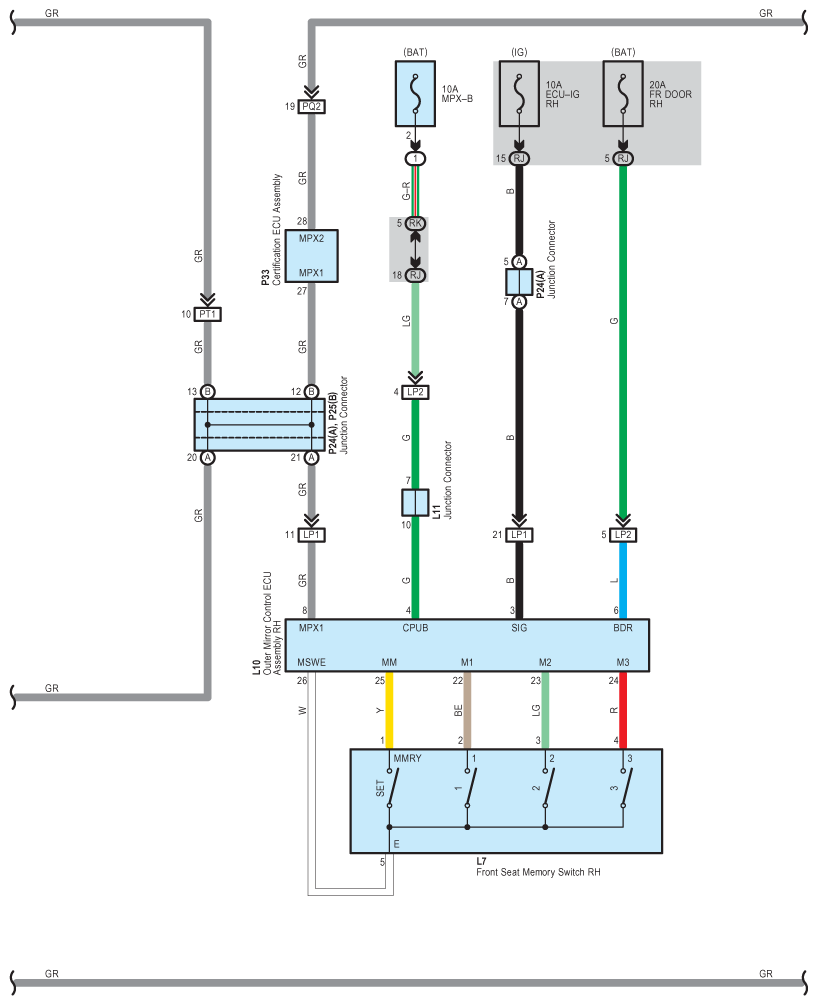

Fig 3: Power Seat (Front Passenger's Seat) - Wiring Diagram (3 Of 4)
G08939822Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Power Seat (Front Passenger's Seat) - Wiring Diagram (4 Of 4)
G08939823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
