Charging System (Service Information): Generator: Disassembly: Disassembly

  1. REMOVE GENERATOR PULLEY

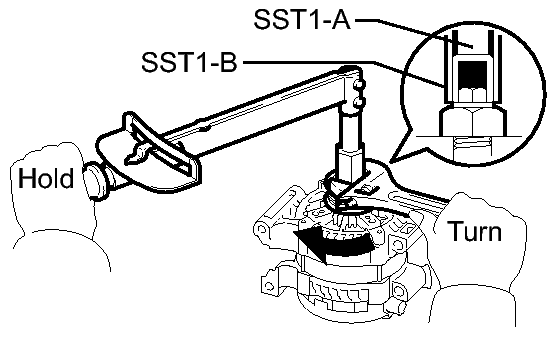

    Fig 1: Tightening SST1-B
    GTY144299Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install SST1-A to the pulley shaft.
      • SST: 09820-63011
        • 09820-06010
        • 09820-06021
    2. Install SST1-B to SST1-A.
    3. While holding SST1-A on the pulley shaft area, tighten SST1-B to the specified torque.

      Torque: 39 N*m (400 kgf*cm, 29 ft.*lbf)

      NOTE:

      Securely attach SST1-A to the pulley shaft.

      HINT:

      Read SST1-B tightening torque by using the reactive torque of SST1-A.

    4. Mount 2 faces of SST2 in a vise.
      Fig 2: Mounting Faces Of SST2 In Vise
      GTY101824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. With SST1-A and B attached to the generator, insert the pulley lock nut into the hexagon portion of SST2.
    6. To loosen the pulley nut, rotate SST1-A in the direction shown in the illustration.

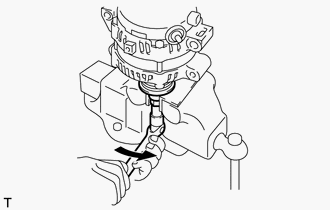

      Fig 3: Loosening Pulley Nut
      GTY100746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      With SST2 (pulley nut) secured in place, the pulley lock nut will loosen due to the rotation of SST1-A in the direction shown in the illustration.

    7. Remove the generator from SST2.
    8. While holding SST1-B in place, rotate SST1-A to the right to loosen it. Then remove SST1-A and B from the generator.

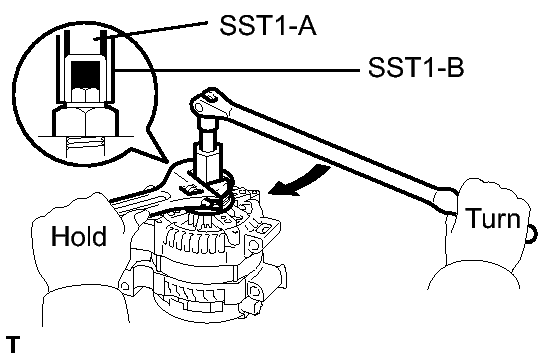

      Fig 4: Removing Pulley Lock Nut And Generator Pulley
      GTY100216Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Remove the pulley lock nut and generator pulley.
  2. REMOVE GENERATOR REAR END COVER
    1. Remove the 3 nuts and generator rear end cover from the generator coil assembly.
      Fig 5: Locating Generator Rear End Cover Nuts
      GTY101698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE GENERATOR TERMINAL INSULATOR
    1. Remove the generator terminal insulator from the generator coil assembly.

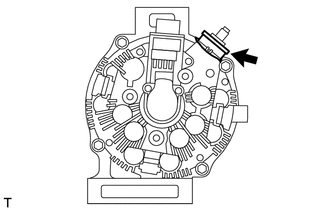

      Fig 6: Locating Generator Terminal Insulator
      GTY105243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE GENERATOR BRUSH HOLDER ASSEMBLY
    1. Remove the 2 screws and generator brush holder assembly from the generator coil assembly.

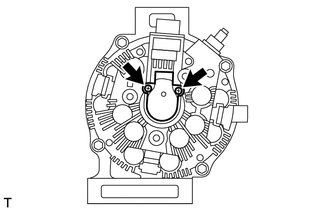

      Fig 7: Locating Generator Brush Holder Screws
      GTY100756Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE GENERATOR COIL ASSEMBLY
    1. Remove the 4 through bolts.
      Fig 8: Locating Through Bolts
      GTY101389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the generator coil assembly.

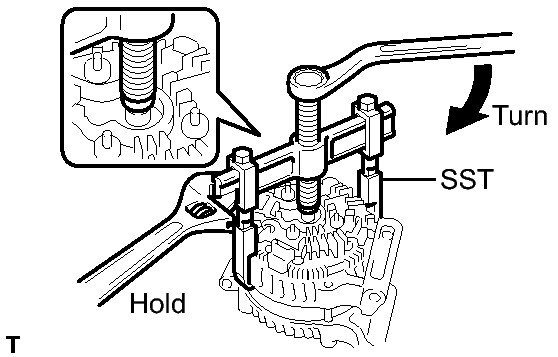

      Fig 9: Removing Generator Coil Assembly
      GTY127090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-40011
        • 09951-04020
        • 09952-04010
        • 09953-04020
        • 09954-04010
        • 09955-04071
        • 09957-04010
  6. REMOVE GENERATOR ROTOR ASSEMBLY
    1. Remove the generator washer.
      Fig 10: Locating Generator Washer
      GTY103656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the generator rotor assembly from the drive end frame.
      Fig 11: Locating Generator Rotor Assembly
      GTY104412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE GENERATOR ROTOR BEARING
    1. Remove the 4 screws and retainer from the drive end frame.

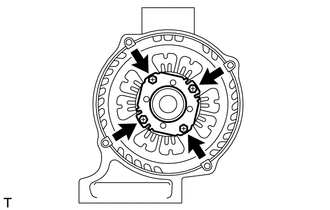

      Fig 12: Locating Generator Rotor Bearing Screws
      GTY105248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST and a hammer, remove the generator rotor bearing from the drive end frame.
      • SST: 09950-60010
        • 09951-00270
      • SST: 09950-70010
        • 09951-07100

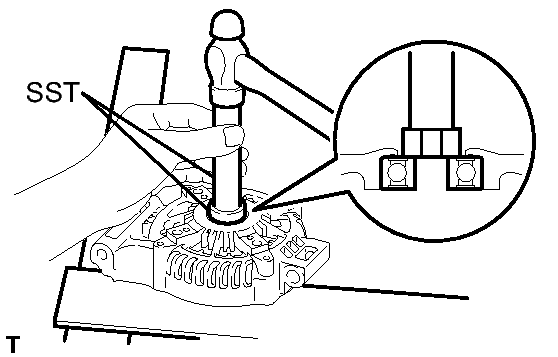

      Fig 13: Removing Generator Rotor Bearing Of Drive End Frame
      GTY105244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
