Fuel Pressure Sensor: Components: Illustration

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY120914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

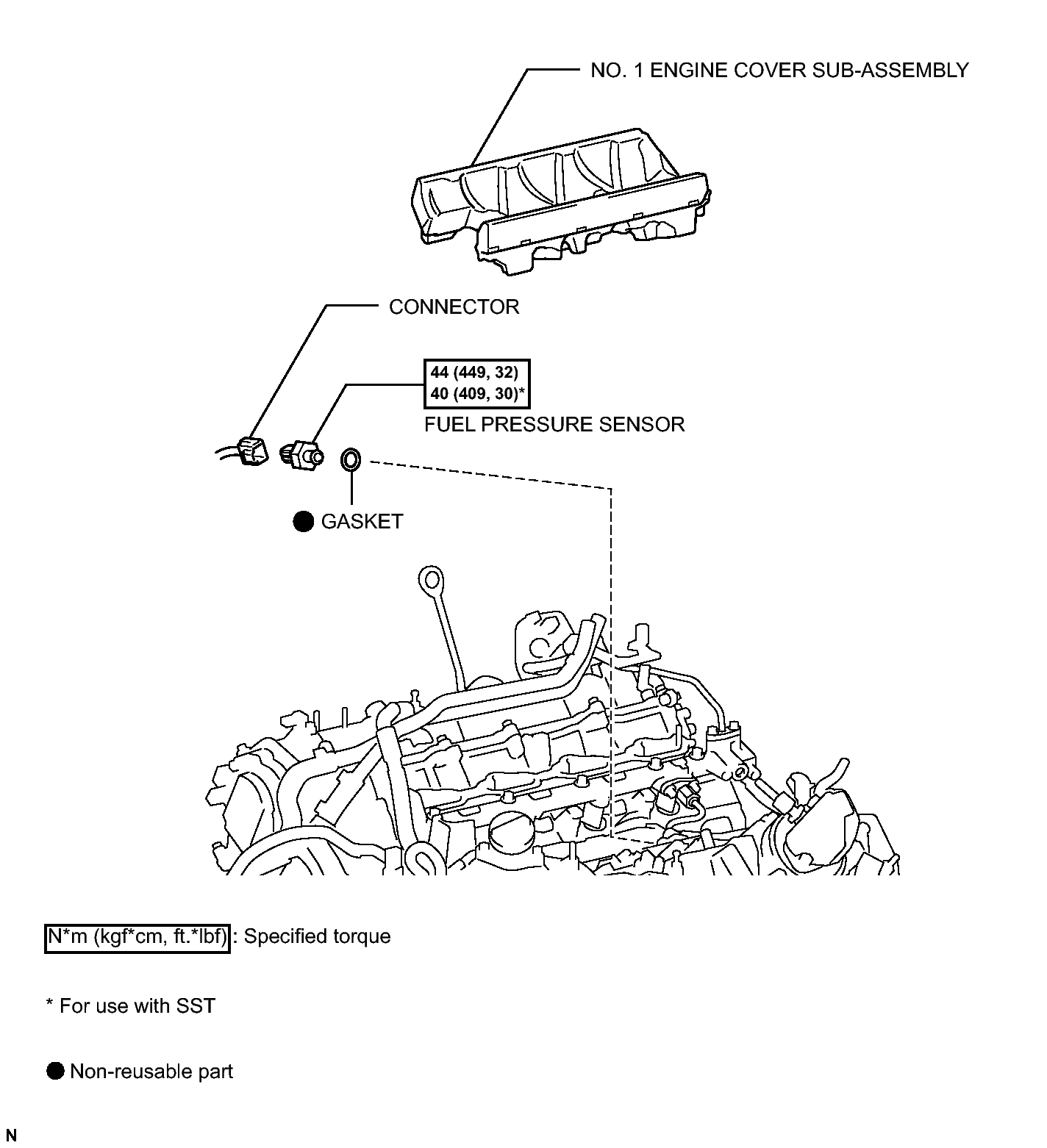

Fig 1: Identifying Fuel Pressure Sensor Replacement Components With Torque Specifications (2 Of 2)
GTY148891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
