Fuel Pressure Sensor: Inspection: Inspection
- INSPECT FUEL PRESSURE SENSOR

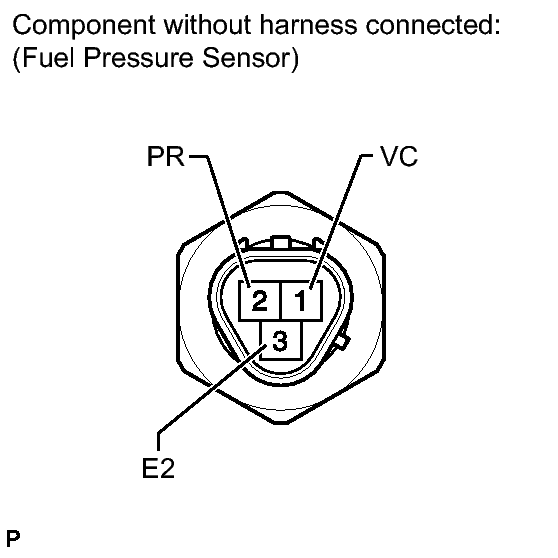

- Check the fuel pressure sensor output voltage.
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Condition 2 - 3 5 V applied between terminals 1 (VC) and 3 (E2) 0.5 V If the result is not as specified, replace the fuel pressure sensor.
HINT:
The above voltage is output when no pressure is applied to the sensor.
- Measure the voltage according to the value(s) in the table below.
- Check the fuel pressure sensor output voltage.
