Fuel Pressure Sensor: Removal: Removal
- PRECAUTION WARNING:
- Do not smoke or work near an open flame when handling the fuel system.
- Keep gasoline away from rubber or leather parts.
- Do not allow fuel to spray when removing the pipe between the high pressure side fuel pump assembly and the fuel injector assembly. The fuel in the pipe is highly pressurized.
- DISCHARGE FUEL SYSTEM PRESSURE
- Discharge fuel system pressure. Refer to PRECAUTION .
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
- REMOVE INTAKE AIR SURGE TANK ASSEMBLY
- Remove the intake air surge tank assembly. Refer to REMOVAL .
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY See step 11

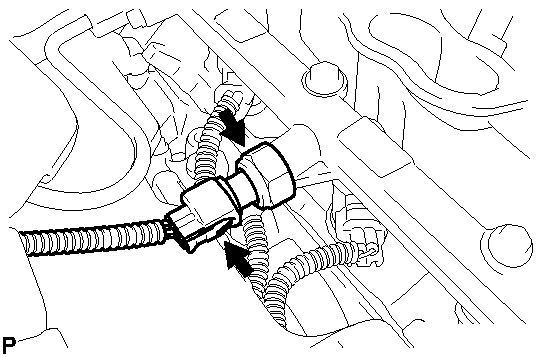

- REMOVE FUEL PRESSURE SENSOR
- Disconnect the connector.
- Remove the fuel pressure sensor and gasket.
