Fuel Relief Valve: Components: Illustration

Fig 1: Identifying Knock Sensor Replacement Components With Torque Specifications (1 Of 2)
GTY120914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

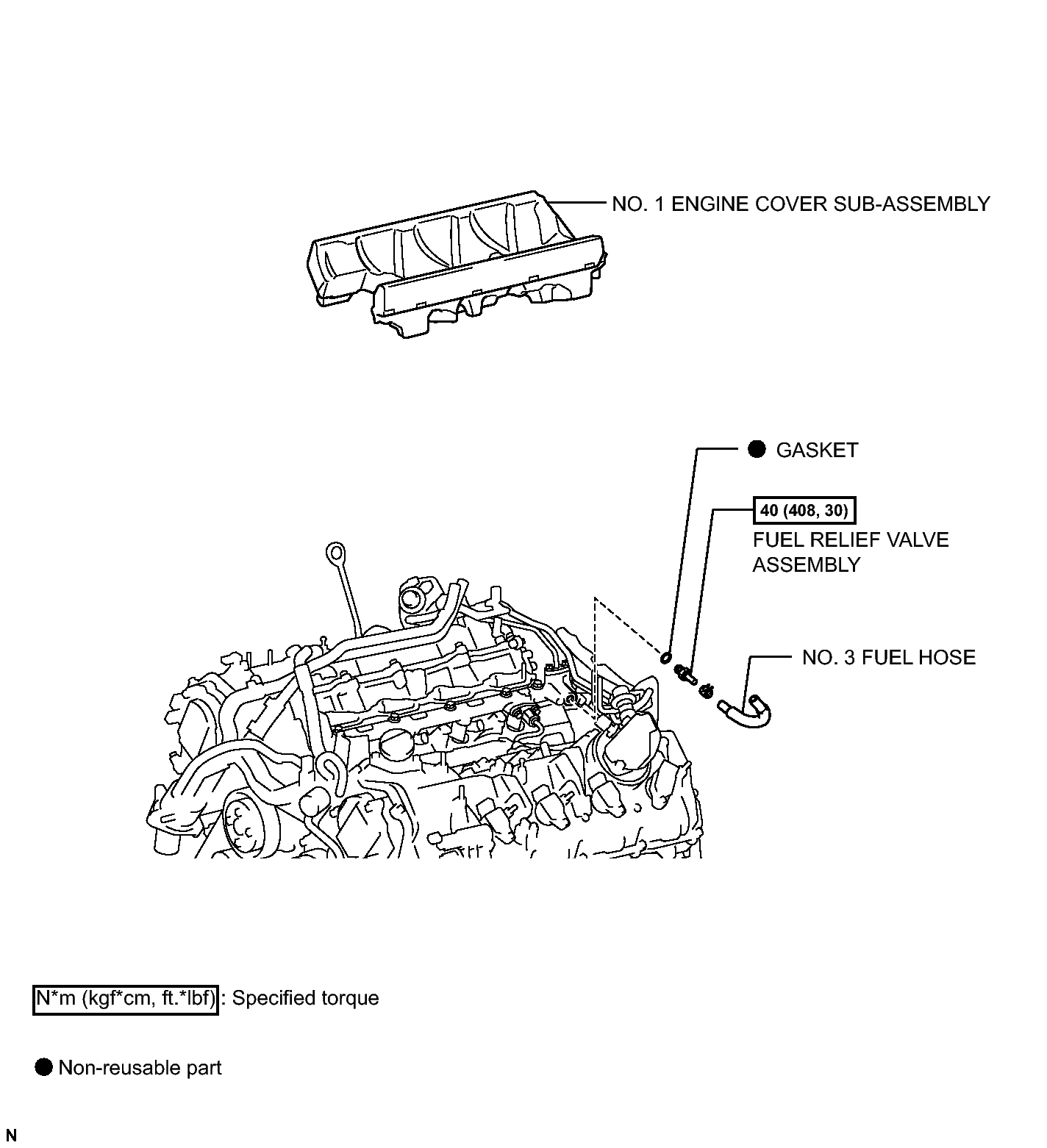

Fig 1: Identifying Fuel Relief Valve Replacement Components With Torque Specifications (2 Of 2)
GTY137077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
