Occupant Detection Sensor: Removal: Removal

REMOVE FRONT SEAT ASSEMBLY
Refer to REMOVAL

HINT:

Use the same procedure described for the LH side.
REMOVE FRONT SEAT INNER BELT ASSEMBLY
HINT:

Use the same procedure described for the LH side See step 7.
REMOVE RECLINING POWER SEAT SWITCH KNOB
HINT:

Use the same procedure described for the LH side. Refer to DISASSEMBLY - Step 2 .
REMOVE SLIDE AND VERTICAL POWER SEAT SWITCH KNOB
HINT:

Use the same procedure described for the LH side. Refer to DISASSEMBLY - Step 3 .
REMOVE FRONT SEAT CUSHION SHIELD ASSEMBLY
HINT:

Use the same procedure described for the LH side. Refer to DISASSEMBLY - Step 4 .
REMOVE FRONT SEAT CUSHION INNER SHIELD
HINT:

Use the same procedure described for the LH side. Refer to DISASSEMBLY - Step 8 .
REMOVE POWER SEAT SWITCH
HINT:

Use the same procedure described for the LH side. Refer to DISASSEMBLY - Step 10 .
REMOVE FRONT SEAT CUSHION COVER WITH PAD . Refer to DISASSEMBLY - Step 12
REMOVE SEPARATE TYPE FRONT SEAT CUSHION PAD
1. Remove the 16 hog rings and the separate type front seat cushion cover from the separate type front seat cushion pad.

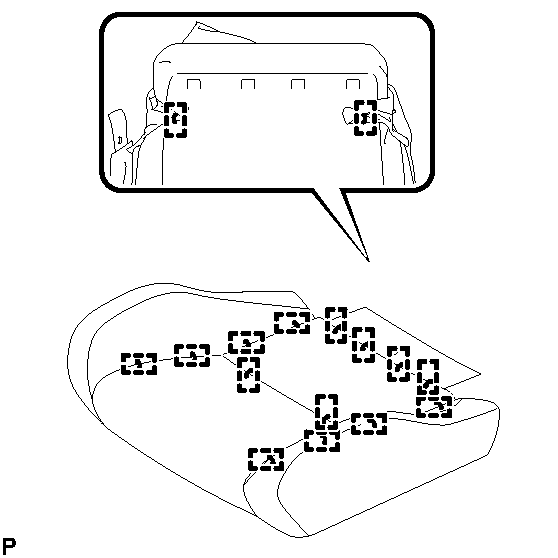

  Fig 1: Identifying Hog Rings Of Separate Type Front Seat Cushion Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
