Parts Location: Illustration

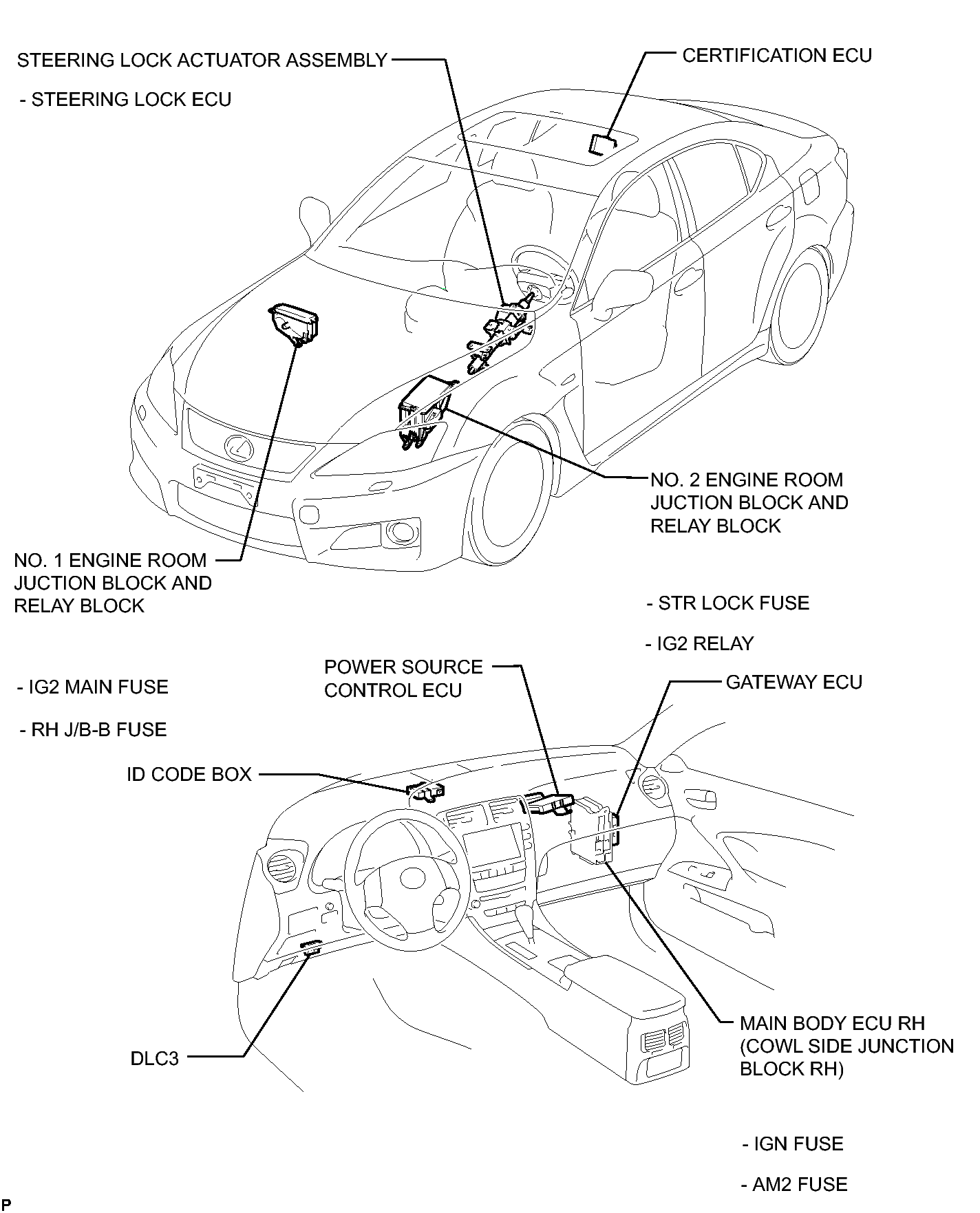

Fig 1: Identifying Steering Lock System Components Location
GTY140068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
