Terminals Of Ecu

STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)

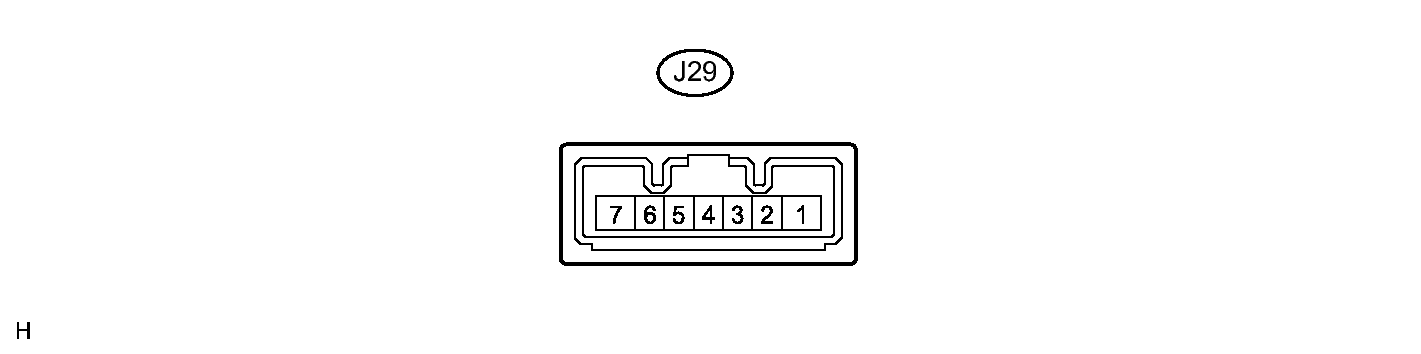

Fig 1: Steering Lock Actuator Assembly Connector Terminal Identification

Terminal No. (Symbol)	Wiring Color	Terminal Description	Condition	Specified Condition
J29-1 (GND) - Body ground	W-B - Body ground	Ground	Always	Below 1 V
J29-2 (SGND) - Body ground	W-B - Body ground	Signal ground	Always	Below 1 V
J29-3 (IGE) - J29-1 (GND)	W - W-B	Power source for driving motor	Motor is in operation Motor is not in operation	Below 1 V 10 to 12 V
J29-4 (SLP1) - J29-2 (SGND)	R - W-B	Unlock position sensor output signal	Steering is locked Steering lock is released	10 to 14 V Below 1 V
J29-5 (LIN) - J29-2 (SGND)	V - W-B	LIN communication bus	Engine switch on (IG)	Pulse generation
J29-6 (IG2) - J29-1 (GND)	LG - W-B	IG signal input	Engine switch on (IG)	10 to 14 V
J29-7 (B) - J29-1 (GND)	G - W-B	Power source	Always	10 to 14 V
