Shift Lever: Inspection: Inspection
- INSPECT SHIFT LOCK CONTROL ECU
- Measure the voltage according to the values in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
Do not disconnect the shift lock control ECU connector.

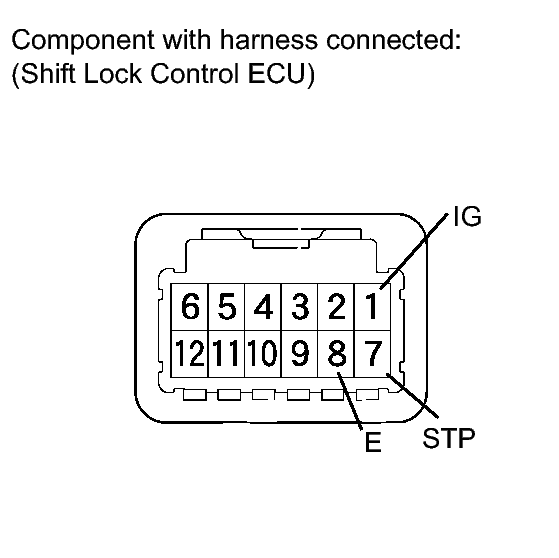

Standard Voltage
Tester Connection Condition Specified Condition 7 (STP) - 8 (E) Brake pedal depressed 11 to 14 V 7 (STP) - 8 (E) Brake pedal released Below 1 V 1 (IG) - 8 (E) Engine switch on (IG) 11 to 14 V 1 (IG) - 8 (E) Engine switch off Below 1 V - Measure the resistance according to the value in the table below.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
Do not disconnect the shift lock control ECU connector.

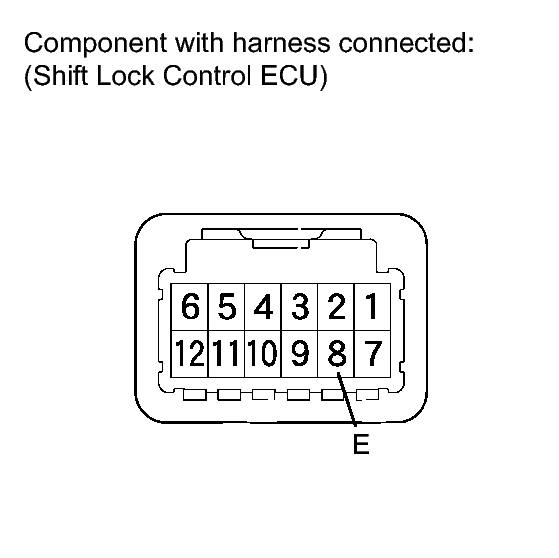

Standard Resistance
Tester Connection Condition Specified Value 8 (E) - Body ground Always Below 1 Ω
- Measure the voltage according to the values in the table below.
