Shift Lever: Installation: Installation

  1. INSTALL TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. Install the floor shift assembly with the 4 bolts.

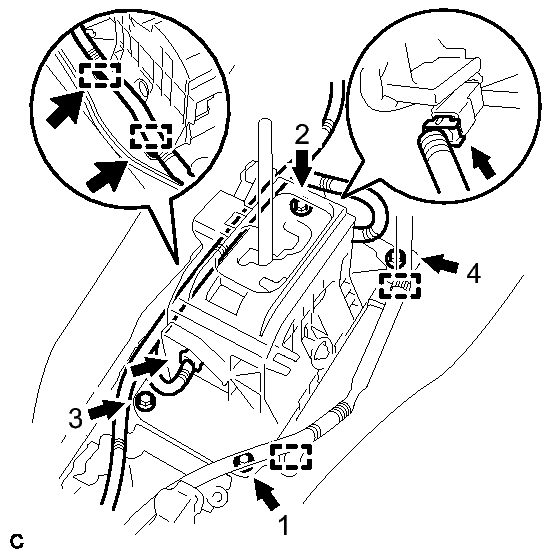

      Fig 1: Locating Floor Shift Assembly Connector With Clamps
      GTY124329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

    2. Connect the 4 clamps to the floor shift assembly.
    3. Connect the 2 connectors to the floor shift assembly.
  2. CONNECT FLOOR SHIFT GEAR SHIFTING ROD SUB-ASSEMBLY
    1. Temporarily tighten the floor shift gear shifting rod with the nut.

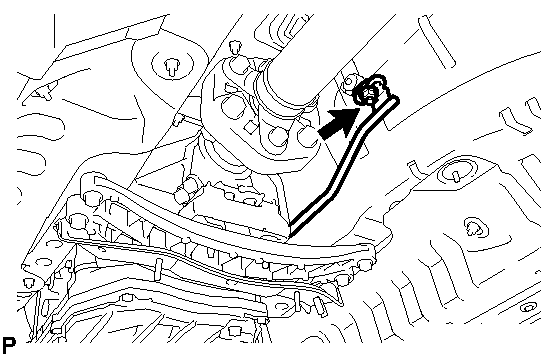

      Fig 2: Locating Shift Lever Nut
      GTY134181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The rod is tightened to a torque specification in the "ADJUST SHIFT LEVER POSITION" procedure.

  3. ADJUST SHIFT LEVER POSITION  See step  1
  4. INSTALL FRONT NO. 1 FLOOR HEAT INSULATOR  . Refer to INSTALLATION - Step 5
  5. INSTALL FRONT EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 1
  6. CONNECT HEATED OXYGEN SENSOR  . Refer to INSTALLATION - Step 2
  7. INSTALL FRONT CENTER FLOOR BRACE  . Refer to INSTALLATION - Step 3
  8. INSTALL REAR NO. 1 FLOOR PANEL BRACE  . Refer to INSTALLATION - Step 4
  9. INSTALL TAIL EXHAUST PIPE ASSEMBLY  . Refer to INSTALLATION - Step 8
  10. INSTALL NO. 2 FLOOR UNDER COVER  . Refer to INSTALLATION - Step 11
  11. INSTALL NO. 1 FLOOR UNDER COVER  . Refer to INSTALLATION - Step 12
  12. INSTALL NO. 2 CONSOLE BOX DUCT  . Refer to INSTALLATION - Step 6
  13. INSTALL CONSOLE BOX  . Refer to INSTALLATION - Step 1
  14. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/ Ashtray)  . Refer to INSTALLATION - Step 2
  15. INSTALL CONSOLE BOX REGISTER ASSEMBLY (w/o Ashtray)  . Refer to INSTALLATION - Step 3
  16. INSTALL REAR ASH RECEPTACLE ASSEMBLY (w/ Ashtray)  . Refer to INSTALLATION - Step 4
  17. INSTALL FRONT ASH RECEPTACLE BOX SUB-ASSEMBLY (w/ Ashtray)  . Refer to INSTALLATION - Step 43
  18. INSTALL INSTRUMENT PANEL BOX ASSEMBLY (w/o Ashtray)  . Refer to INSTALLATION - Step 44
  19. INSTALL CONSOLE PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 45
  20. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 46
  21. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH  . Refer to INSTALLATION - Step 47
  22. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY  . Refer to INSTALLATION - Step 48
  23. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .

  24. INSPECT SHIFT LEVER POSITION  See step  1
  25. INSPECT FOR EXHAUST GAS LEAK
