Shift Paddle Switch: Installation: Installation

INSTALL SHIFT PADDLE SWITCH
1. Install the 2 shift paddle switches and 2 brackets with the 4 screws.

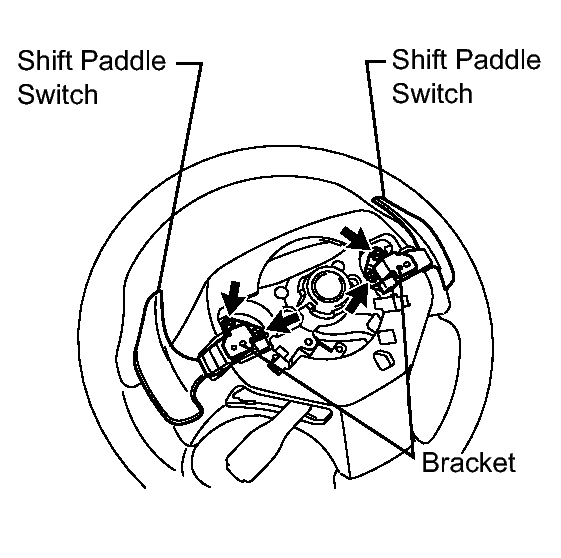

  Fig 1: Identifying Brackets And Shift Paddle Switches
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 1.7 N*m (17 kgf*cm, 15 in.*lbf)

  NOTE:
  Make sure that the brackets are securely installed.
2. Connect the 2 switch wire connectors to the shift paddle switches.

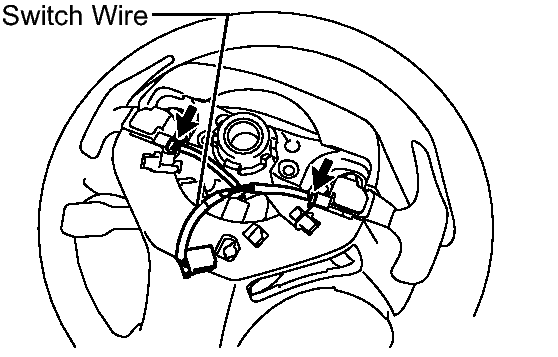

  Fig 2: Locating Switch Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the connector to the steering wheel assembly.

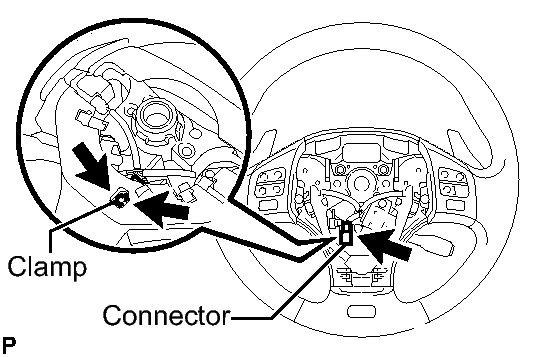

  Fig 3: Locating Steering Wheel Connector With Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the clamp to the steering wheel assembly.
TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL ASSEMBLY . Refer to INSTALLATION - Step 10
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL LOWER NO. 3 STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
INSTALL LOWER NO. 2 STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
INSPECT STEERING WHEEL CENTER POINT
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
INSPECT STEERING PAD . Refer to INSTALLATION - Step 5
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM .
