Speed Sensor: Components: Illustration

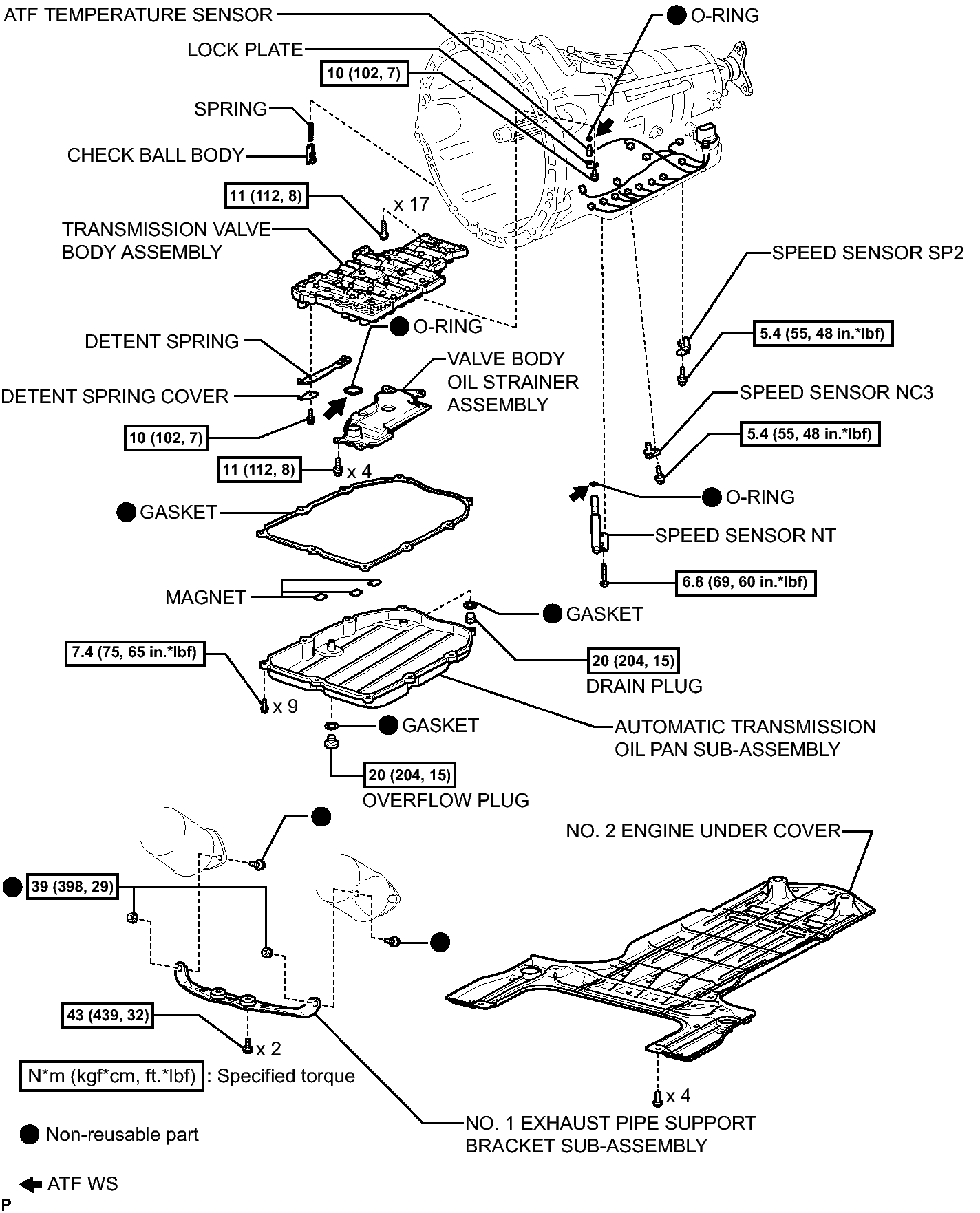

Fig 1: Identifying Speed Sensor Replacement Components with Torque Specifications
GTY108953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
