Automatic Transmission (Service Information): TCM: Removal: Removal

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 3
REMOVE ENGINE ROOM SIDE COVER LH . Refer to REMOVAL - Step 4
REMOVE ENGINE ROOM ECU COVER . Refer to REMOVAL - Step 5
REMOVE TCM
1. Using a screwdriver, disconnect the connector holder.

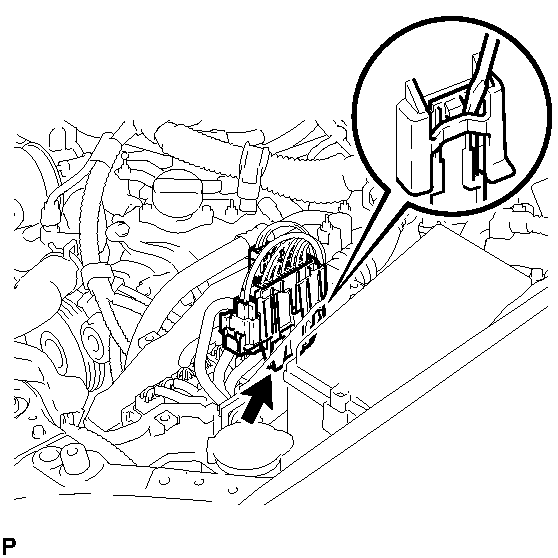

  Fig 1: Disconnecting Connector Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the 8 connectors.
3. Remove the 2 nuts and TCM.

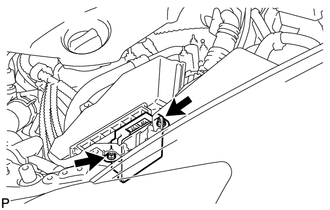

  Fig 2: Locating Nuts And TCM
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
