Transmission Wire: Installation: Installation

INSTALL TRANSMISSION WIRE
1. Coat a new O-ring with ATF and install it to the transmission wire connector.

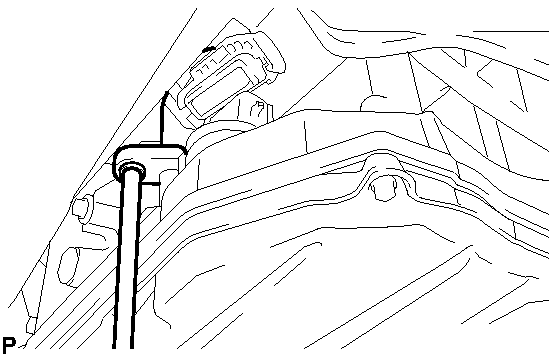

  Fig 1: Pulling Out Transmission Wire
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the transmission wire.
3. Using a 10 mm union nut wrench, install the bolt.
  without a union nut wrench

  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  with a union nut wrench

  Torque: 4.8 N*m (49 kgf*cm, 42 in.*lbf)

  NOTE:
  Use a torque wrench with a fulcrum length of 185 mm (7.28 in.).
4. Connect the wire connector.

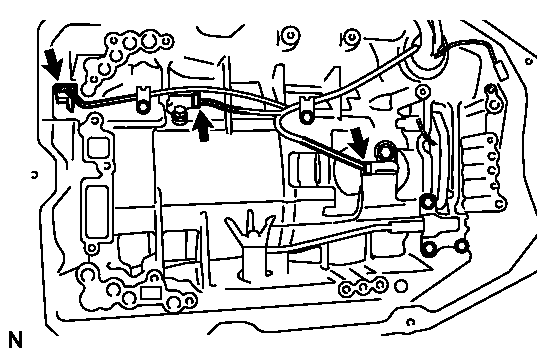

  Fig 2: Pushing Up Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Push up the lever until the claw of the transmission wire connector makes a connection sound.
5. Connect the 3 speed sensor connectors.

  Fig 3: Locating Speed Sensor Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION VALVE BODY ASSEMBLY See step 1
INSTALL VALVE BODY OIL STRAINER ASSEMBLY See step 2
INSTALL AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY See step 3
INSTALL NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY See step 4
ADD AUTOMATIC TRANSMISSION FLUID
1. Add automatic transmission fluid. Refer to ADJUSTMENT .
INSTALL NO. 2 ENGINE UNDER COVER
