Removal

CRUISE CONTROL: DRIVING SUPPORT ECU: REMOVAL

1. REMOVE FRONT DOOR SCUFF PLATE LH Removal

2. REMOVE COWL SIDE TRIM BOARD LH Removal

3. REMOVE DASH PANEL EXTENSION LH

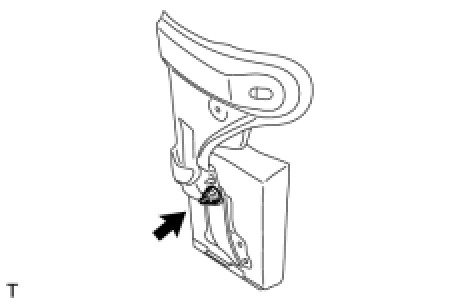

(a) Using a clip remover, remove the clip.

(b) Disconnect the connector.

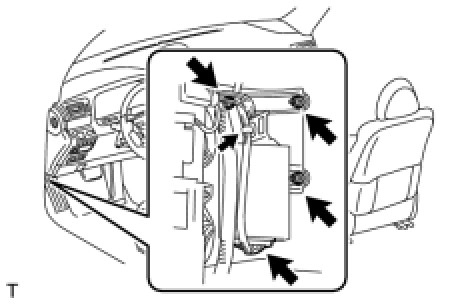

(c) Remove the 2 nuts, bolt and dash panel extension LH.

4. REMOVE DRIVING SUPPORT ECU





(a) Remove the nut and ECU.

NOTICE:
* Do not drop or subject the ECU to strong shocks.
* During the removal and installation, do not remove the drip-proof cover.
