Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

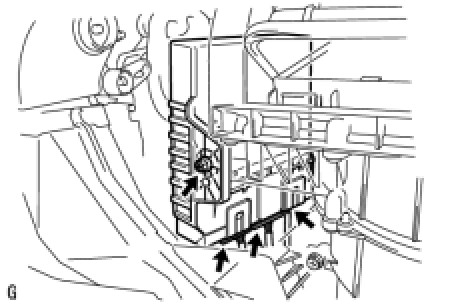

(a) Install the amplifier with the screw.

(b) Connect the 3 connectors.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY Installation

4. INSTALL INSTRUMENT PANEL LOWER Installation

5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

6. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING Installation

7. INSTALL INSTRUMENT SIDE PANEL RH Installation

8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH Installation

9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

10. INSTALL COWL TOP VENTILATOR LOUVER RH Installation

11. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
