Battery Current Sensor: Testing and Inspection

POWER SOURCE / WIRING: BATTERY CURRENT SENSOR: INSPECTION

1. INSPECT BATTERY CURRENT SENSOR

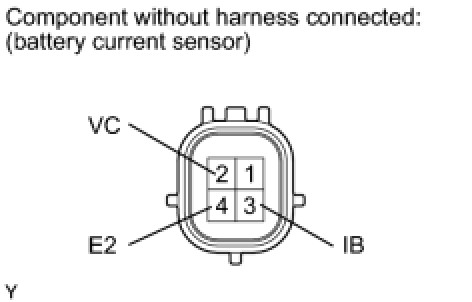

(a) Measure the resistance according to the value(s) in the table below.

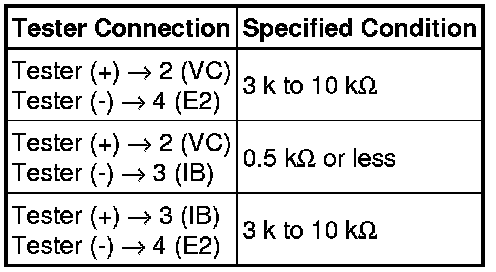

Standard resistance:

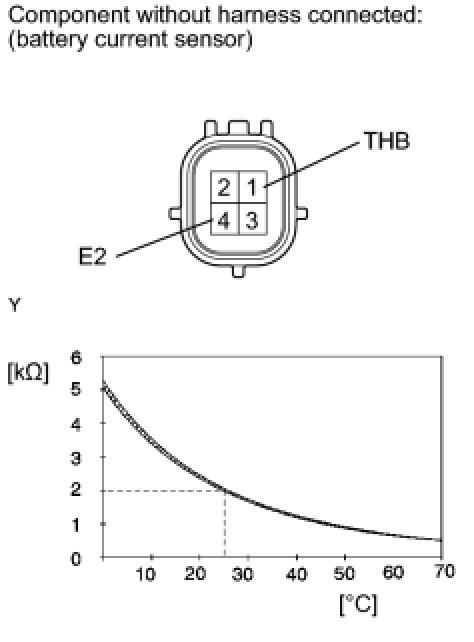

(b) Measure the resistance according to the value(s) in the table below.

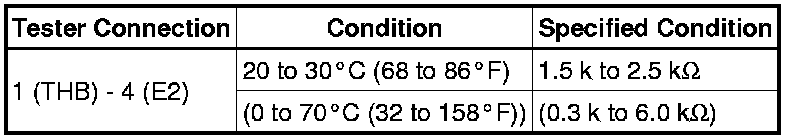

Standard resistance:





NOTICE:
The temperature shown in the condition is for the area surrounding the sensor, not the sensor itself.
