Problem Symptoms Table
MULTIPLEX COMMUNICATION: LIN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE
HINT

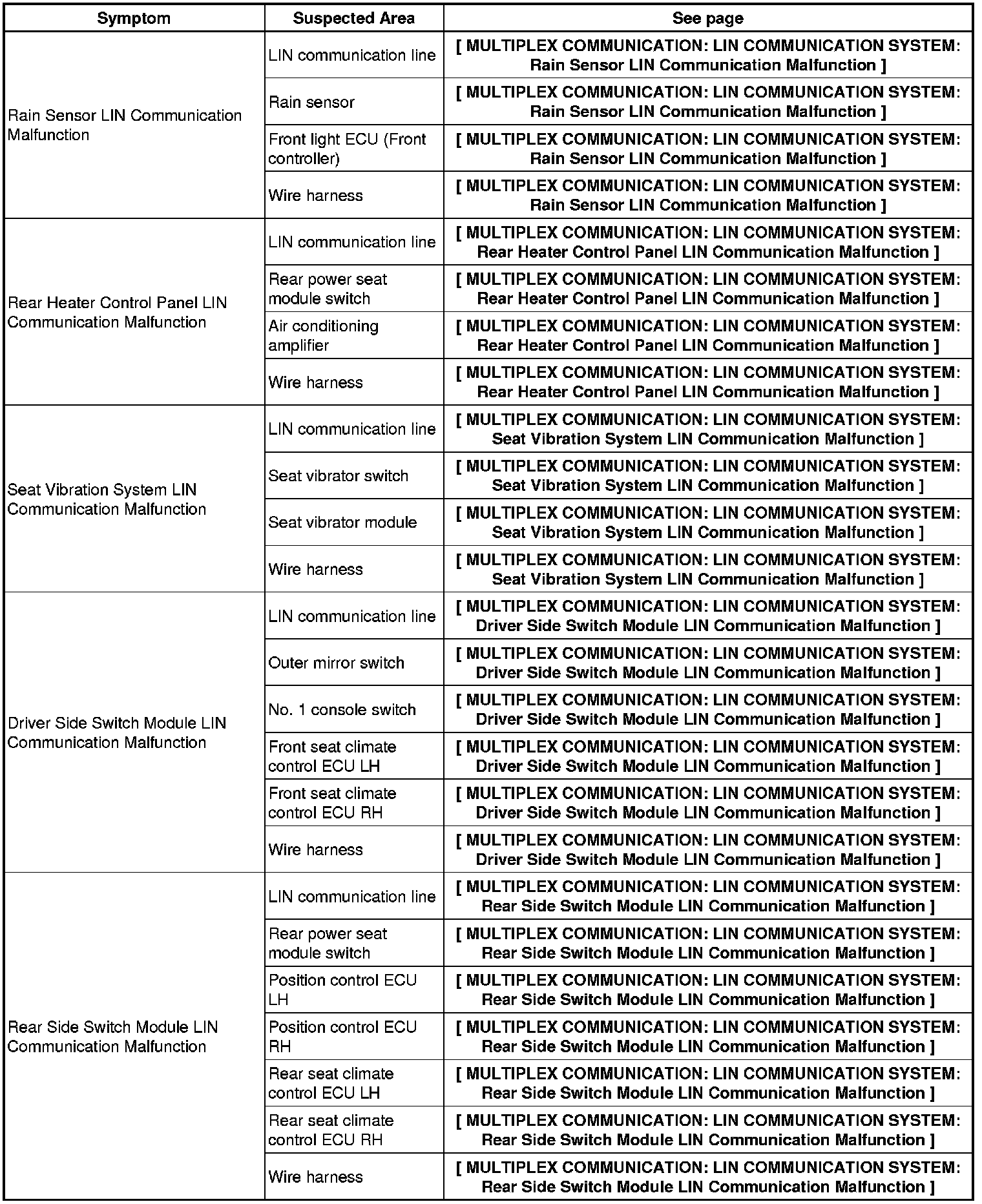

* Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
* Problem symptoms may occur if the electric power control system's functions malfunction. Follow the HOW TO PROCEED WITH TROUBLESHOOTING procedures.
* Inspect the fuses and relays related to the system before inspecting the suspected areas below.
LIN communication system
