Alignment
SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

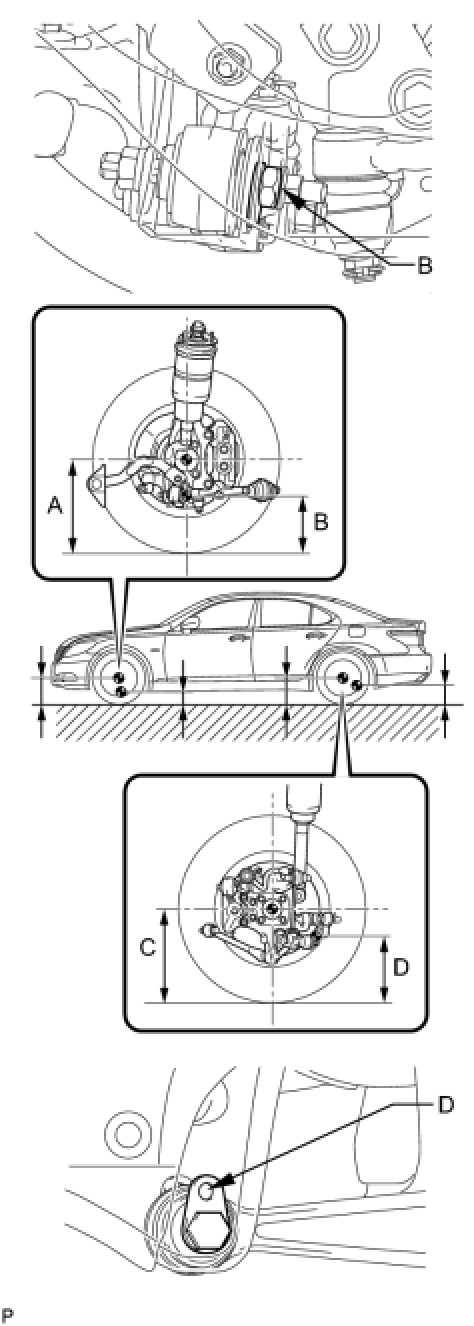

MEASURE VEHICLE HEIGHT (w/o Air Suspension) AWD
Measuring points:
A
Ground clearance of front wheel center
B
Ground clearance of head center of bolt used to install the front No. 1 suspension lower arm to the front suspension member
C
Ground clearance of rear wheel center
D
Ground clearance of pit center of the attachment rear suspension arm

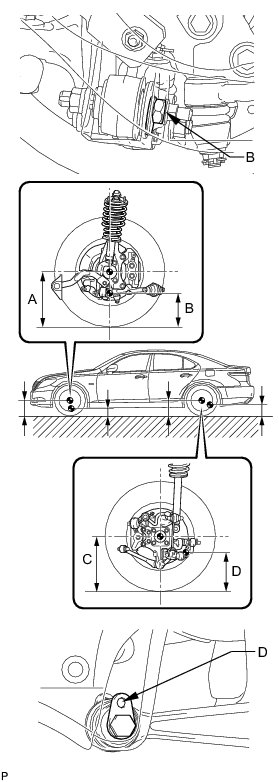

MEASURE VEHICLE HEIGHT (w/ Air Suspension) AWD
Measuring points:
A
Ground clearance of front wheel center
B
Ground clearance of head center of bolt used to install the front No. 1 suspension lower arm to the front suspension member
C
Ground clearance of rear wheel center
D
Ground clearance of pit center of the attachment rear suspension arm

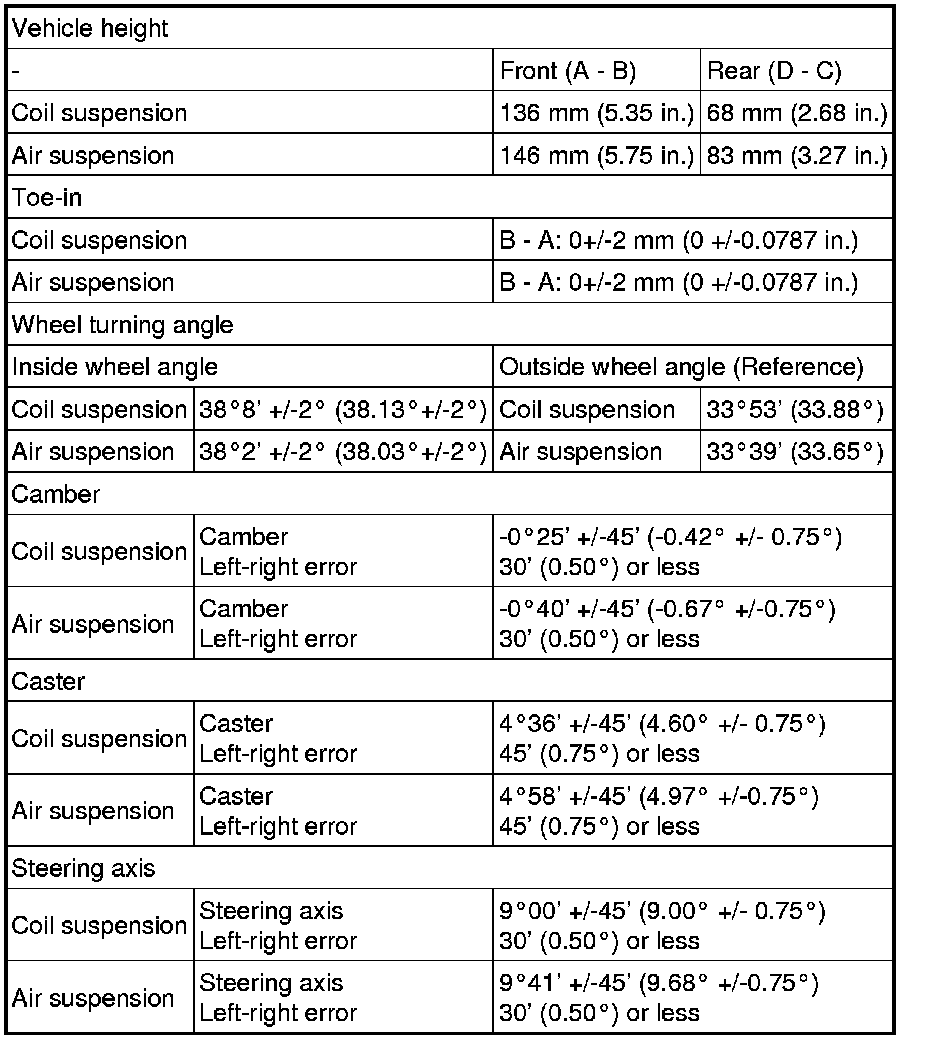

Front wheel alignment (for AWD)

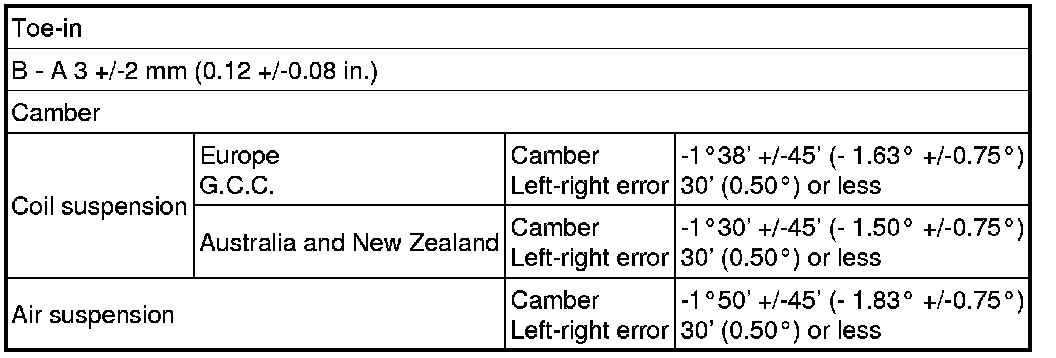

Rear wheel alignment

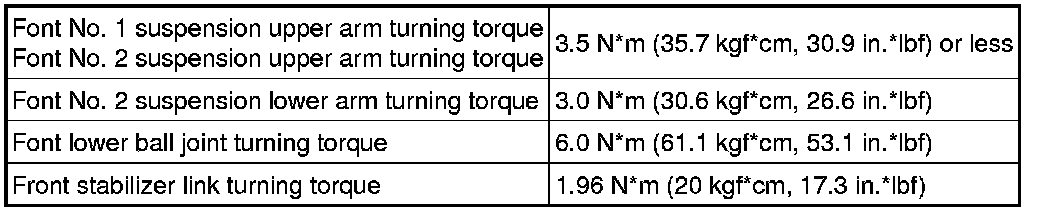

Front suspension (for AWD)

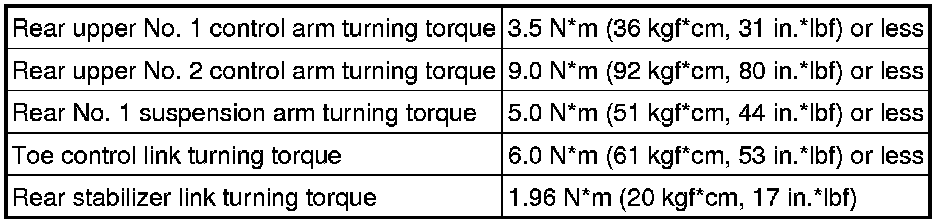

Rear suspension
