Service Data
SERVICE SPECIFICATIONS: AA80F AUTOMATIC TRANSMISSION: SERVICE DATA

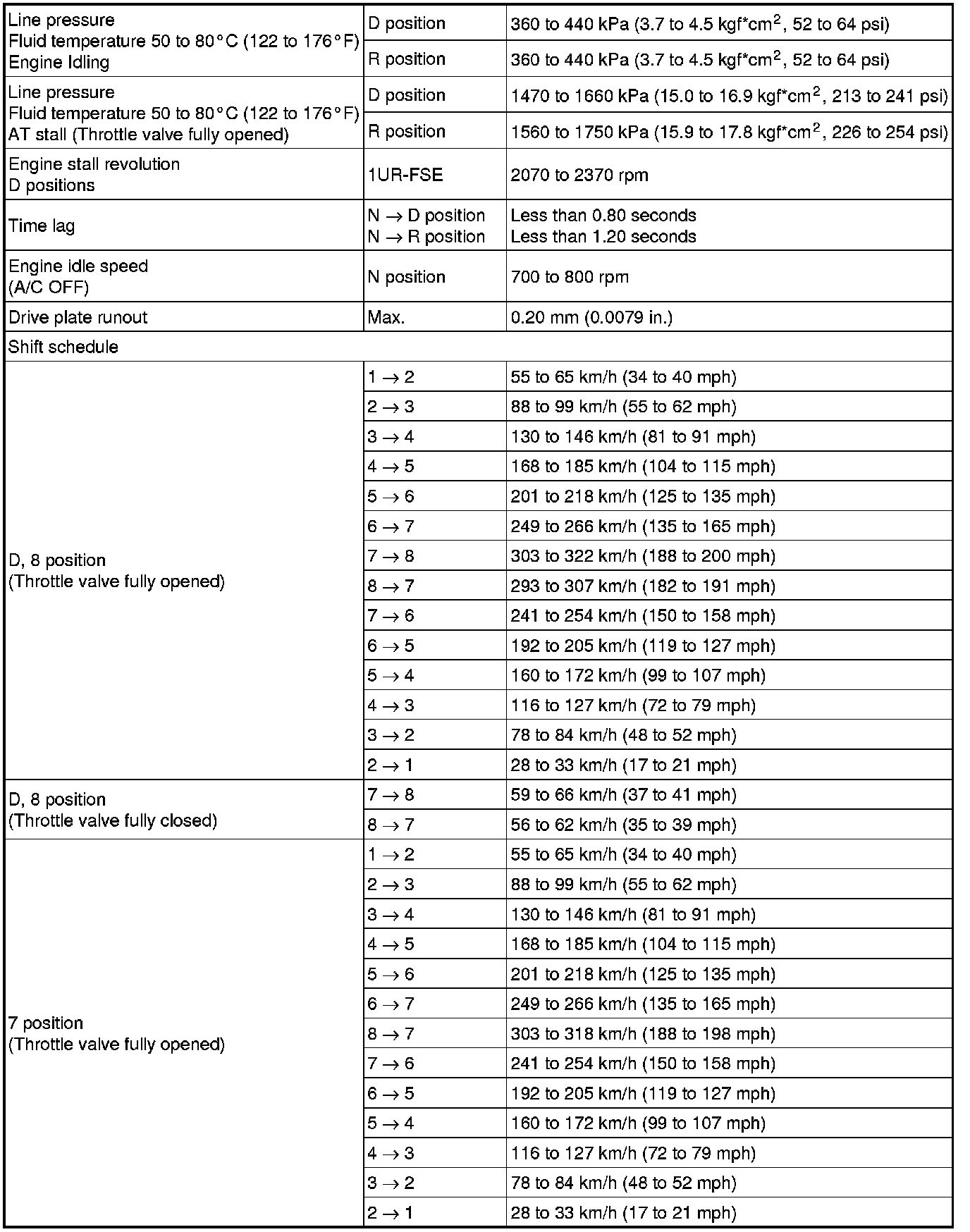

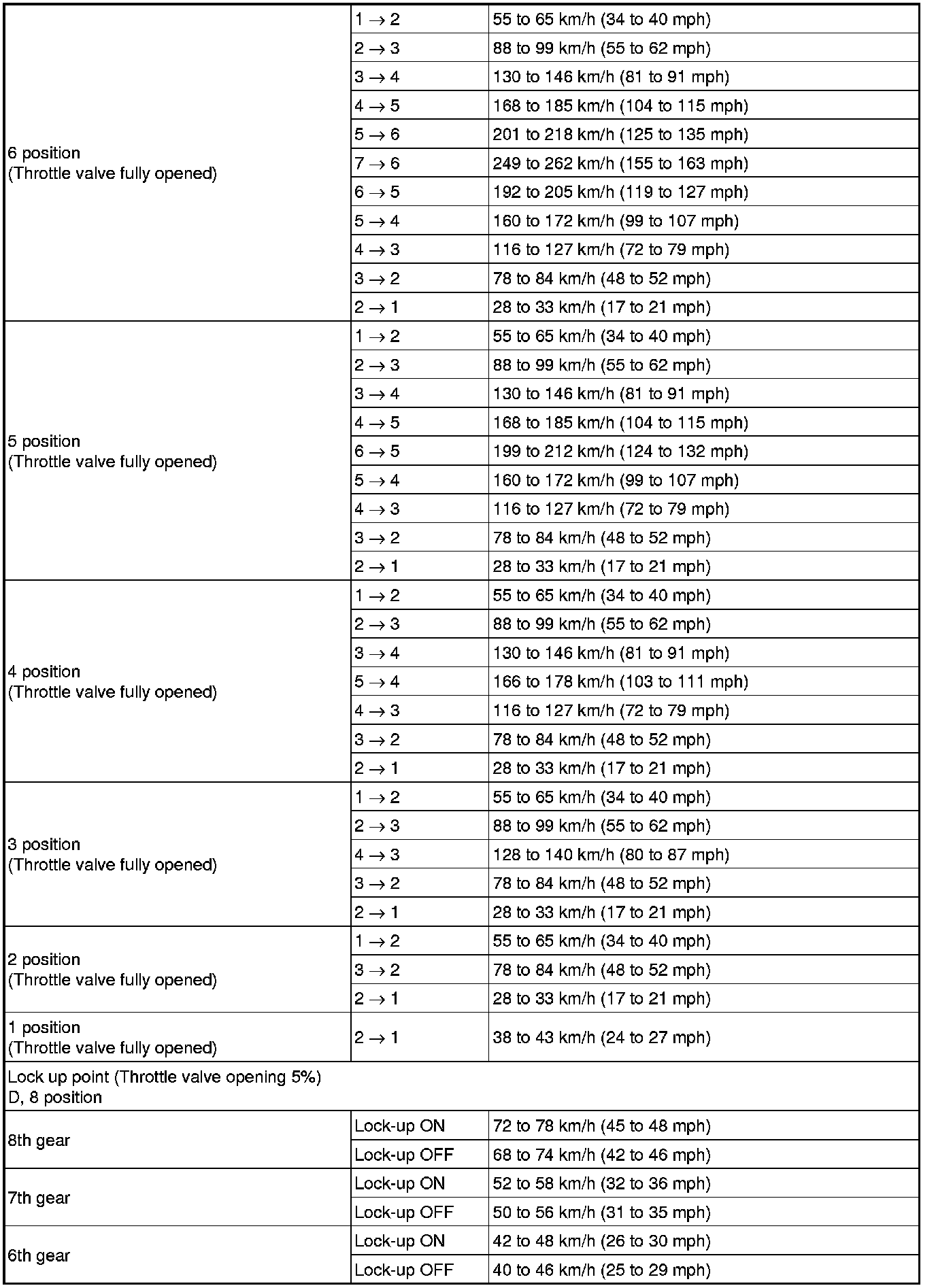

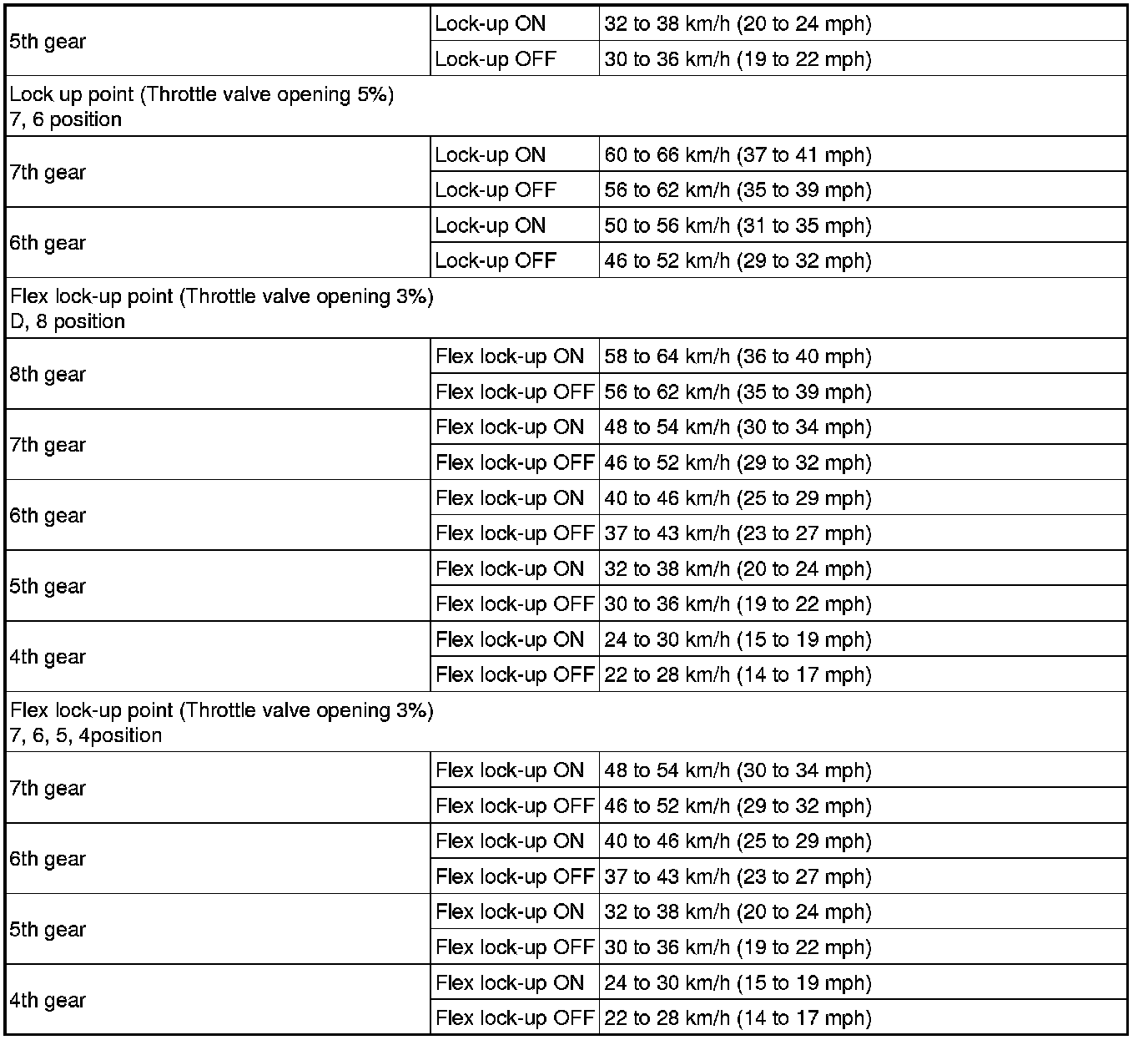

Automatic Transmission Assembly
NOTICE:
* All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
* If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

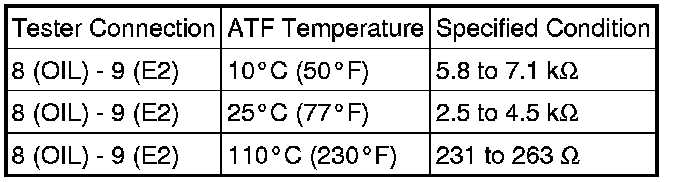

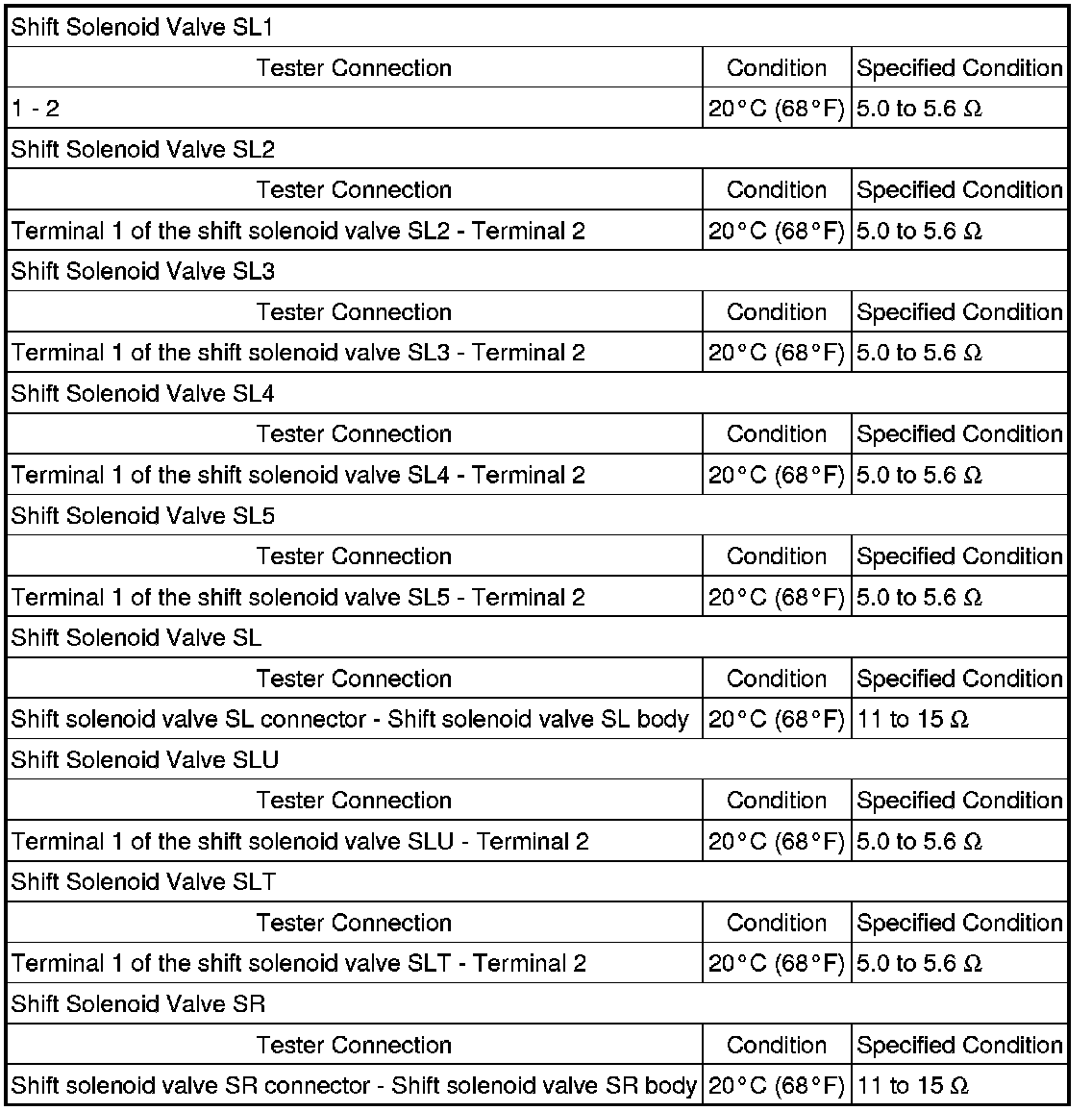

Transmission Wire

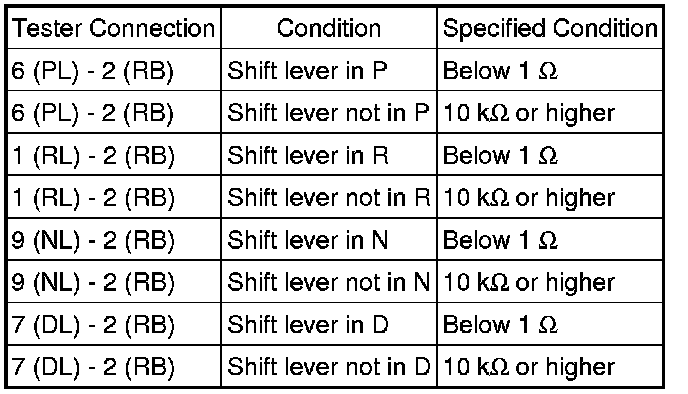

Park/Neutral Position Switch
Valve Body Assembly

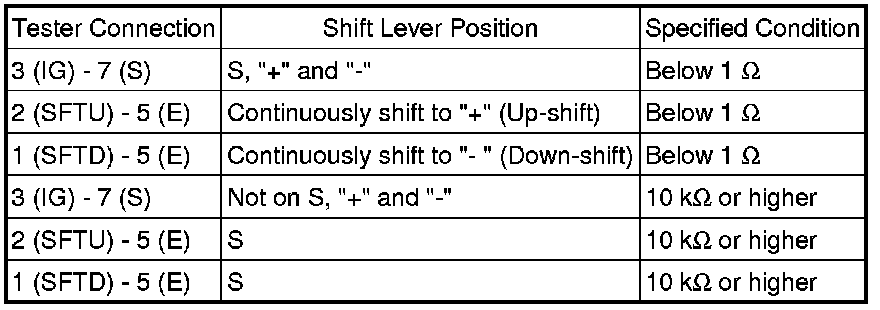

Transmission Control Switch
NOTICE:
* All shift point values indicated in the above tables are actual values. Therefore, if checking a shift point with a chassis dynamometer, keep in mind that there is a range of error in the chassis dynamometer indication.
* If checking a shift point against the speed indicated on the speedometer, remember to consider the speedometer correction rate and range of error in the tester indication.

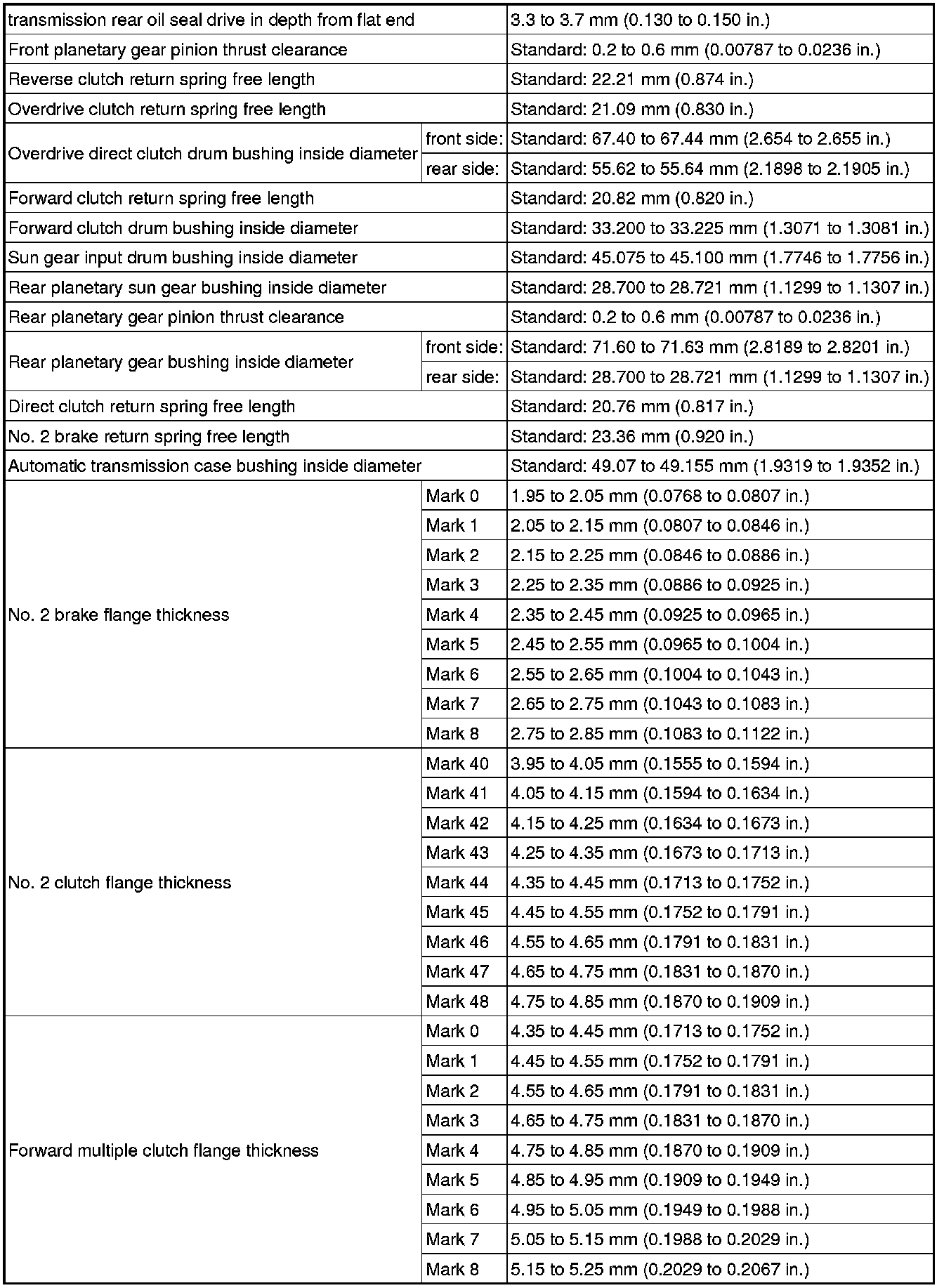

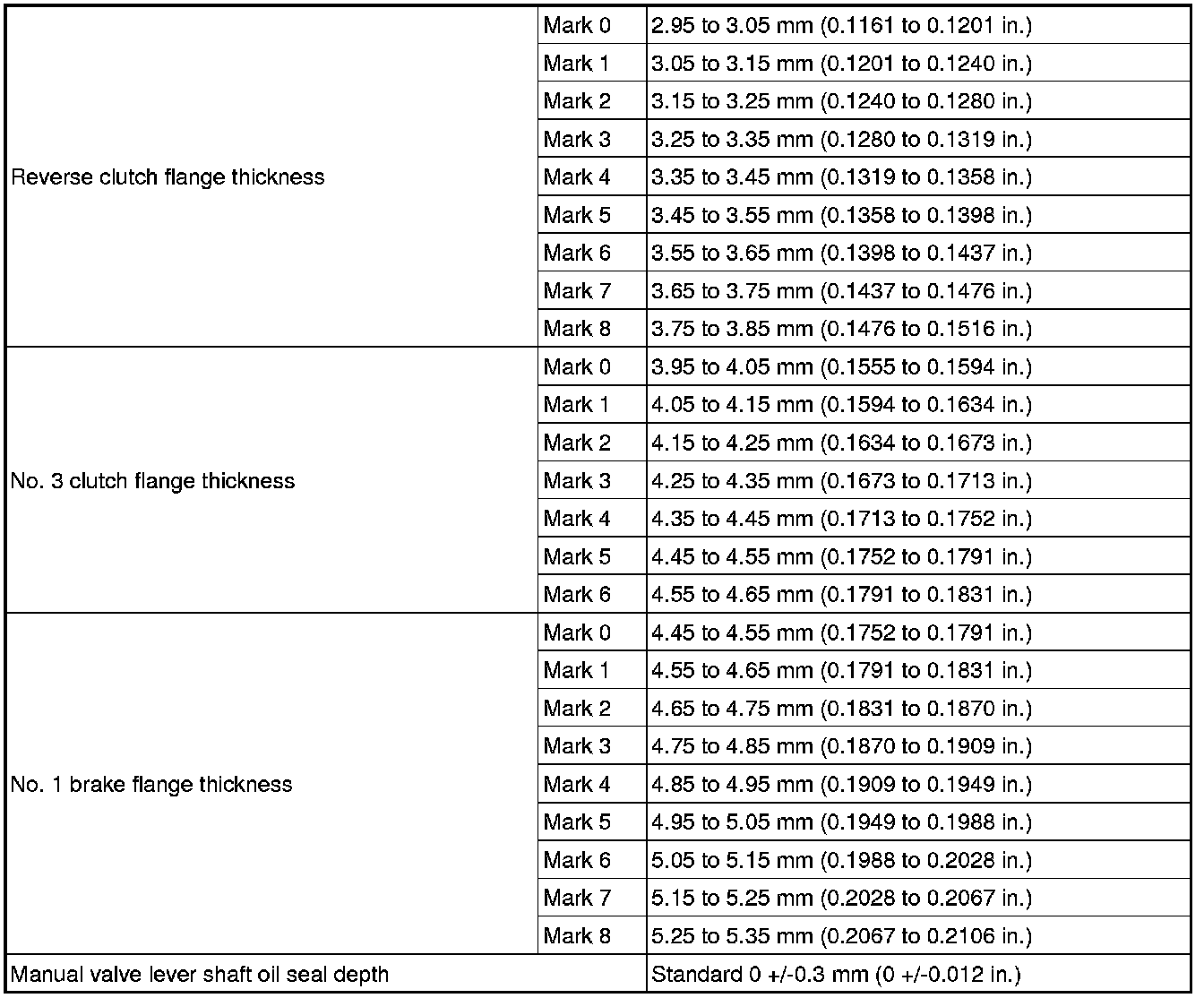

Automatic Transmission Unit

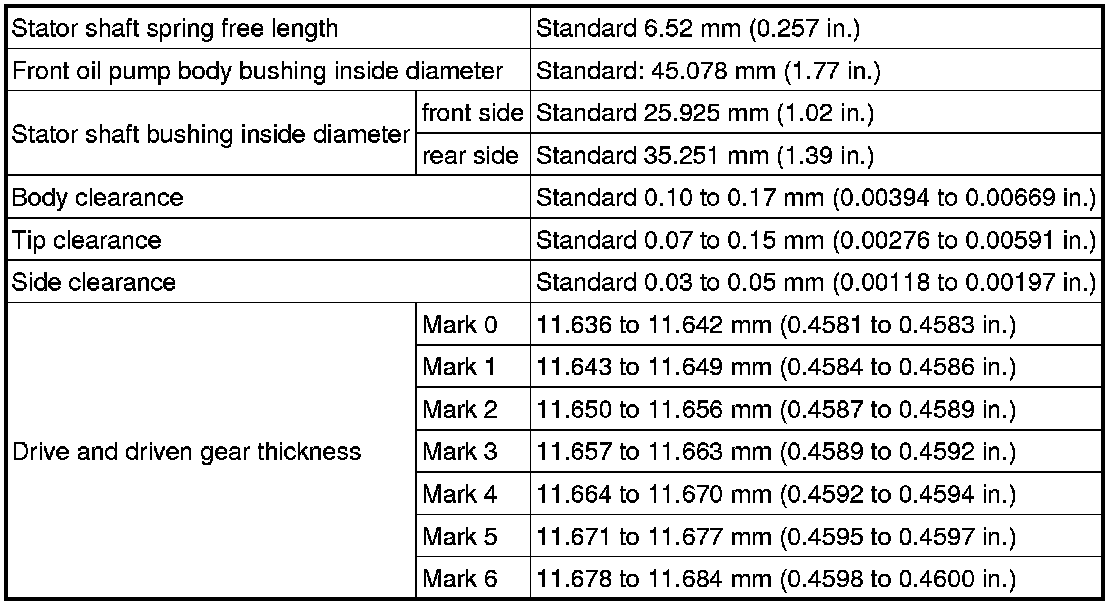

Oil Pump
