Intake Manifold










Intake Manifold 21 Nm (214 kgf-cm, 15 ft-lbf)

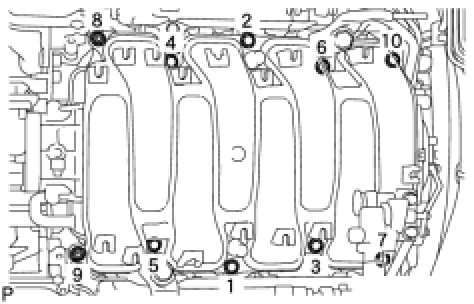

Temporarily install the intake manifold with the 2 nuts and 8 bolts. Then tighten the 2 nuts and 8 bolts uniformly.
