Object Recognition Ecu: Installation: Installation

  1. INSTALL OBJECT RECOGNITION ECU

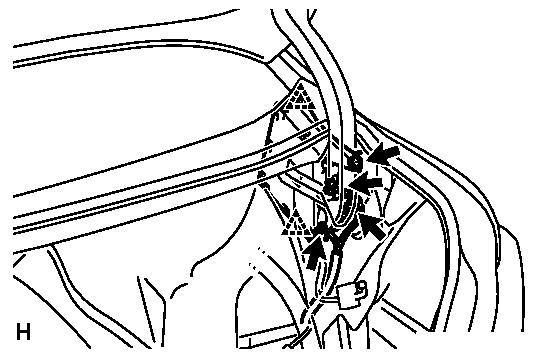

    Fig 1: Identifying Object Recognition ECU Bolts
    GTY272690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Attach the 2 clips to install the ECU.
    2. Install the 2 bolts.

      Torque: 7.4 N*m (76 kgf*cm, 66 in.*lbf)

    3. Connect the 2 connectors.
      NOTE: Do not use an ECU which has been dropped or subjected to any strong shocks.
  2. INSTALL LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH  . Refer to INSTALLATION - Step 4
  3. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER  . Refer to INSTALLATION - Step 8
  4. INSTALL ROPE HOOK  . Refer to INSTALLATION - Step 14
  5. INSTALL NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY  . Refer to INSTALLATION - Step 10
  6. INSTALL REAR FLOOR FINISH PLATE  . Refer to INSTALLATION - Step 6
  7. INSTALL DECK TRIM SIDE BOARD RH  . Refer to INSTALLATION - Step 12
  8. INSTALL ROPE HOOK ASSEMBLY  . Refer to INSTALLATION - Step 13
  9. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY  . Refer to INSTALLATION - Step 15
  10. ADJUST OBJECT RECOGNITION CAMERA  See step  1
