Windshield Glass: Components: Illustration

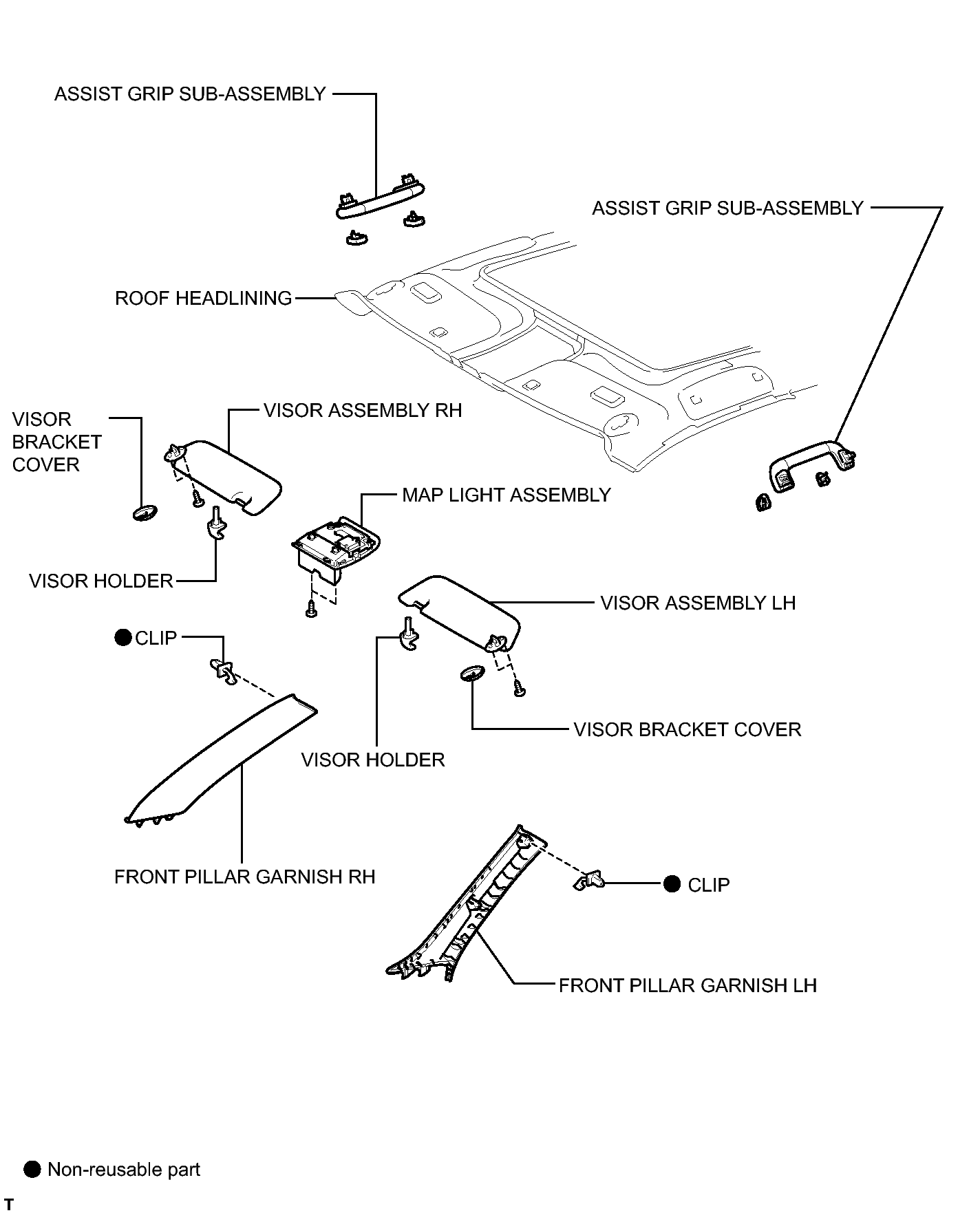

Fig 1: Identifying Windshield Glass Replacement Components (1 Of 5)
GTY272918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Windshield Glass Replacement Components (2 Of 5)
GTY287077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

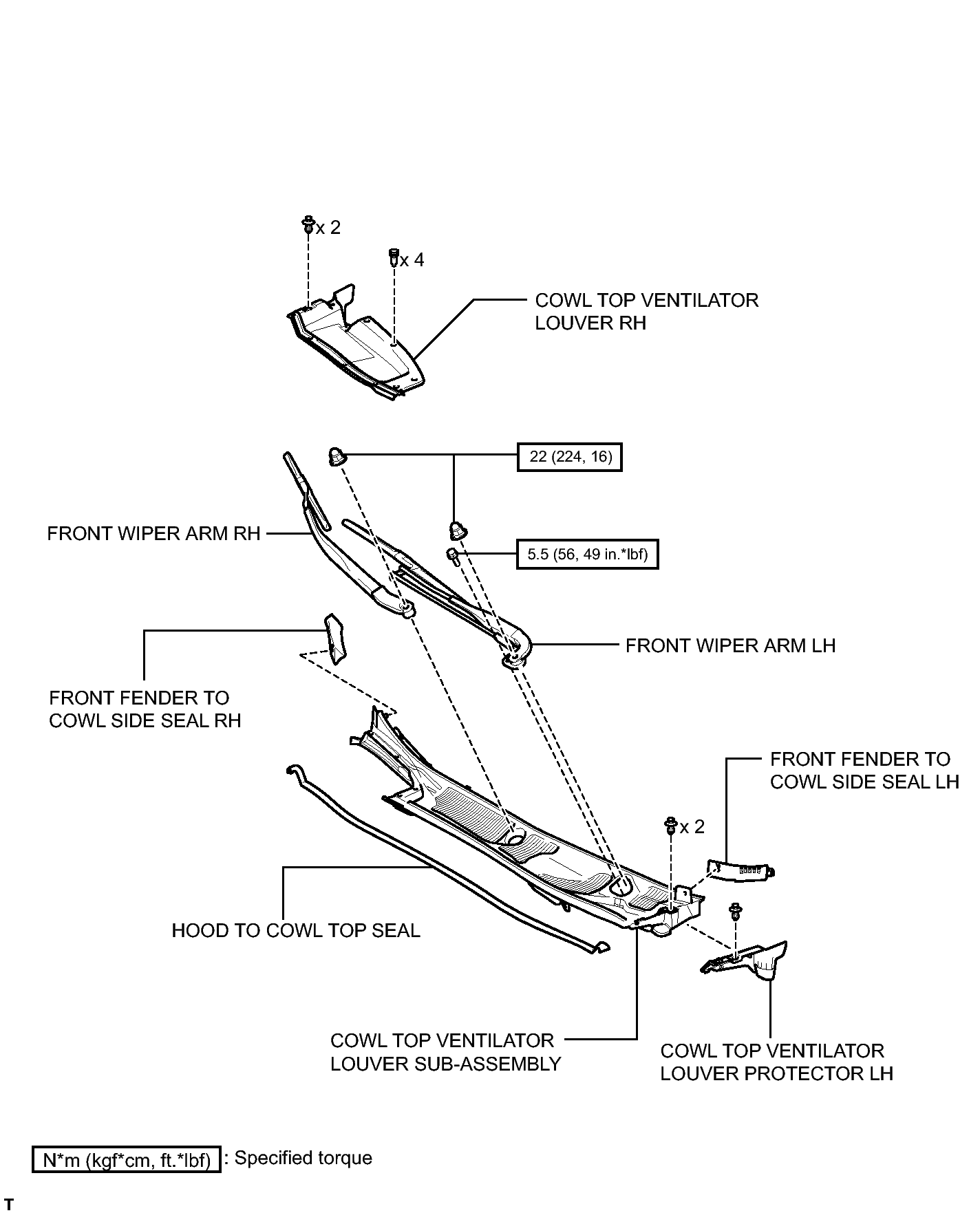

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (3 Of 5)
GTY273372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

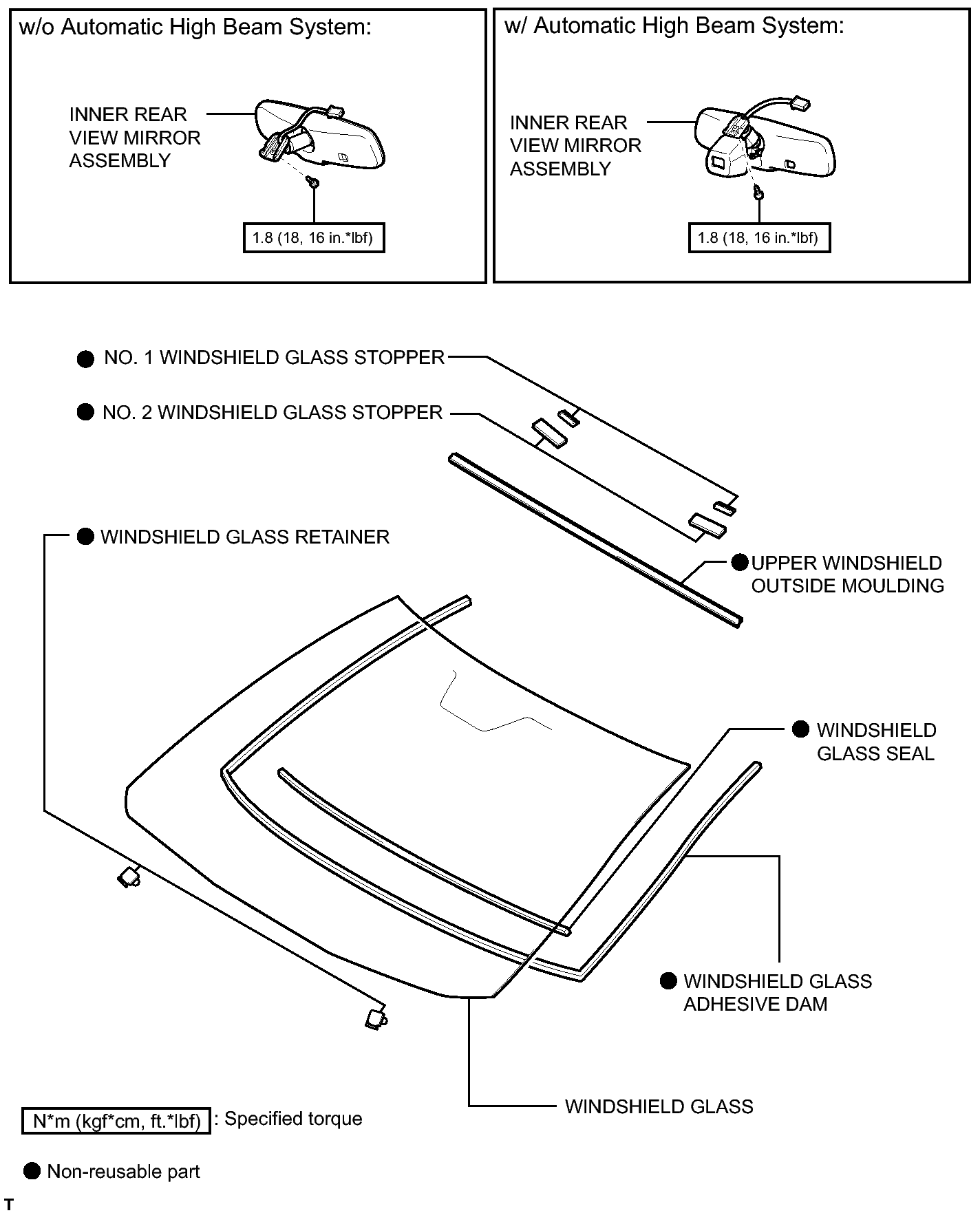

Fig 1: Identifying Windshield Glass Replacement Components With Torque Specifications (4 Of 5)
GTY284808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

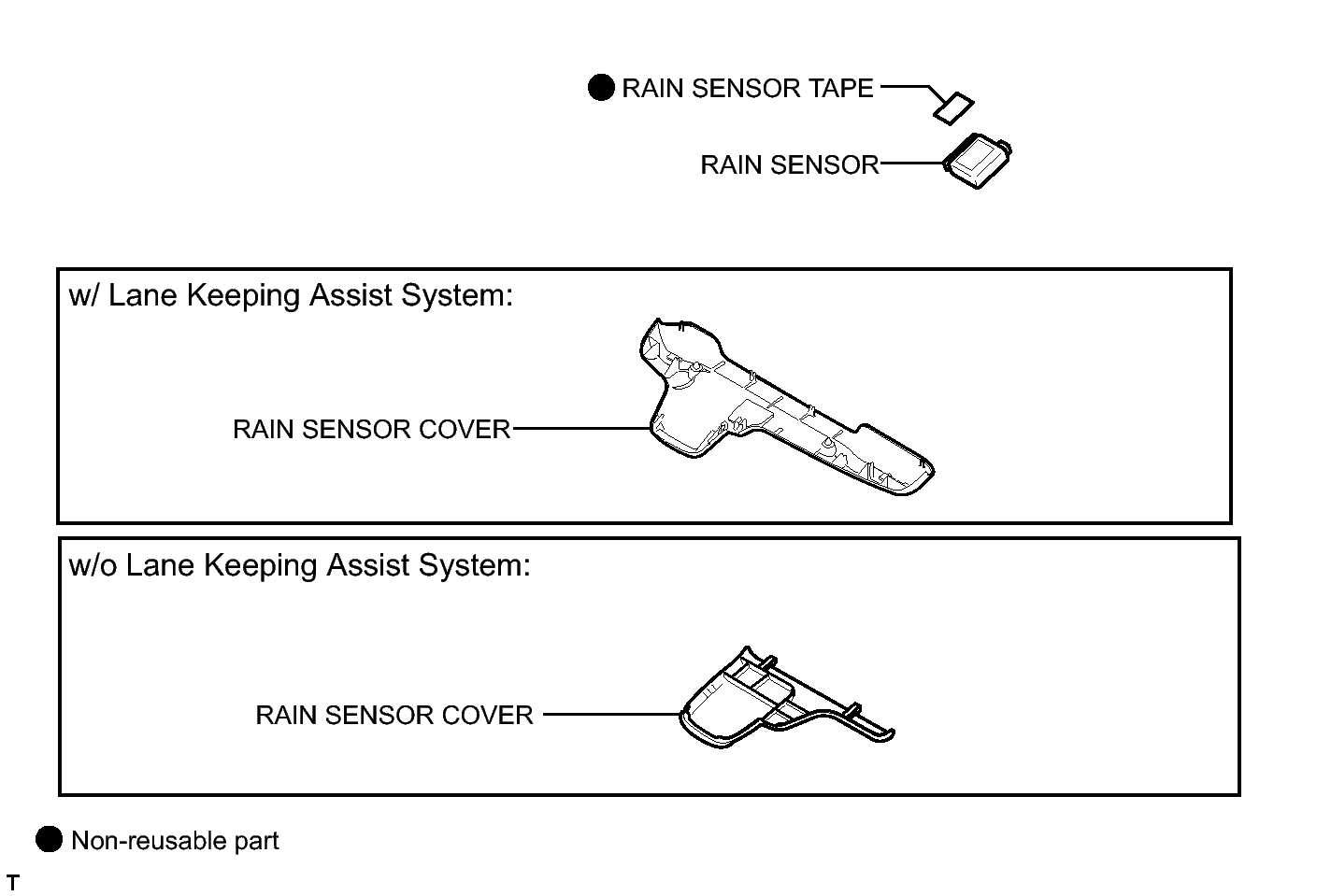

Fig 1: Identifying Windshield Glass Replacement Components (5 Of 5)
GTY275353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
