Brake Pedal Stroke Sensor: Removal: Removal

NOTE:

While the battery is connected, even if the engine switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch turns on. Therefore during servicing of the brake system components, do not operate the brake pedal and open/close the doors while the battery is connected.

  1. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 1
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    NOTE:
    • w/ Navigation System (for HDD):

      After the engine switch is turned off, the display and navigation module display (HDD navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

      Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal

      Condition Waiting Time
      Vehicle enrolled in safety connect system 6 minutes
      Vehicle not enrolled in safety connect system 1 minute
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
  3. REMOVE INSTRUMENT PANEL FINISH PANEL END LH  . Refer to REMOVAL - Step 1
  4. REMOVE INSTRUMENT SIDE PANEL LH  . Refer to REMOVAL - Step 8
  5. REMOVE NO. 1 INSTRUMENT CLUSTER MOLDING  . Refer to REMOVAL - Step 9
  6. REMOVE STEERING COLUMN COVER  . Refer to REMOVAL - Step 9
  7. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY  . Refer to REMOVAL - Step 2
  8. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  9. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  10. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 10
  11. REMOVE DRIVER SIDE KNEE AIRBAG ASSEMBLY  . Refer to REMOVAL - Step 11
  12. REMOVE BRAKE PEDAL STROKE SENSOR ASSEMBLY
    1. Remove the 2 bolts and sensor.

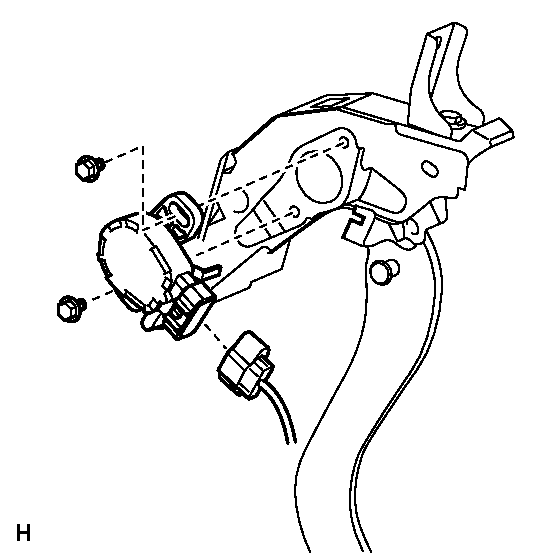

      Fig 1: Identifying Brake Pedal Stroke Sensor Connector And Bolts
      GTY138497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the sensor connector.
