Skid Control Buzzer: Components: Illustration

Fig 1: Identifying Skid Control Buzzer Replacement Components (1 Of 2) With Torque Specifications
GTY289475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

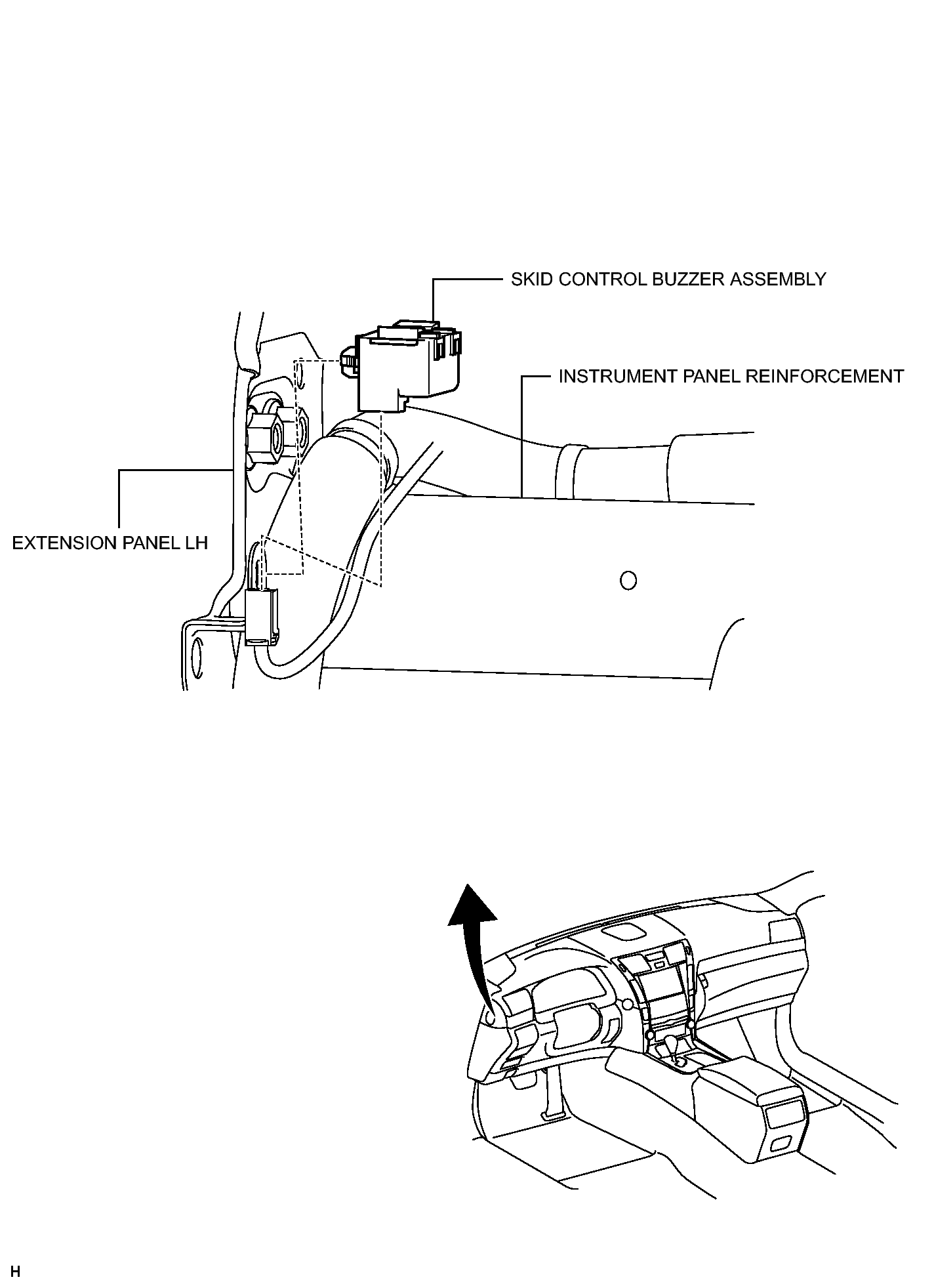

Fig 1: Identifying Skid Control Buzzer Replacement Components (3 Of 3)
GTY131094Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
