Electronically Controlled Transmission and A/T Indicator: Notes

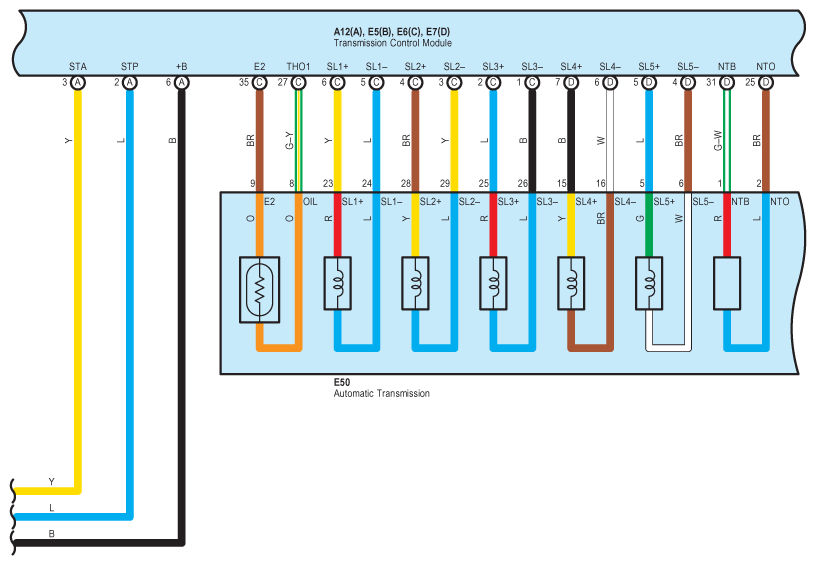

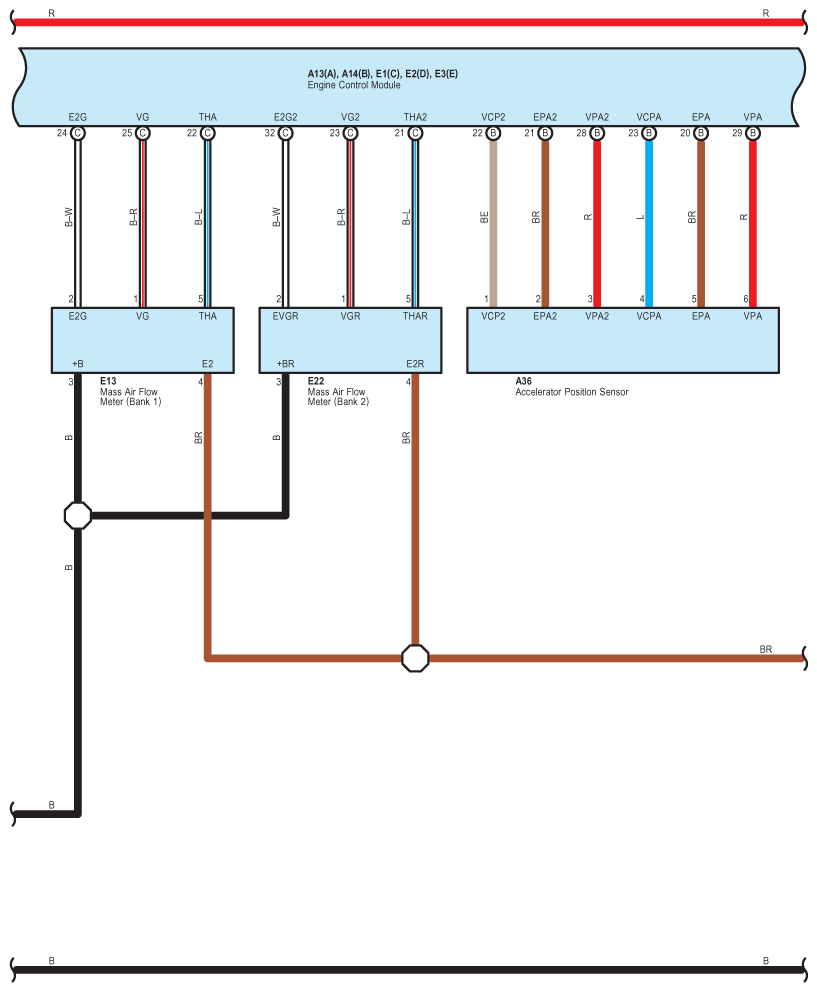

Fig 1: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (1 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

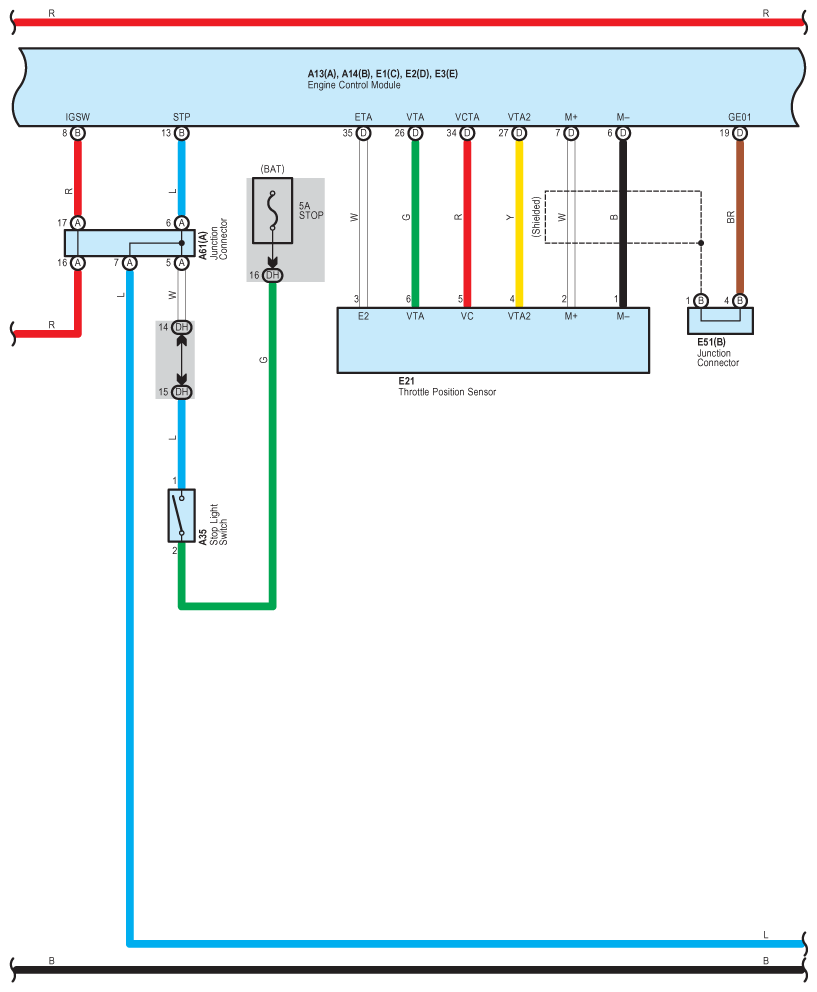

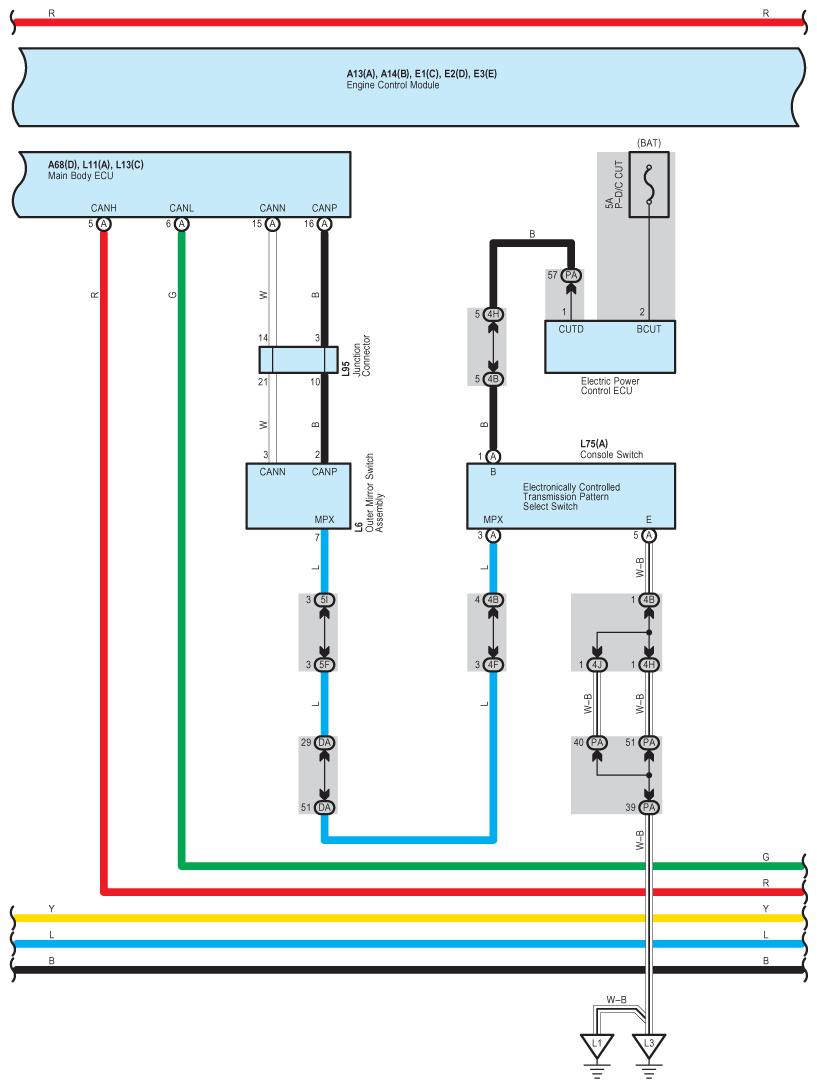

Fig 2: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (2 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

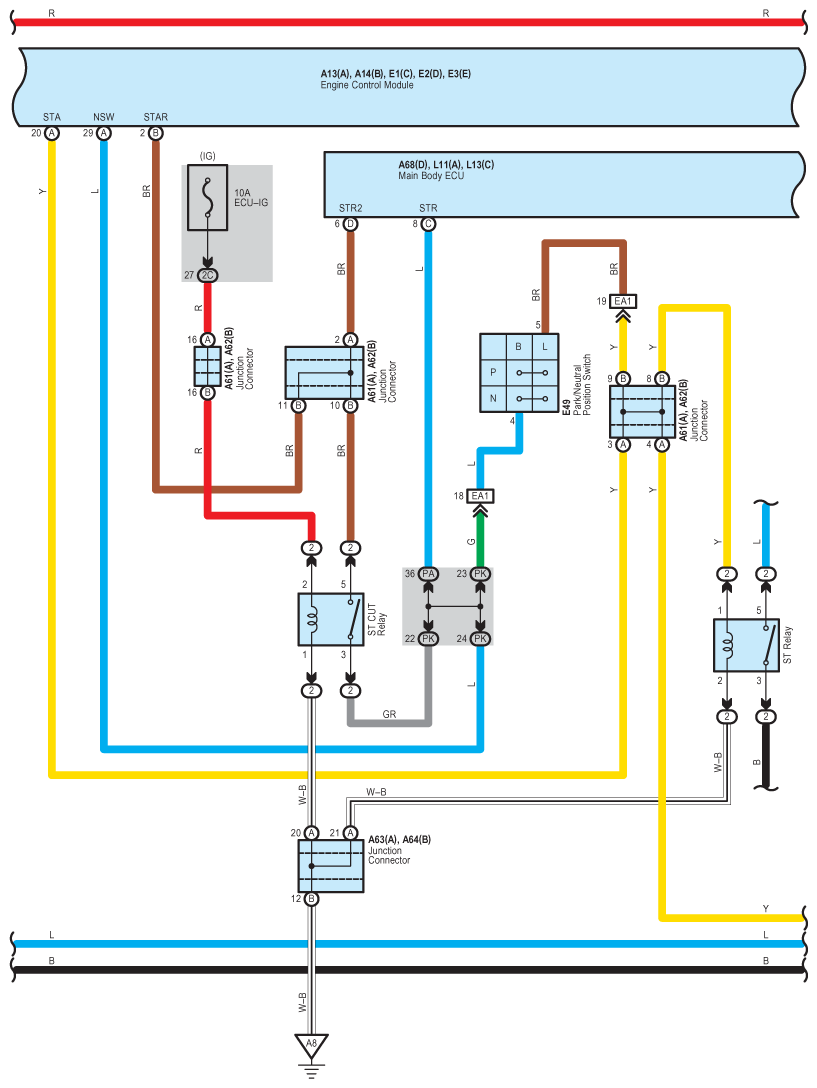

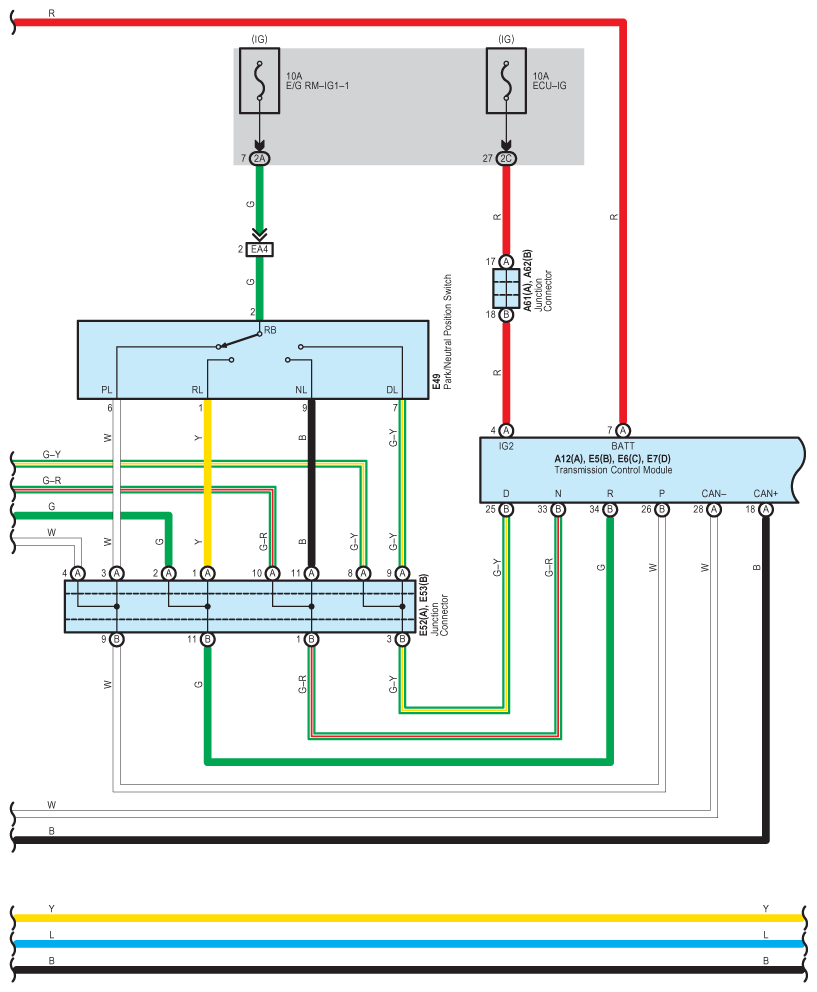

Fig 3: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (3 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

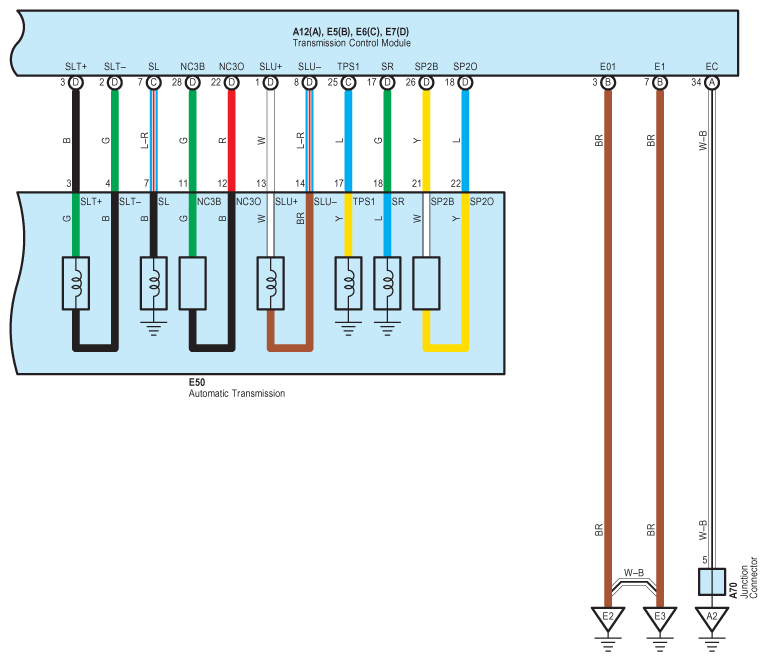

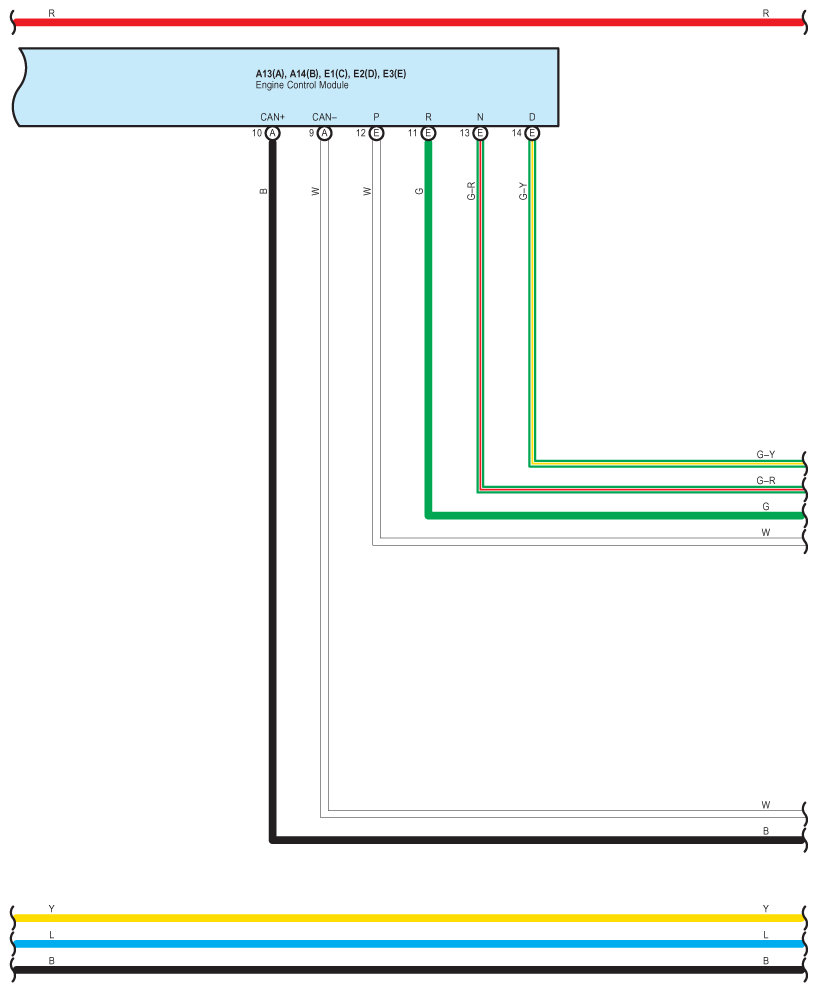

Fig 4: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (4 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

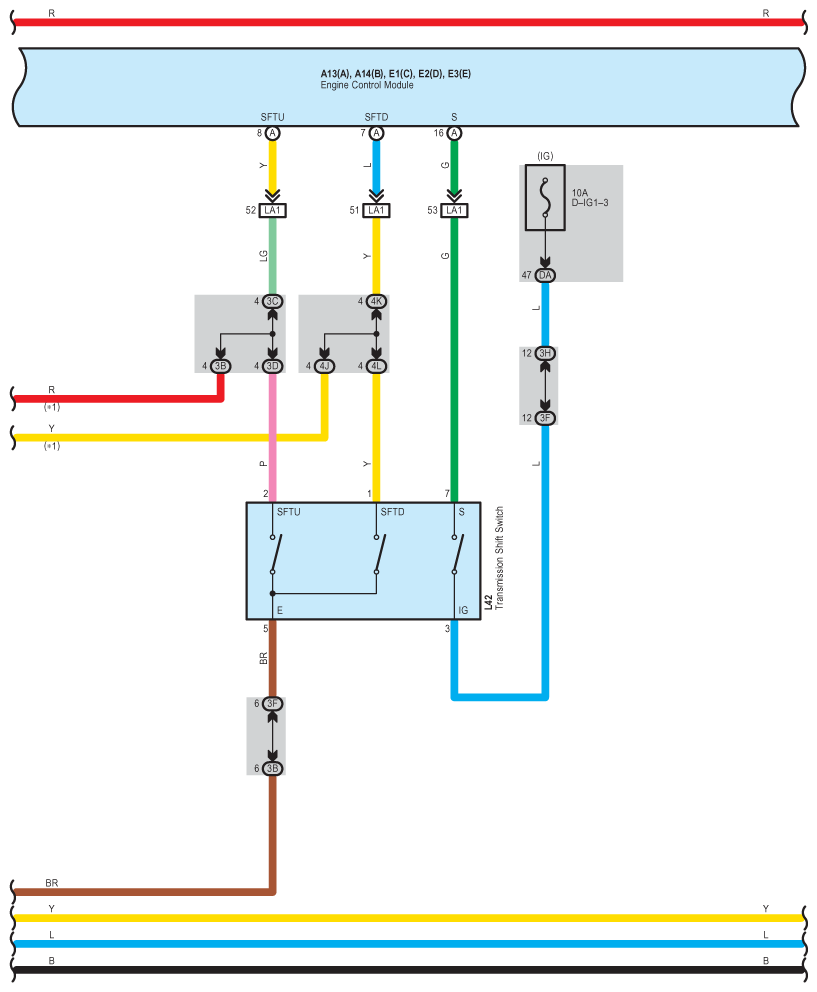

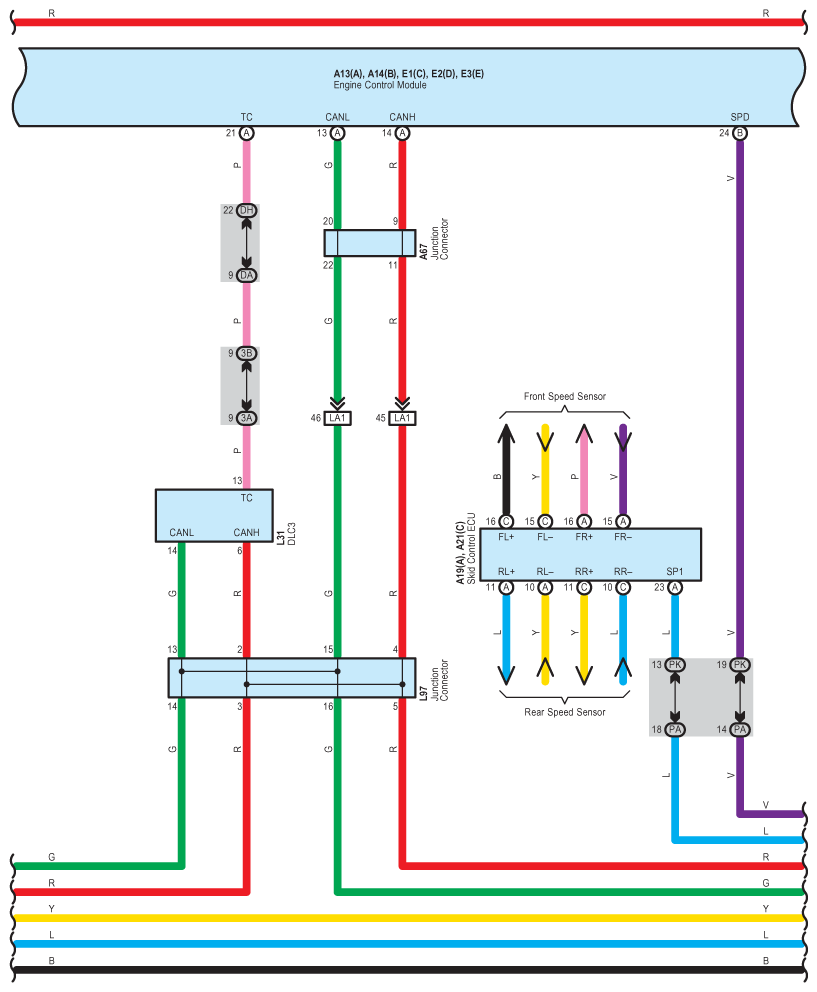

Fig 5: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (5 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

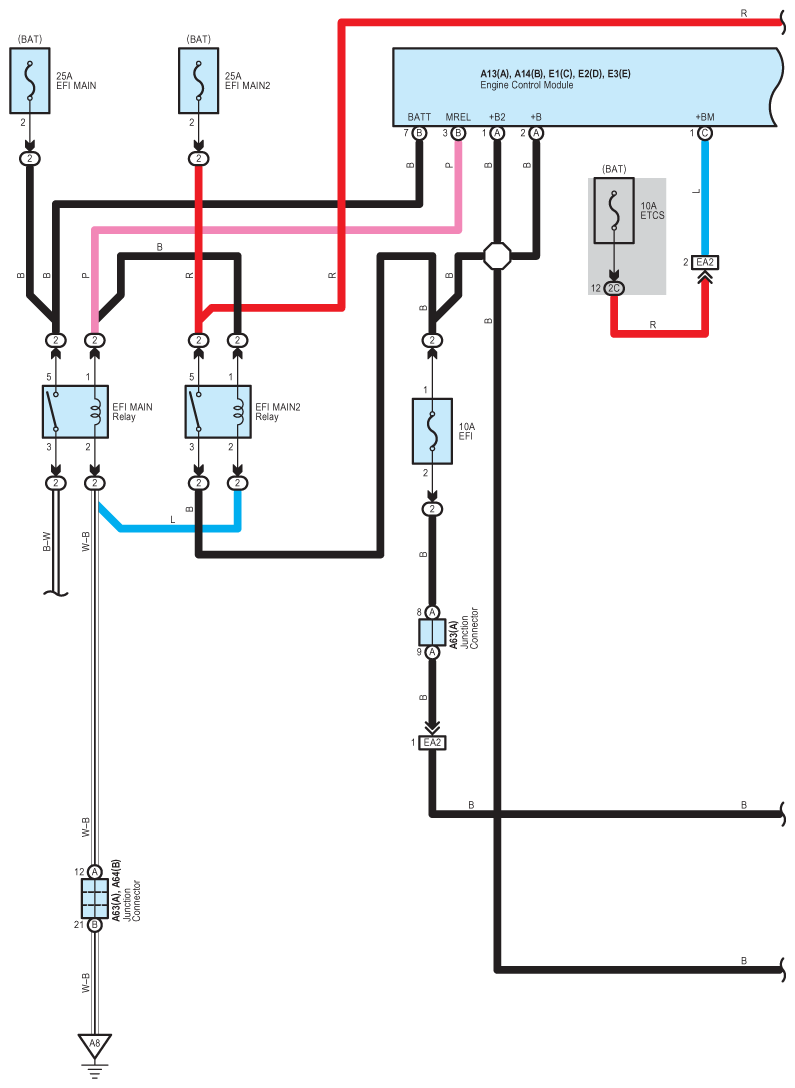

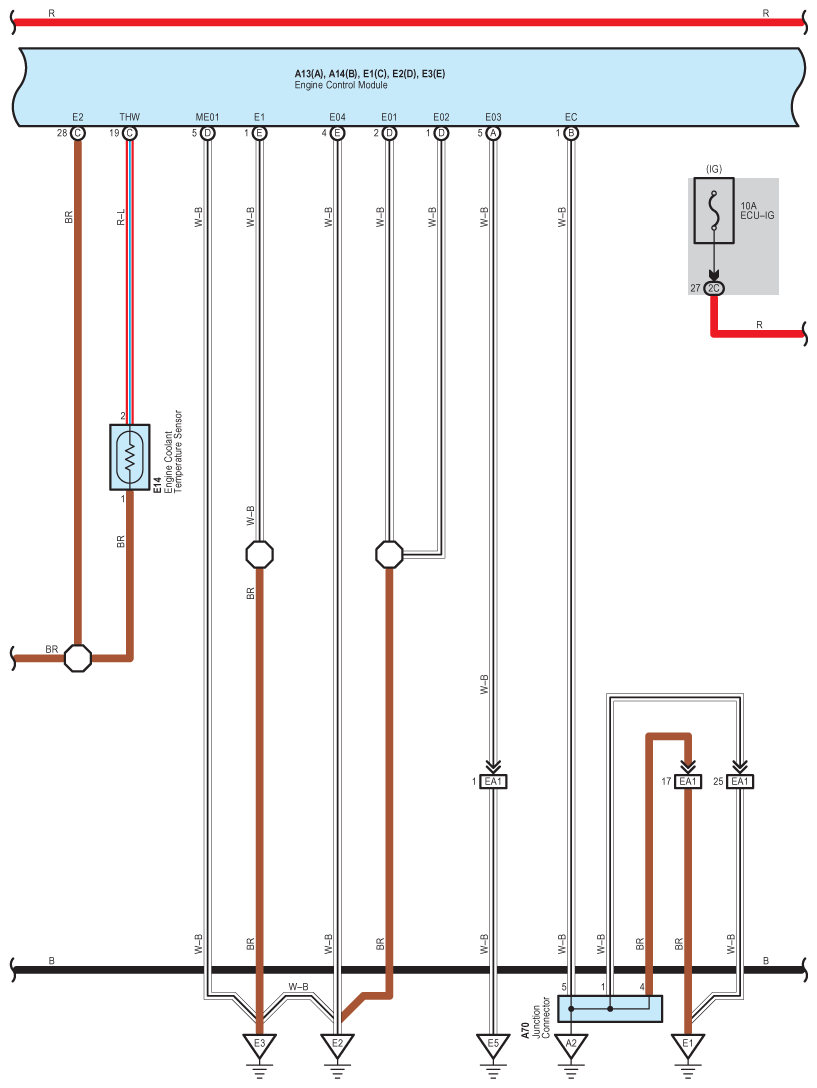

Fig 6: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (6 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

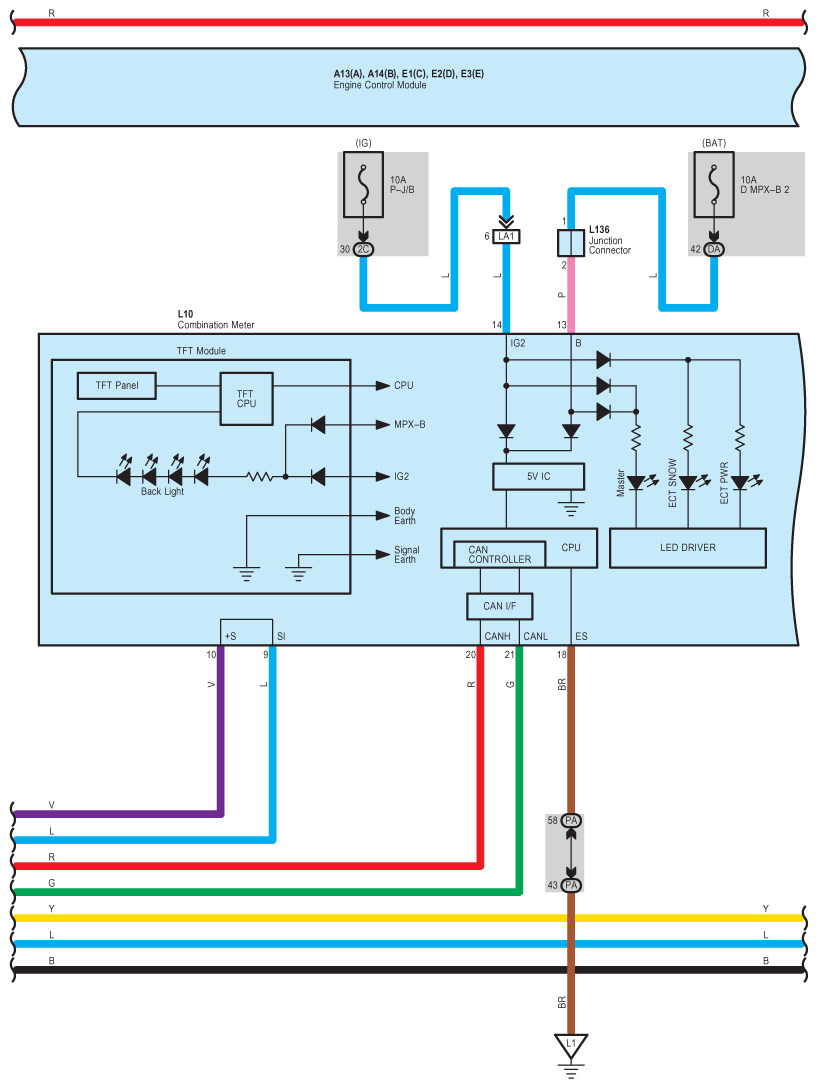

Fig 7: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (7 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

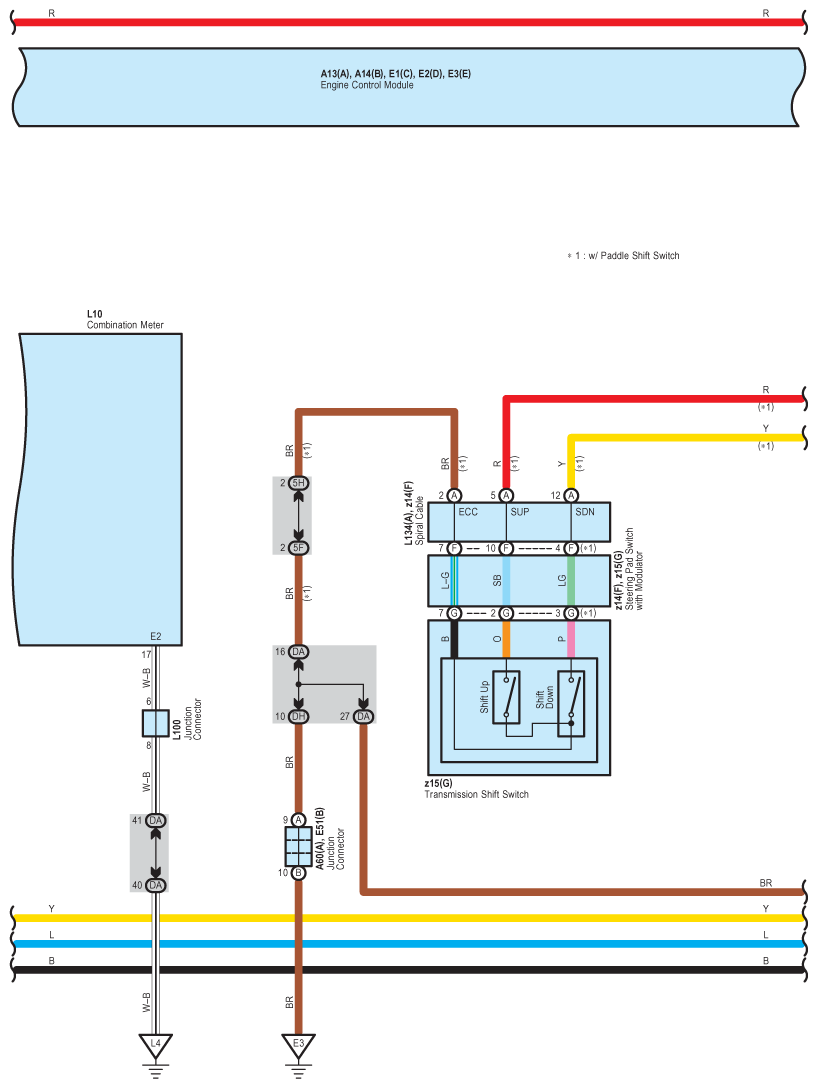

Fig 8: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (8 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (9 Of 14)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (10 Of 14)

Fig 11: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (11 Of 14)

Fig 12: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (12 Of 14)

Fig 13: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (13 Of 14)

Fig 14: Electronically Controlled Transmission And A/T Indicator - Wiring Diagram (14 Of 14)
