STARTER (For AWD): Installation: Installation

INSTALL STARTER ASSEMBLY

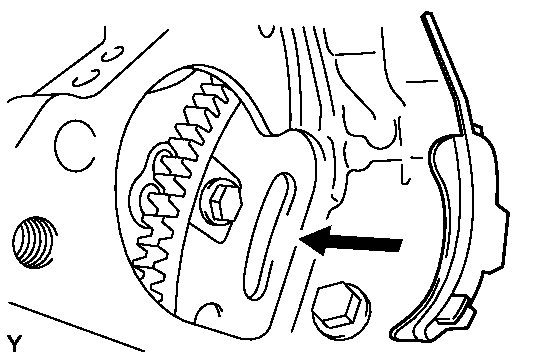

1. Install the flywheel housing side cover.

  Fig 1: Identifying Flywheel Housing Side Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the starter connector.

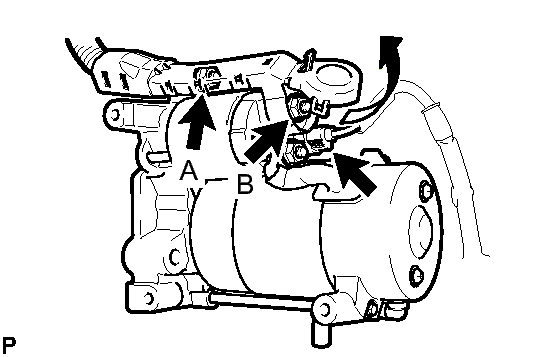

  Fig 2: Identifying Starter Wire With Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the starter wire with the 2 nuts.
  for nut A

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  for nut B

  Torque: 9.8 N*m (100 kgf*cm, 88 in.*lbf)
4. Close the terminal cap.
5. Install the starter with the 2 bolts.
  Torque: 37 N*m (377 kgf*cm, 27 ft.*lbf)

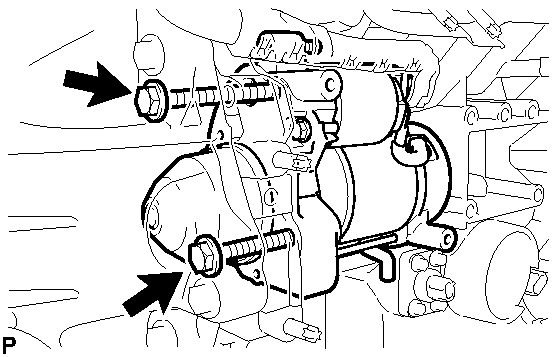

  Fig 3: Identifying Starter And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

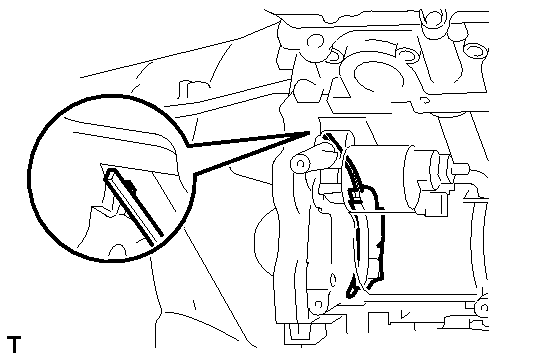

  NOTE: Make sure the flywheel housing cover is as shown.

  Fig 4: Identifying Flywheel Housing Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 EXHAUST MANIFOLD HEAT INSULATOR
1. Install the heat insulator with the 3 bolts.
  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

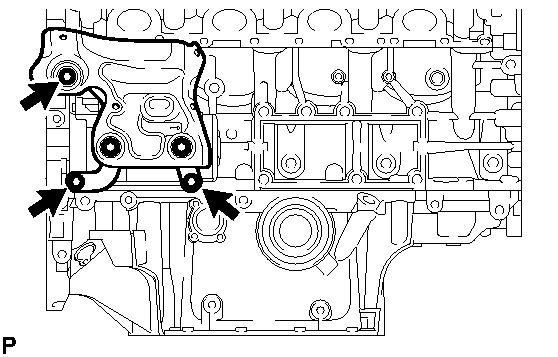

  Fig 5: Identifying Heat Insulator And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT NO. 2 ENGINE MOUNTING BRACKET RH . Refer to INSTALLATION - Step 52
INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
1. Install the exhaust manifold RH. Refer to INSTALLATION .
