Fuel Pressure Sensor: Installation: Installation

INSTALL FUEL PRESSURE SENSOR
1. Install a new gasket to the fuel pressure sensor.
2. Using SST, install the fuel pressure sensor to the fuel delivery pipe.

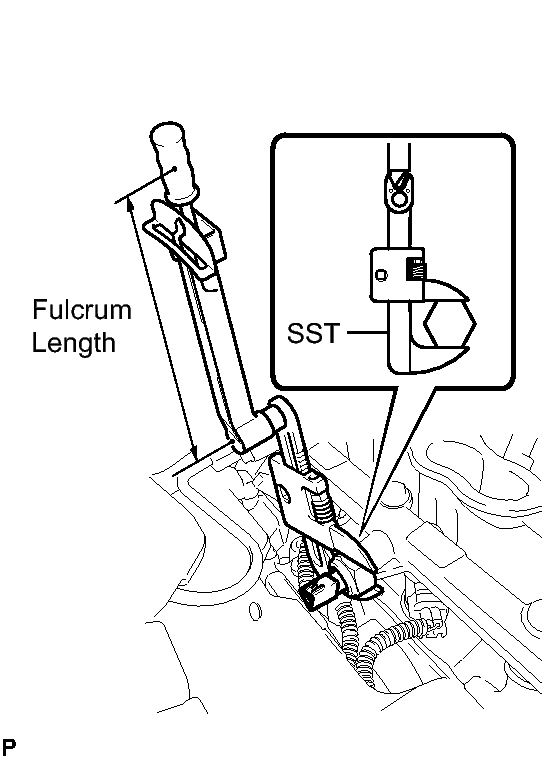

  Fig 1: Identifying Fulcrum Length
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  - SST: 09922-10010
  without SST

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)
  NOTE:
  - Do not apply oil to threads of the pressure sensor and delivery pipe.
  - Do not allow foreign matter to enter the pipe during the installation.
  HINT:
  - Use a torque wrench with a fulcrum length of 30 cm (11.8 in.).
  - Make sure SST and torque wrench are connected in a straight line.
3. Connect the connector.

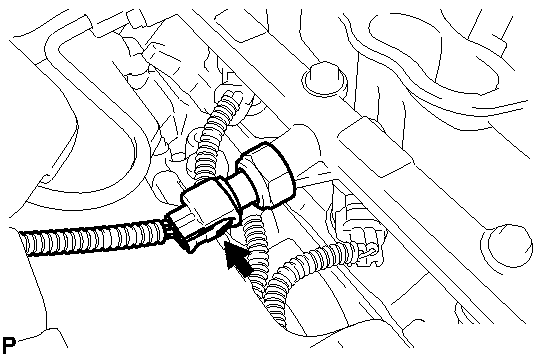

  Fig 2: Identifying Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY

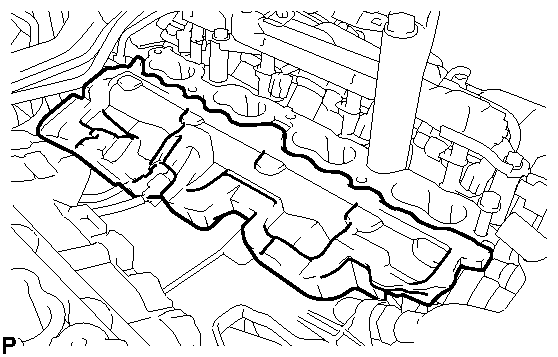

Fig 3: Identifying No. 2 Engine Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL INTAKE MANIFOLD
1. Install the intake manifold. Refer to INSTALLATION .
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform initialization. Refer to INITIALIZATION .
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable to the negative (-) battery terminal.
ADD ENGINE COOLANT . Refer to REPLACEMENT - Step 6
INSPECT FOR COOLANT LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
INSPECT FOR FUEL LEAK . Refer to ON-VEHICLE INSPECTION - Step 1
