Injector Driver: Installation: Installation

  1. INSTALL INJECTOR DRIVER
    NOTE:
    • Be careful not to drop or strike the injector driver.
    • The injector driver is grounded at the bolt and nut. To ensure that it is grounded, clean all oil and foreign matter from the installation areas of the injector driver and engine before installing the injector driver.
    1. Install the 2 injector drivers to the bracket with the 8 nuts.

      Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

    2. Temporarily install the 2 injector drivers (with bracket) with the 2 bolts and 2 nuts.
    3. Tighten the 2 bolts and 2 nuts in the order shown.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

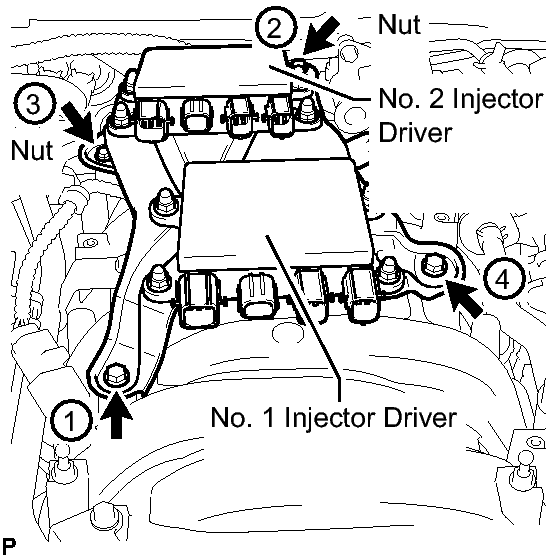

      Fig 1: Identifying Bolts And Nuts Tightening Order
      GTY123500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 8 injector driver connectors.

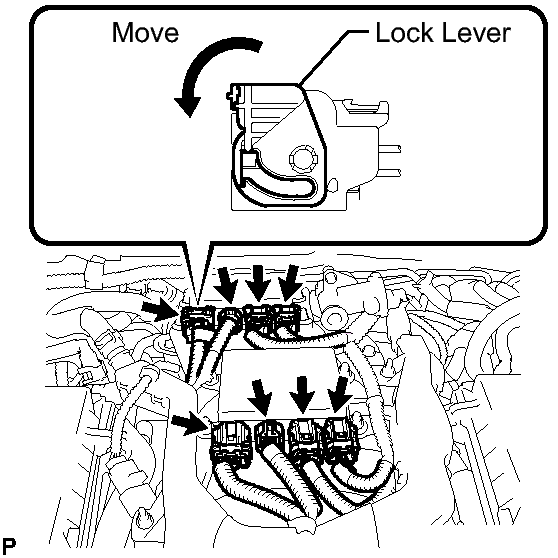

      Fig 2: Identifying Injector Driver Connectors
      GTY148234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the 6 connectors with wire harness locks and the 2 connectors without wire harness locks to the 2 injector drivers.
        NOTE: Connect the connector securely.

        HINT:

        Move the lock lever in the direction indicated by the arrow to lock the connector.

  2. CONNECT ENGINE WIRE  . Refer to INSTALLATION - Step 5
  3. INSTALL AIR CLEANER CAP LH
    1. Install the air cleaner cap LH.
  4. INSTALL AIR CLEANER CAP RH
    1. Install the air cleaner cap RH.
  5. INSTALL INTAKE AIR CONNECTOR PIPE  . Refer to INSTALLATION - Step 2
  6. INSTALL NO. 1 AIR CLEANER INLET  . Refer to INSTALLATION - Step 3
  7. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 8
  8. INSTALL ENGINE ROOM SIDE COVER LH  . Refer to INSTALLATION - Step 103
  9. INSTALL ENGINE ROOM SIDE COVER  . Refer to INSTALLATION - Step 102
  10. INSTALL AIR CLEANER INLET COVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 7
  11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  12. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 11
  13. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
