STARTER (For 2WD): Components: Illustration

Fig 1: Identifying Starter (For 2WD) Replacement Components With Torque Specifications (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

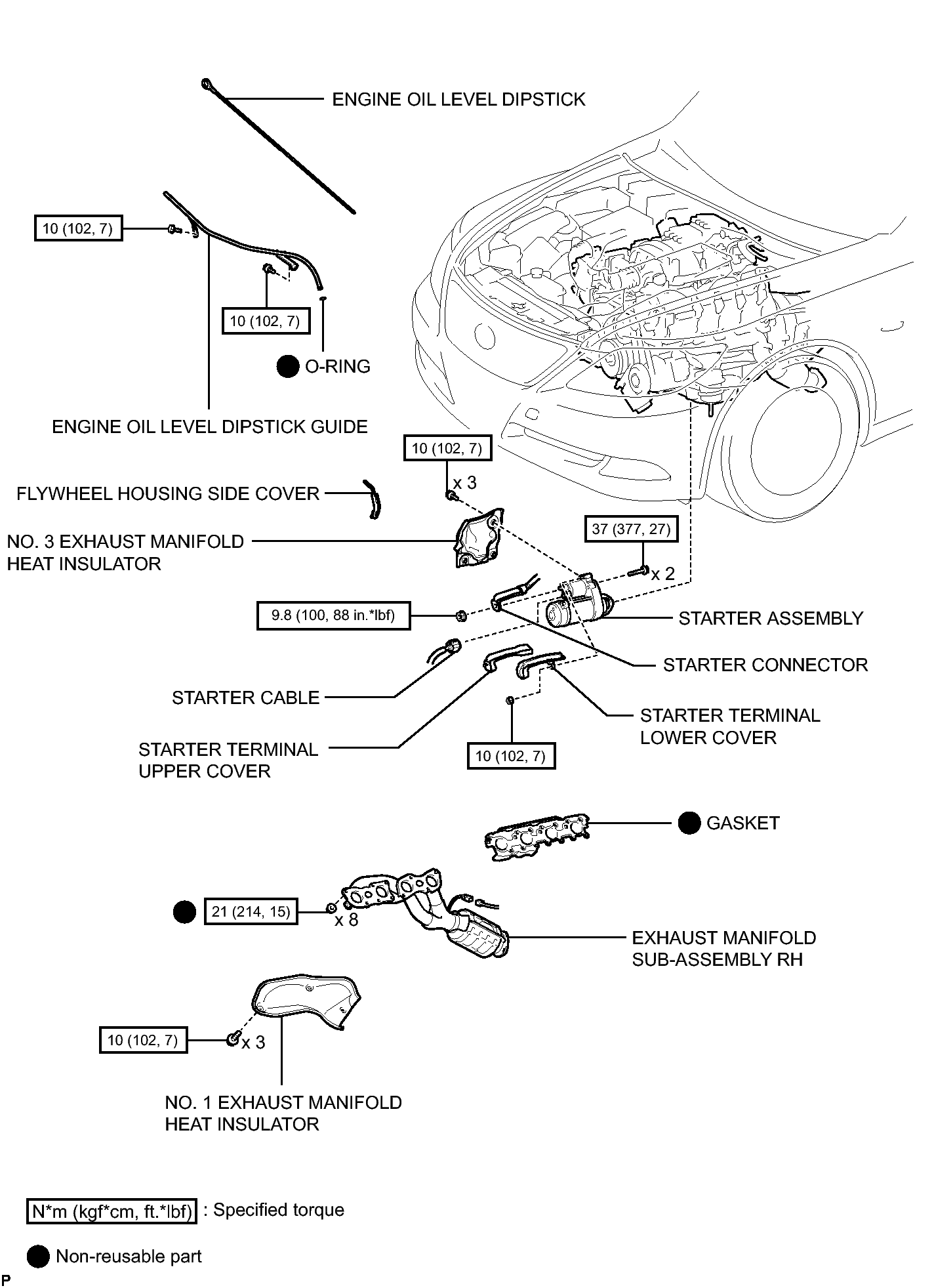

Fig 1: Identifying Starter (For 2WD) Replacement Components With Torque Specifications (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Identifying Starter (For 2WD) Replacement Components (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

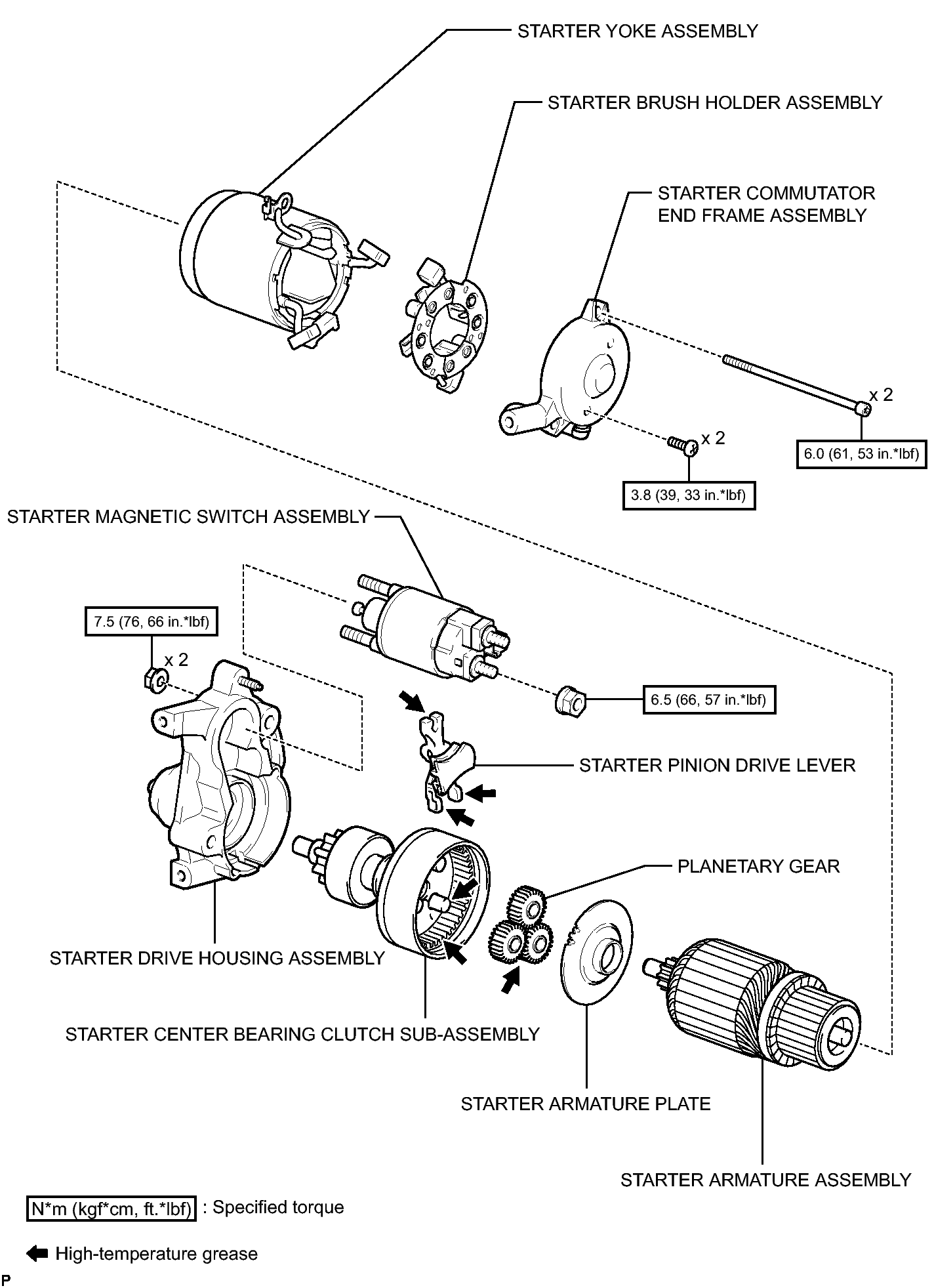

Fig 1: Identifying Starter (For 2WD) Replacement Components With Torque Specifications (4 Of 6)

Fig 1: Identifying Starter (For 2WD) Replacement Components With Torque Specifications (5 Of 6)

Fig 1: Identifying Starter (For 2WD) Replacement Components With Torque Specifications (6 Of 6)
