Heated Steering Wheel Controller: Components: Illustration

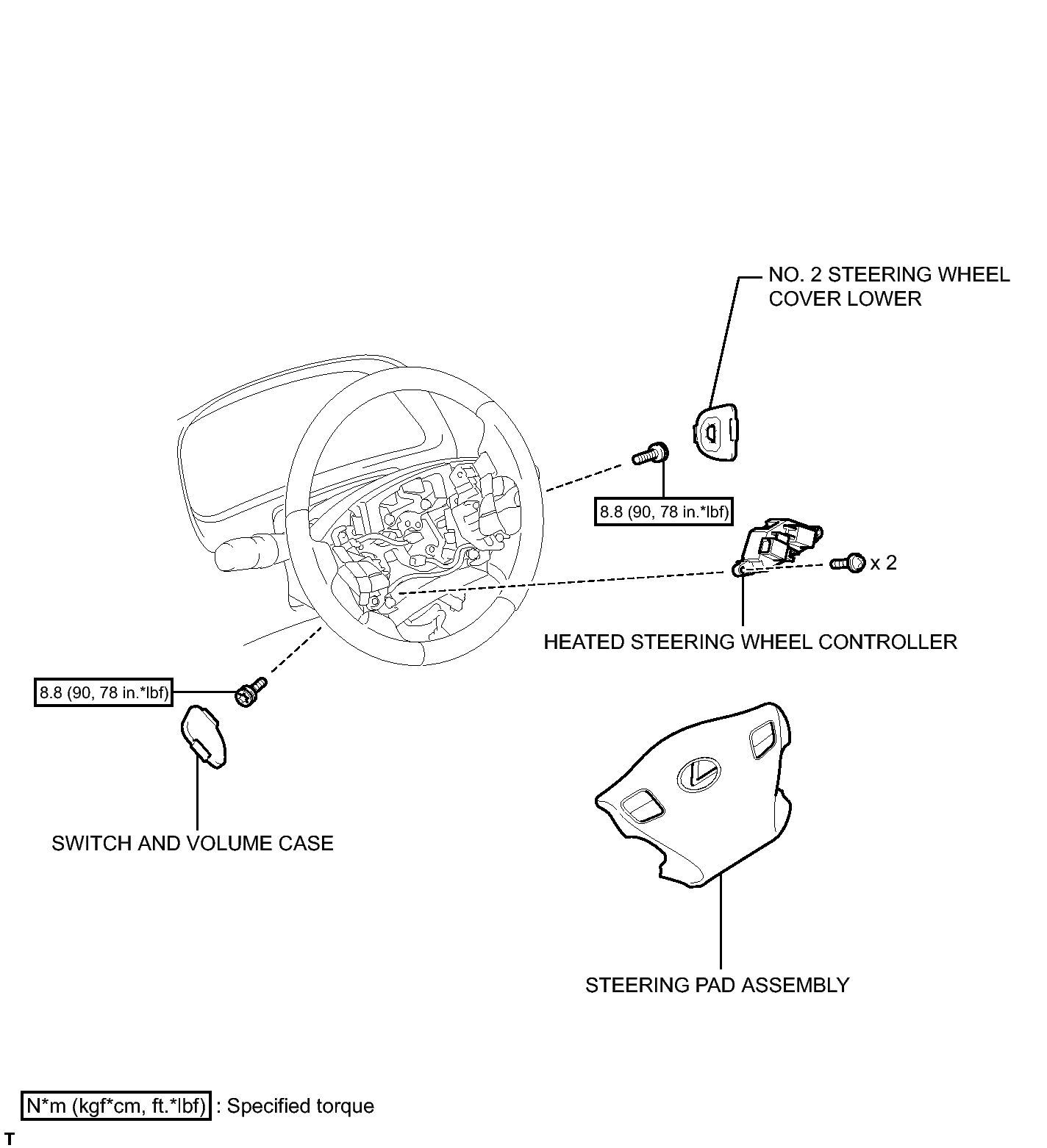

Fig 1: Identifying Heated Steering Wheel Controller Replacement Components With Torque Specifications
GTY289220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
