Transfer Assembly: Inspection: Inspection

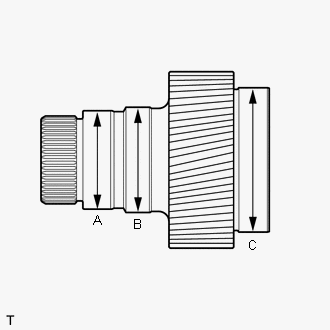

INSPECT TRANSFER FRONT DRIVE GEAR ASSEMBLY
1. Using a micrometer, measure the outer diameter of the drive gear journal surface at the locations indicated.
  Standard outer diameter

  Journal A

  50.981 to 51.000 mm (2.0072 to 2.0078 in.)

  Journal B

  54.461 to 54.480 mm (2.1442 to 2.1448 in.)

  Journal C

  74.461 to 74.480 mm (2.9316 to 2.9322 in.)

  Minimum outer diameter

  Journal A

  50.981 mm (2.0072 in.)

  Journal B

  54.461 mm (2.1442 in.)

  Journal C

  74.461 mm (2.9316 in.)
  - If the outer diameter is less than the minimum, replace the drive gear.

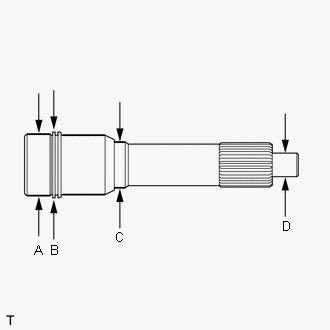

INSPECT TRANSFER INPUT SHAFT
1. Using a micrometer, measure the outer diameter of the transfer input shaft journal surface at the locations indicated.
  Standard outer diameter

  Journal A

  47.975 to 48.000 mm (1.8888 to 1.8897 in.)

  Journal B

  50.750 to 50.870 mm (1.9981 to 2.0027 in.)

  Journal C

  34.961 to 34.986 mm (1.3765 to 1.3774 in.)

  Journal D

  17.980 to 18.000 mm (0.7079 to 0.7086 in.)

  Minimum outer diameter

  Journal A

  47.975 mm (1.8888 in.)

  Journal B

  50.750 mm (1.9981 in.)

  Journal C

  34.961 mm (1.3765 in.)

  Journal D

  17.980 mm (0.7079 in.)
  - If the outer diameter is less than the minimum, replace the transfer input shaft.
