Alignment
SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA
MEASURE VEHICLE HEIGHT (w/o Air Suspension) 2WD
Measuring points:
A
Ground clearance of front wheel center
B
Ground clearance of front center position of front No. 2 suspension lower arm assembly front bush installation
C
Ground clearance of pit center of the attachment rear suspension arm
D
Ground clearance of rear wheel center

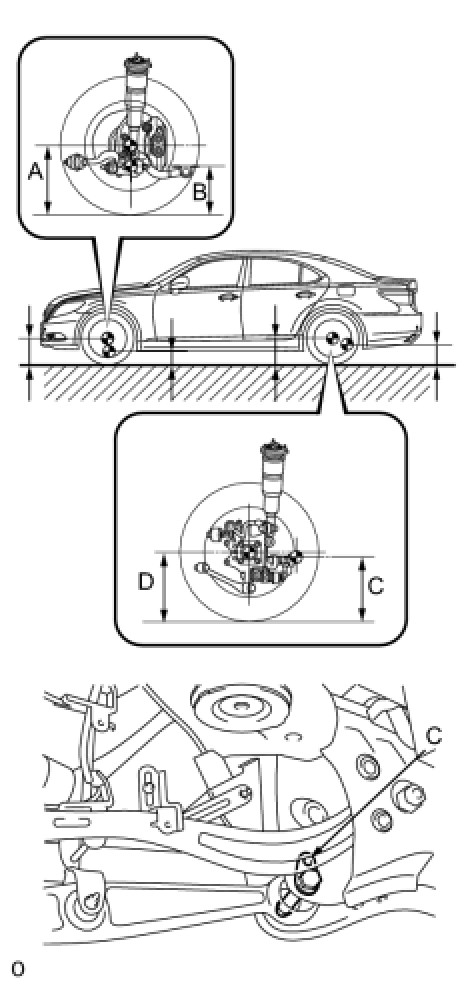

MEASURE VEHICLE HEIGHT (w/ Air Suspension) 2WD
Measuring points:
A
Ground clearance of front wheel center
B
Ground clearance of front center position of front No. 2 suspension lower arm assembly front bush installation
C
Ground clearance of pit center of the attachment rear suspension arm
D
Ground clearance of rear wheel center

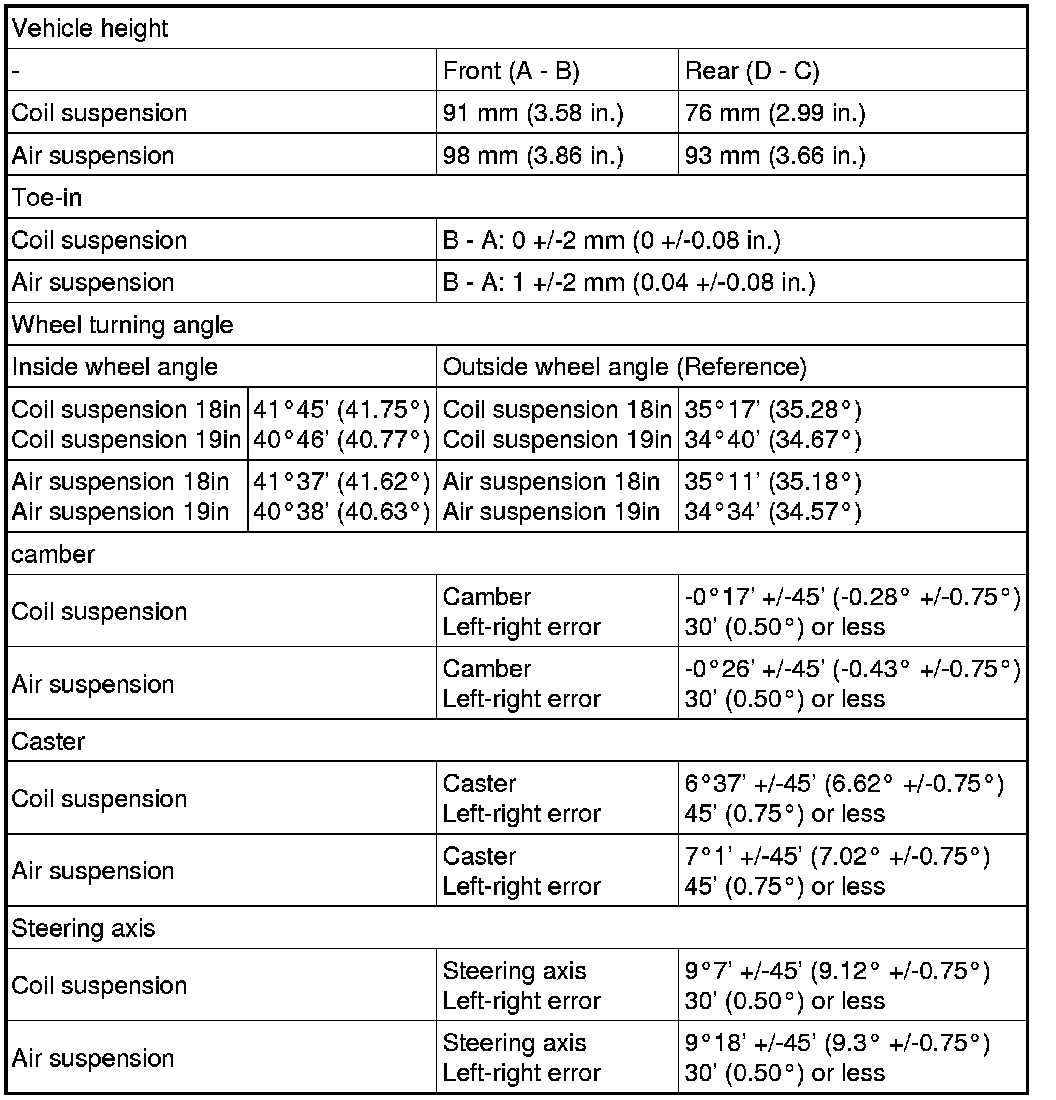

Front wheel alignment (for 2WD)
Rear wheel alignment

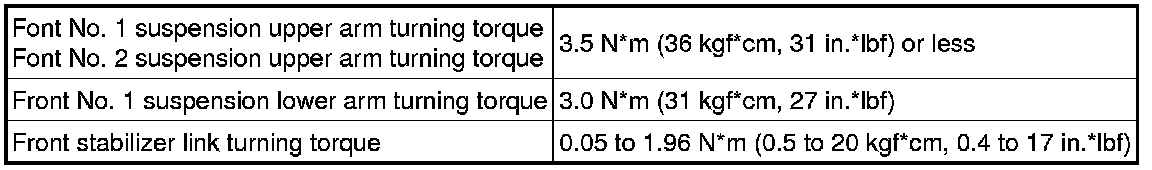

Front suspension (for 2WD)
Rear suspension
