Torque Specifications





SERVICE SPECIFICATIONS: BRAKE CONTROL: TORQUE SPECIFICATIONS

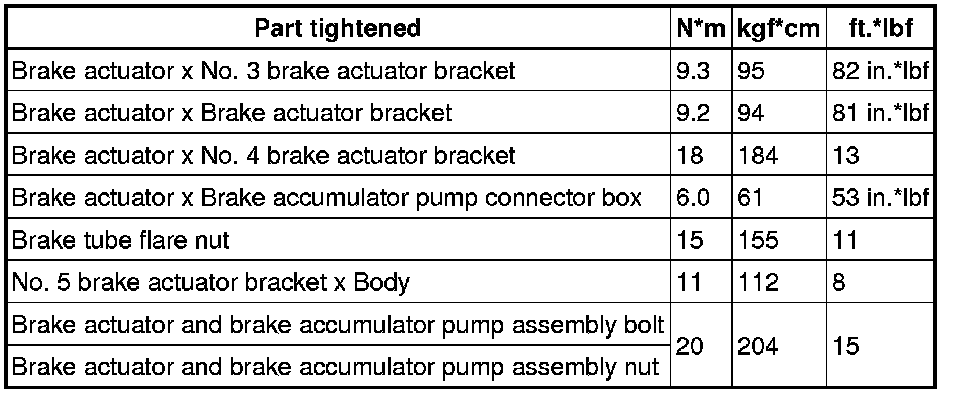

Brake Actuator

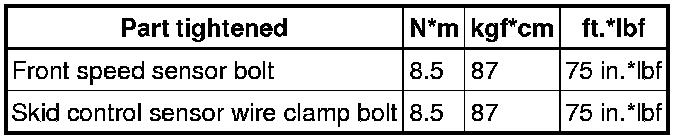

Front Speed Sensor (for 2WD)





Front Speed Sensor (for AWD)

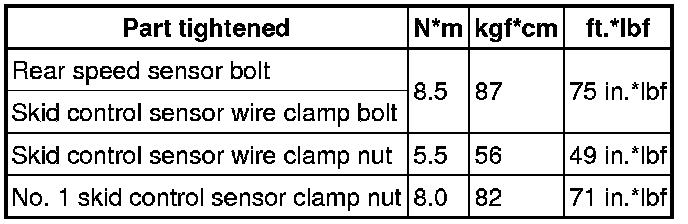

Rear speed sensor





Yaw Rate Sensor

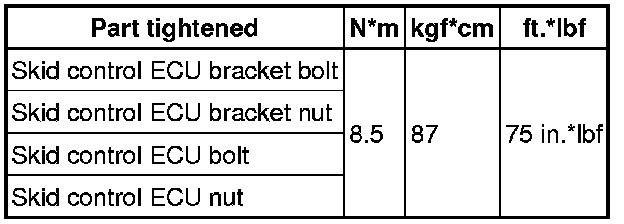

Skid Control ECU

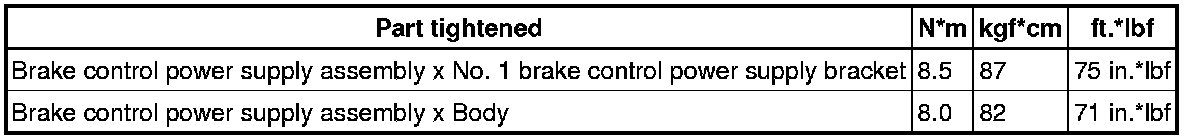

Brake Control Power Supply





Brake Pedal Stroke Sensor
