Fuel Pressure Regulator: Disassembly: Disassembly

REMOVE FUEL SENDER GAUGE ASSEMBLY
1. Disconnect the fuel sender gauge connector from the fuel suction plate.

  Fig 1: Identifying Fuel Sender Gauge Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Press down on the sender gauge claw labeled A. Then slide the sender gauge upward.
  NOTE: Do not touch the sender plate's resistance plate area or the contact area.
REMOVE FUEL SUCTION PLATE SUB-ASSEMBLY
1. Disconnect the fuel pump connector from the fuel suction plate.

  Fig 2: Identifying Fuel Pump Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using needle nose pliers, remove the E-ring.

  Fig 3: Identifying E-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the fuel suction plate and spring from the sub-tank.
REMOVE FUEL FILTER
1. Disengage the 2 claws and remove the filter from the sub-tank.

  Fig 4: Identifying Fuel Filter Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE JET PUMP
1. Using a screwdriver with the tip taped, remove the jet pump from the sub-tank.

  Fig 5: Identifying Jet Pump From Sub-Tank
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the jet pump.

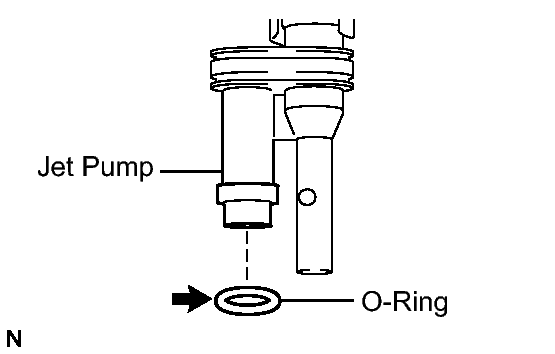

  Fig 6: Identifying Jet Pump O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PRESSURE REGULATOR ASSEMBLY
1. Detach the 2 claws of the fuel filter and remove the cap.

  Fig 7: Identifying Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the fuel pressure regulator from the fuel filter.
3. Remove the 2 O-rings from the pressure regulator.
