Parts Location: Illustration

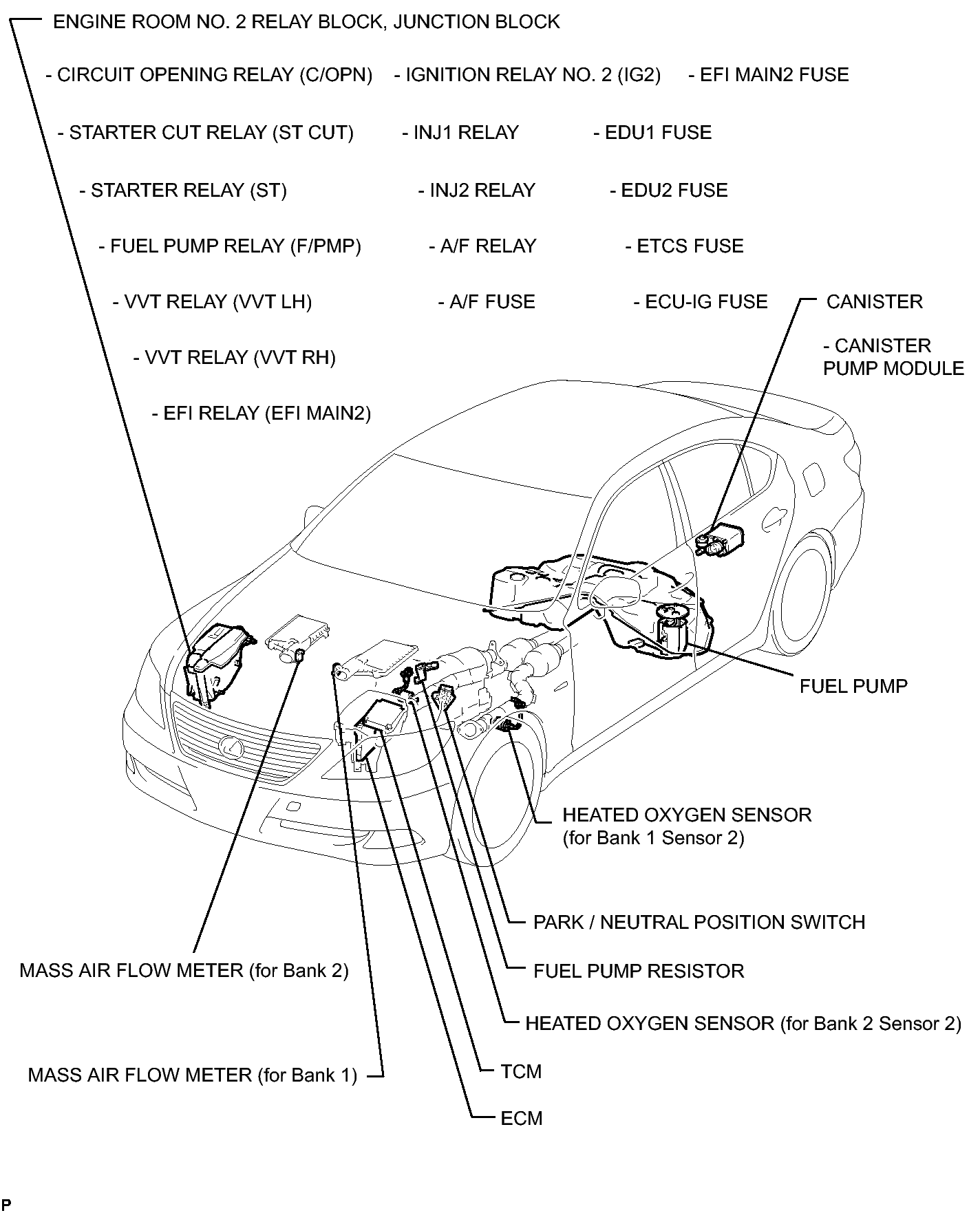

Fig 1: Identifying SFI System Components Location (1 Of 6)
GTY262222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

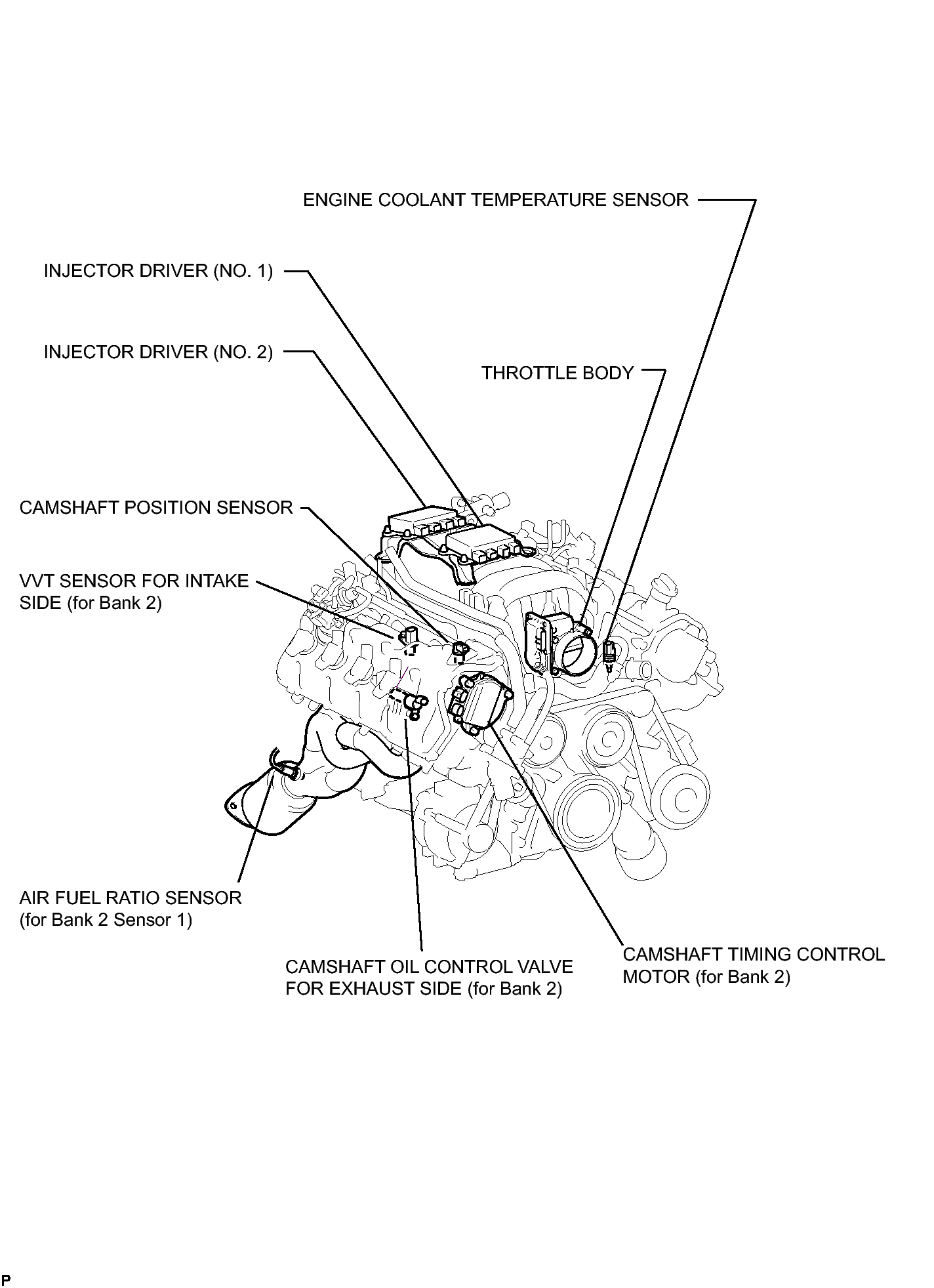

Fig 1: Identifying SFI System Components Location (2 Of 6)
GTY288088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

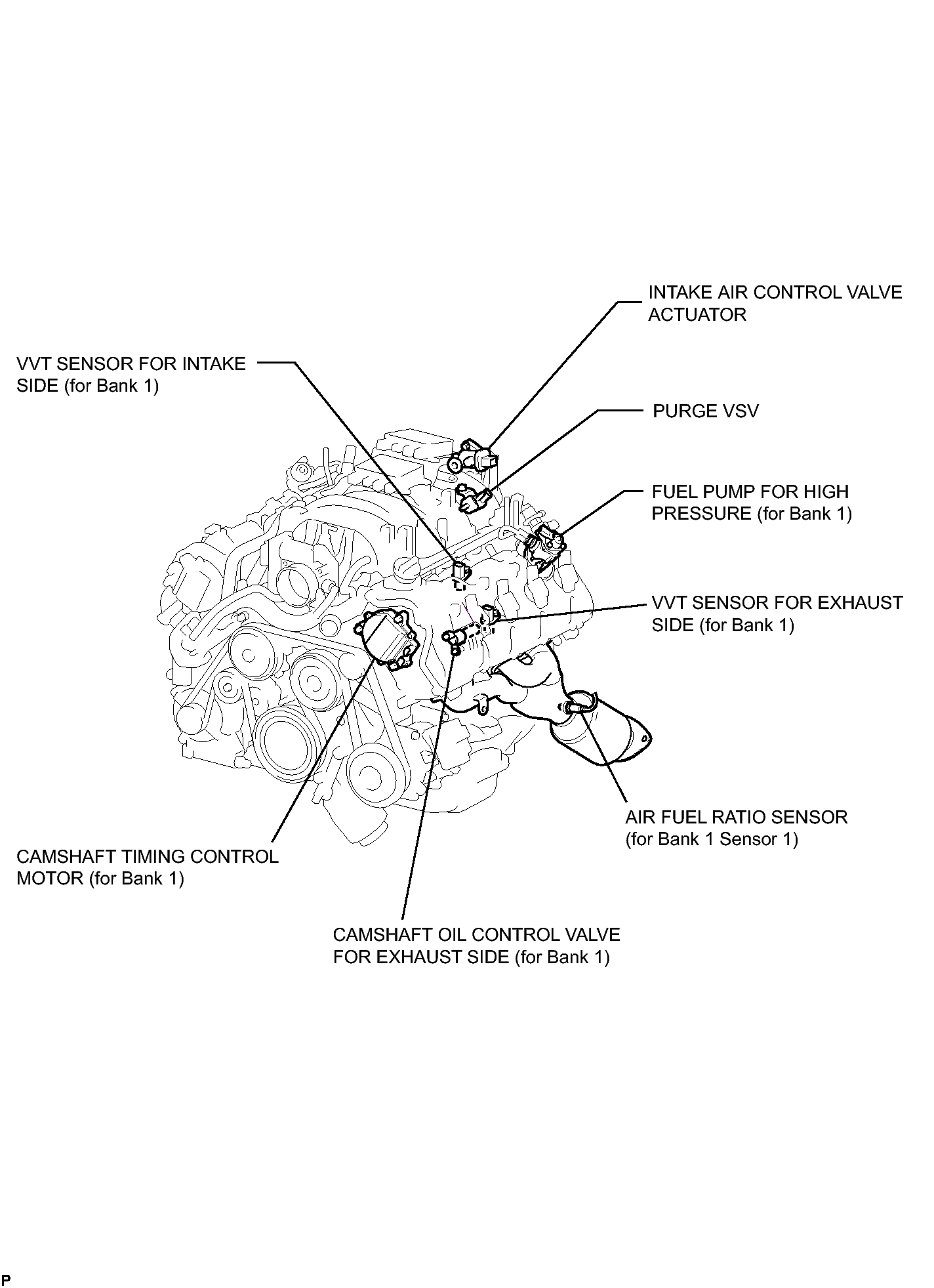

Fig 1: Identifying SFI System Components Location (3 Of 6)
GTY288089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

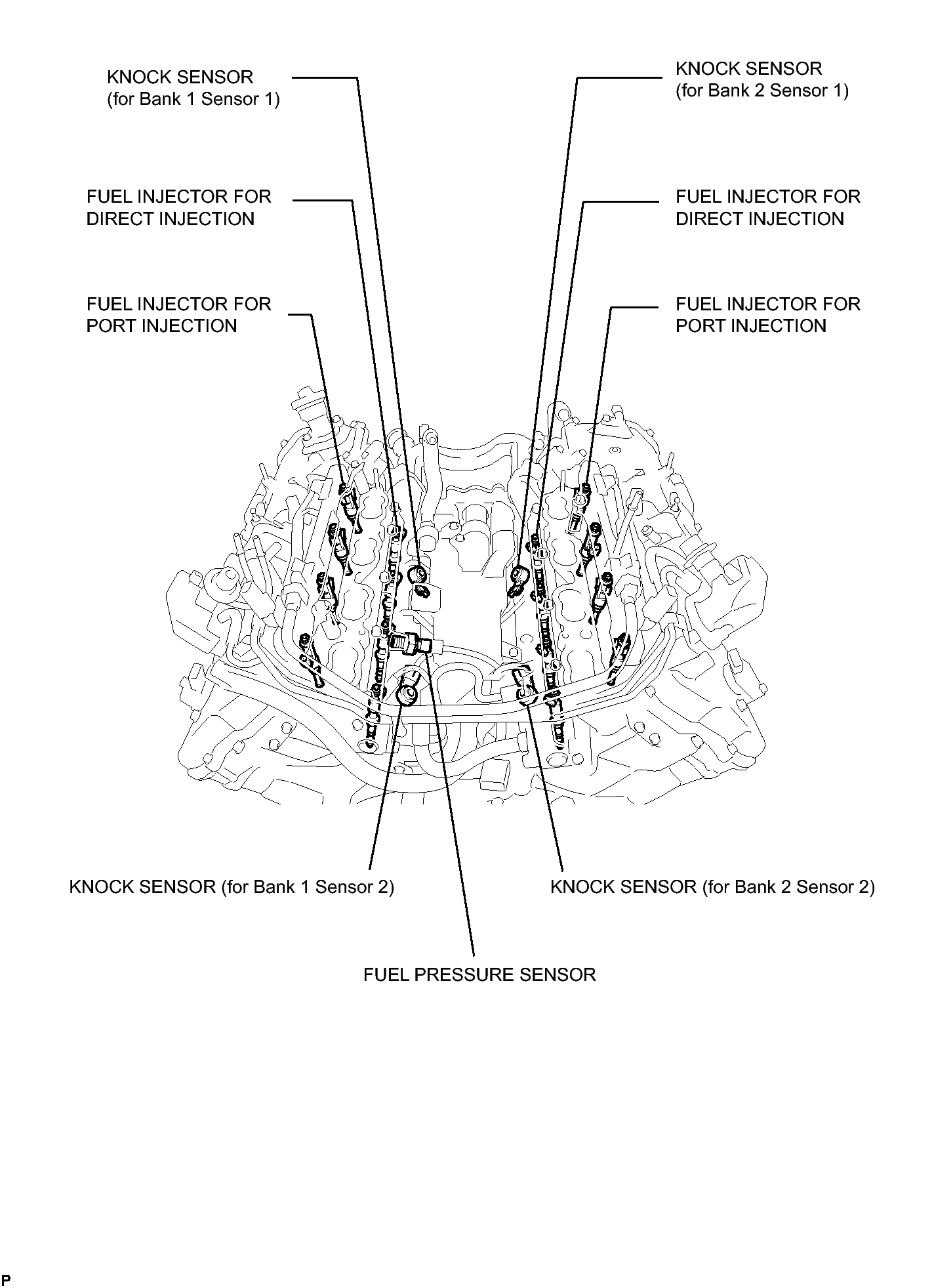

Fig 1: Identifying SFI System Components Location (4 Of 6)
GTY283066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

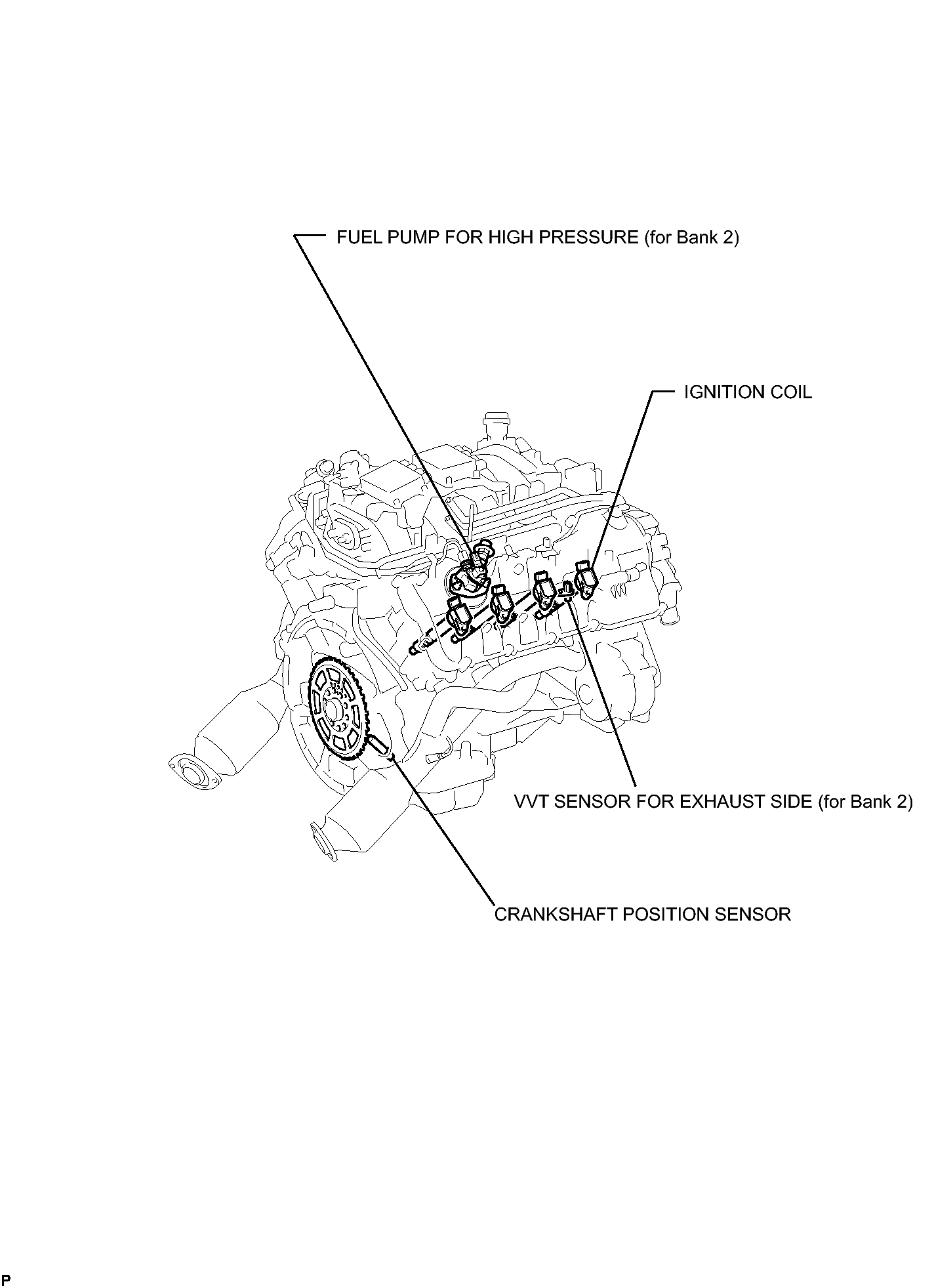

Fig 1: Identifying SFI System Components Location (5 Of 6)
GTY254976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

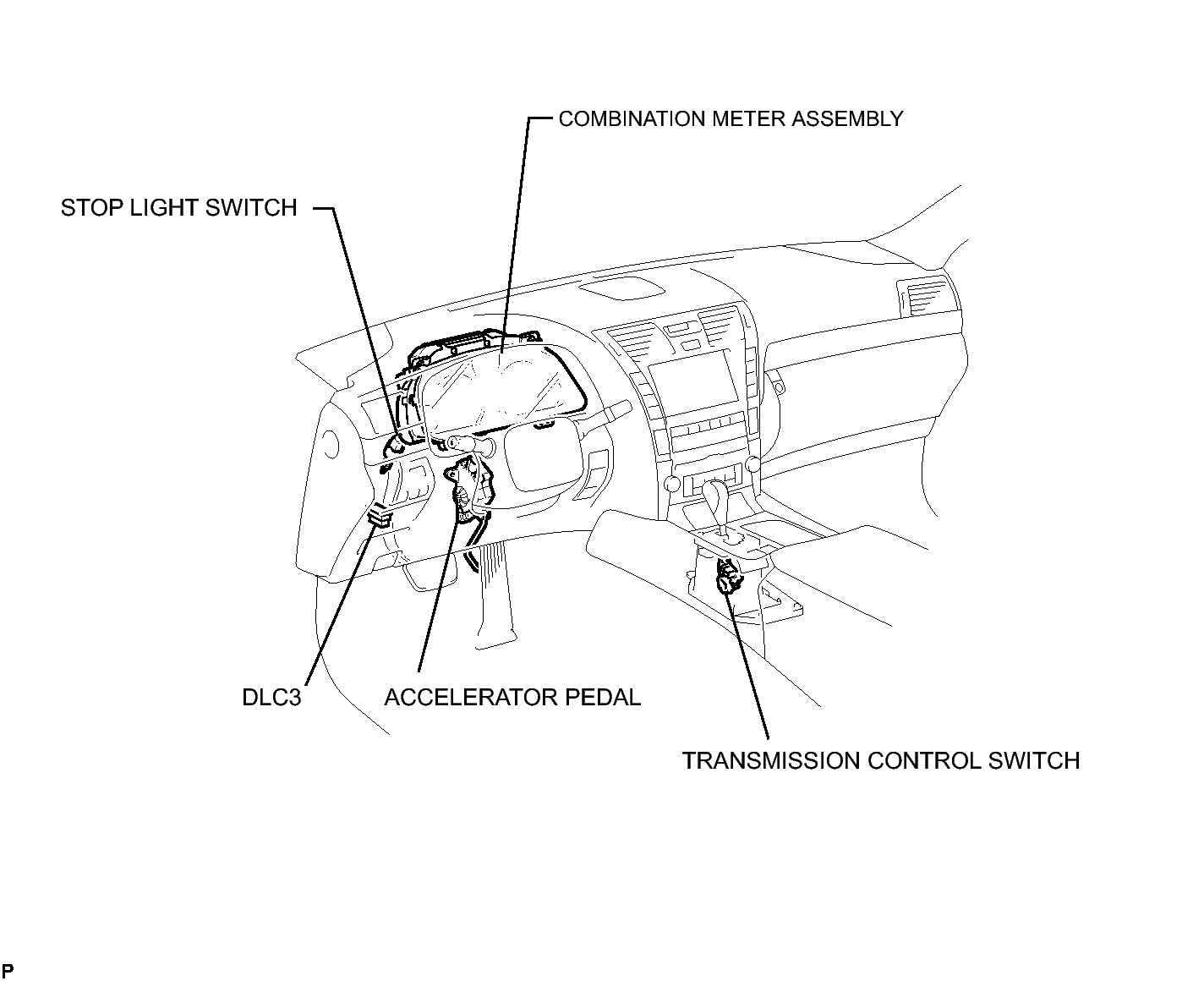

Fig 1: Identifying SFI System Components Location (6 Of 6)
GTY288185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
