Heated Steering Wheel Controller: Installation: Installation

INSTALL HEATED STEERING WHEEL CONTROLLER
1. Install the controller with the 2 screws and connect the 2 connectors.

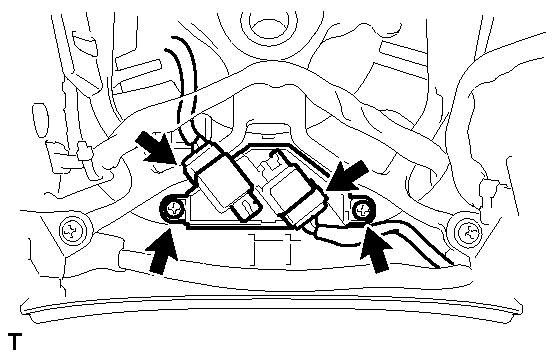

  Fig 1: Identifying Steering Wheel Heater Controller Connectors And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING PAD ASSEMBLY See step 2
INSTALL NO. 2 STEERING WHEEL COVER LOWER See step 3
INSTALL SWITCH AND VOLUME CASE See step 4
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSTALL COWL TOP VENTILATOR LOUVER RH . Refer to INSTALLATION - Step 11
CHECK SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
PERFORM INITIALIZATION
Refer to INITIALIZATION

NOTE: Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
