Engine Switch: Installation: Installation

  1. INSTALL ENGINE SWITCH
    1. Attach the 2 claws to install the switch.
    2. Connect the switch connector.

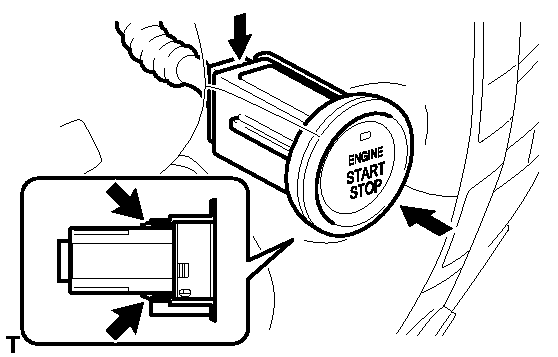

      3. Fig 1: Identifying Engine Switch Connector Claws
      GTY283576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY  . Refer to INSTALLATION - Step 25
  3. INSTALL NO. 1 INSTRUMENT CLUSTER MOLDING  . Refer to INSTALLATION - Step 27
  4. INSTALL INSTRUMENT SIDE PANEL LH  . Refer to INSTALLATION - Step 28
  5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  6. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 11
  7. PERFORM INITIALIZATION
    1. Perform initialization. Refer to INITIALIZATION .
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
