Brake Actuator: Components: Illustration

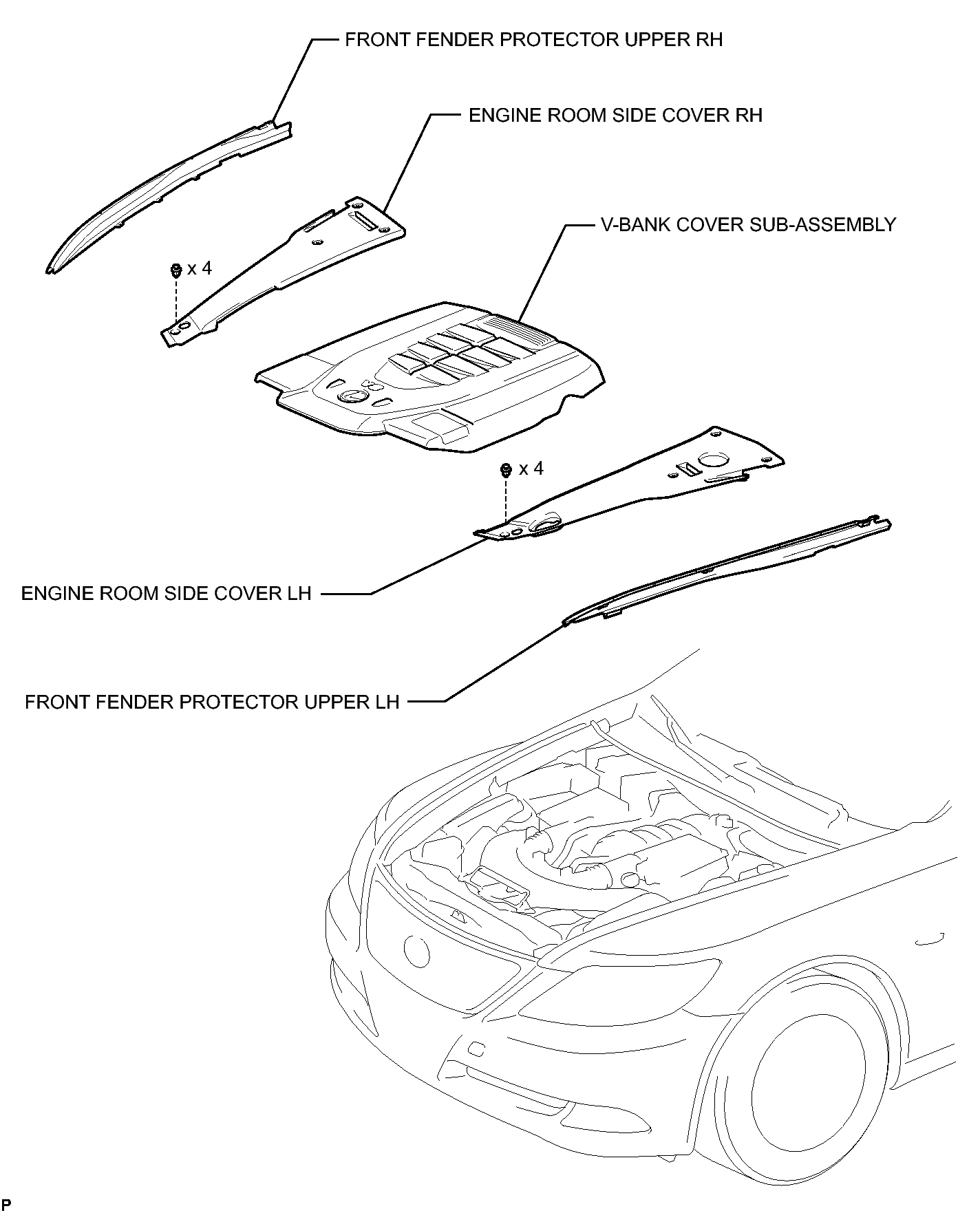

Fig 1: Identifying Brake Actuator Replacement Components (1 of 5)
GTY289354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

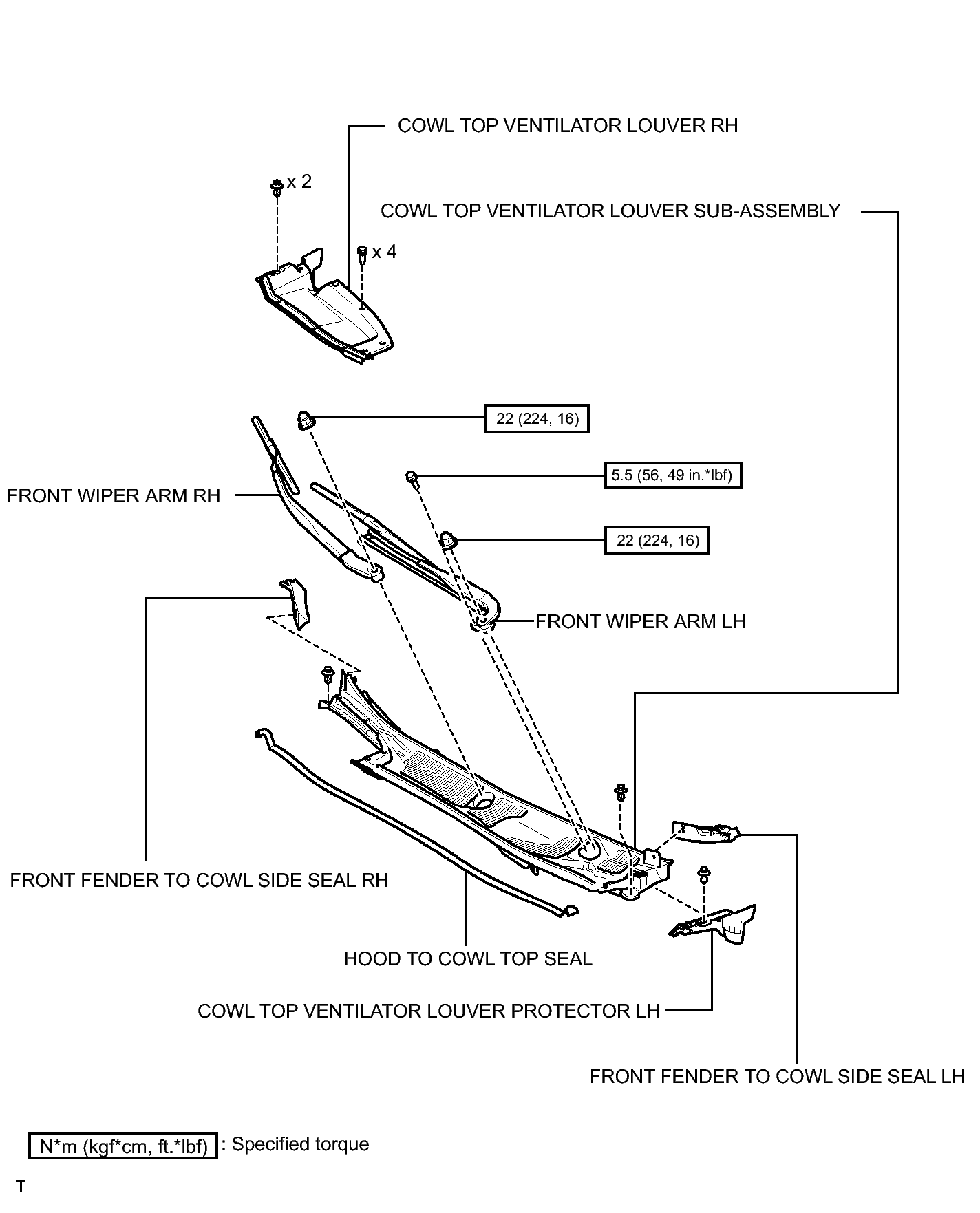

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (2 Of 5)
GTY289355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (3 Of 5)
GTY274804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

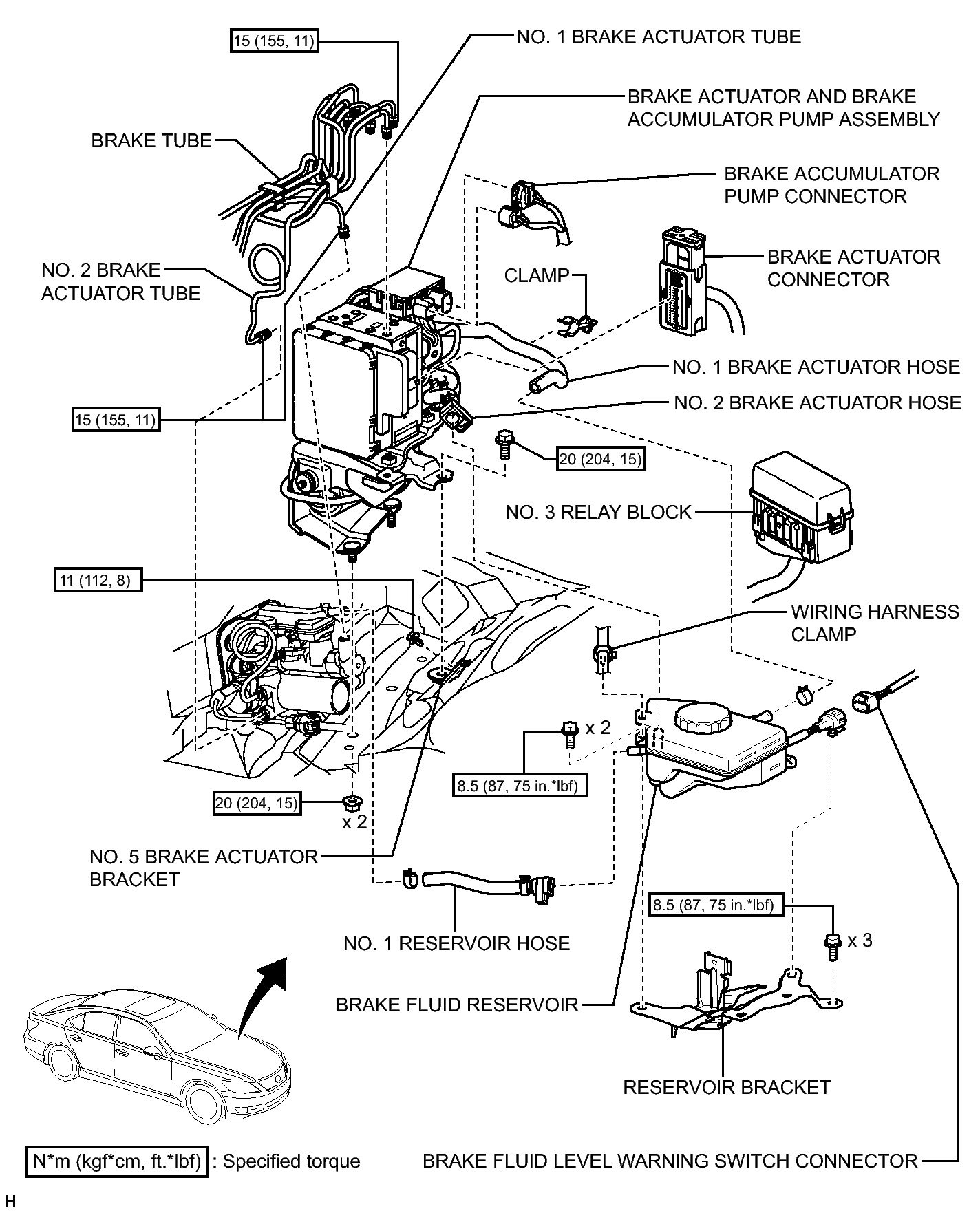

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (4 Of 5)
GTY264313Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

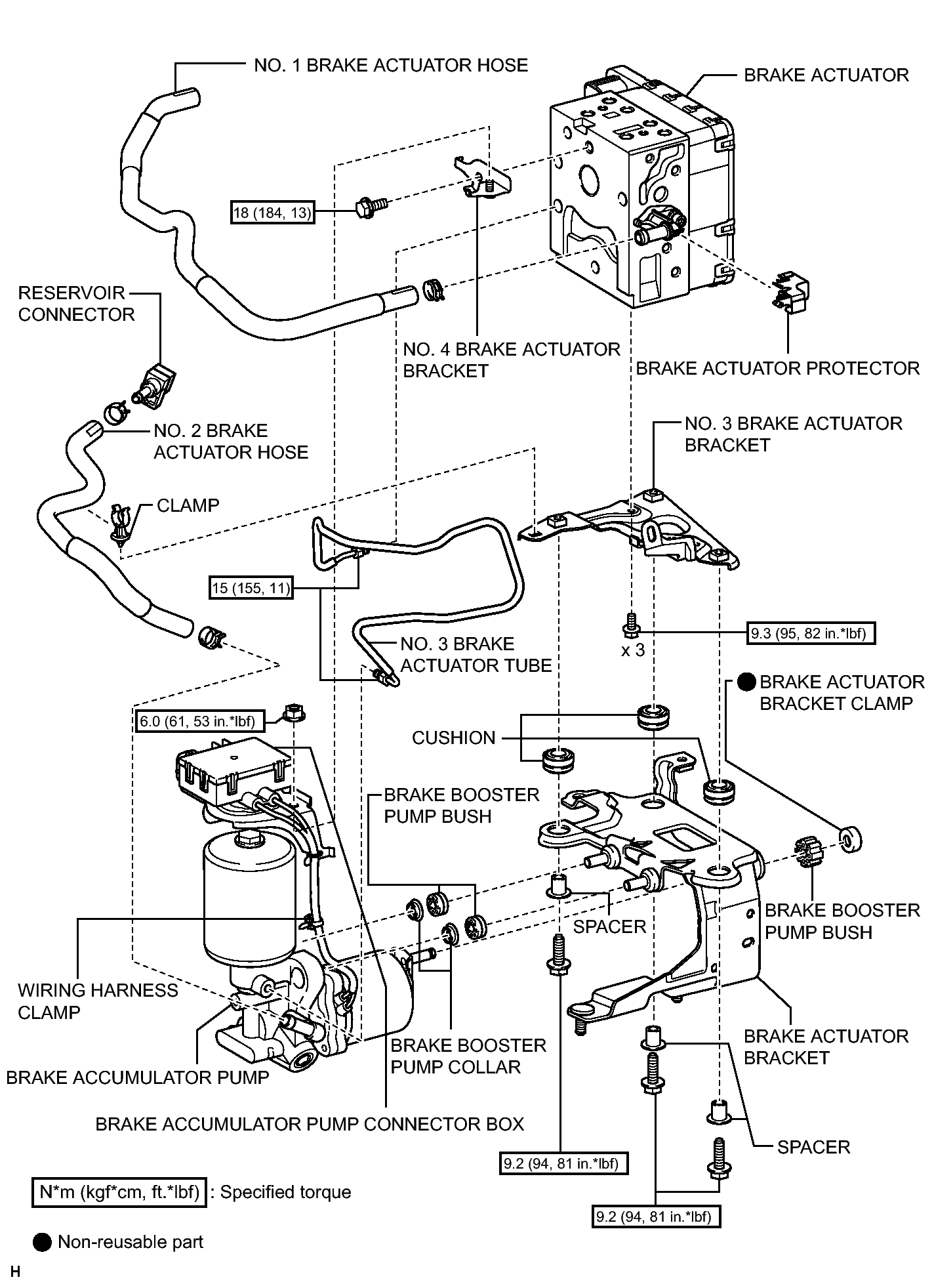

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specifications (5 Of 5)
GTY261199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
